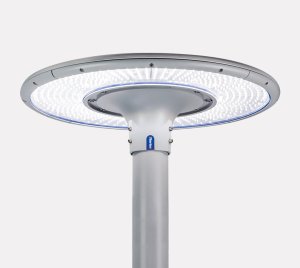

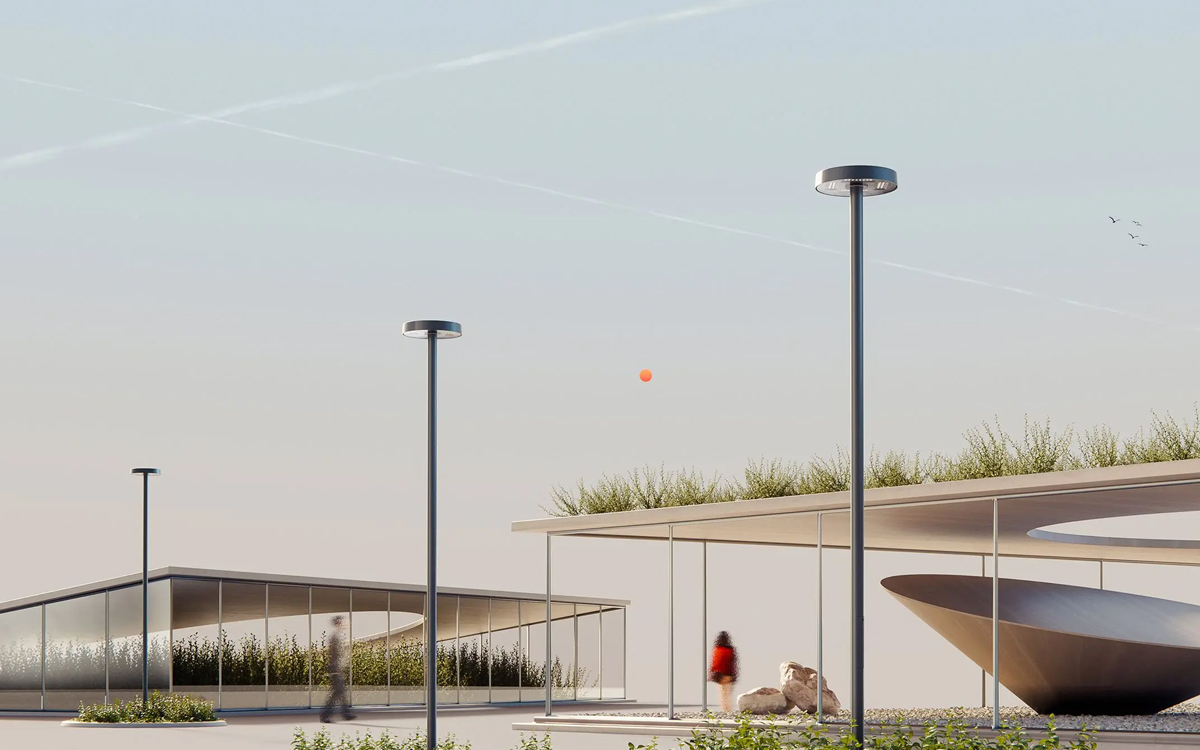

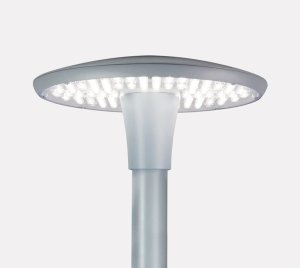

The CN post top luminaire is a highly adaptable lighting solution designed to blend seamlessly into any urban environment. Its clean, round form and consistent design language ensure it suits a variety of architectural contexts, while offering the flexibility of two or four light unit configurations. Whether illuminating plazas, streets, or pedestrian pathways, CN delivers both aesthetic appeal and high-performance functionality.
Available in 500 mm and 600 mm diameters, the luminaire’s modern circular design is ideal for applications where a rounded visual profile is desired. Its robust construction includes low-copper content housing (≤ 0.08%), with the option for enhanced corrosion protection using ewoECP, ensuring longevity even in challenging environments. The fixture’s design supports up to eight LED modules with 16 LEDs each, positioned near the edges to deliver light precisely where needed, in any direction, using a wide range of optical distributions.
The CN luminaire family supports both the A–Series and T–Series configurations, offering tailored lighting performance based on project demands. The A–Series allows a maximum luminous flux of 19,700 lumens, with current feeds ranging from 200 to 500 mA, depending on ambient conditions. It supports color temperatures from 2,200 K to 5,700 K and CRI levels up to ≥ 80, with optional variants for higher color rendering. The T–Series offers up to 7,300 lumens at a current feed of up to 225 mA and features tuneable white color temperatures from 2,200 K to 6,500 K with CRI ≥ 80, or CRI ≥ 90 upon request.
Further customization is possible with factory-installed ewoLightLayers, including options like integrated RBL (backlight shielding) and AGR (anti-glare protection), helping to manage light spill and enhance comfort. Thanks to the modular nature of the CN system and the A–Series' nearly 1.8 billion possible lens combinations, designers can achieve highly specific and effective lighting schemes for any setting. Additional adaptation tools, such as ewoLightTile and further ewoLightLayers, enable even more refined lighting control.
Smart lighting integration is built into the CN family, with DALI compatibility and support for individual or group control via internal or external nodes. The luminaire can also be equipped with an external Zhaga interface for integration into advanced smart city infrastructure, enabling scalable, intelligent lighting networks that are responsive to modern urban needs.
