The IOTA ILBLP CP10 HE SD NP is a UL 924 Listed emergency LED driver that enables a single LED fixture to operate in both normal and emergency modes. When a power failure occurs, the unit automatically transfers power from the normal AC driver to its internal battery supply, allowing the fixture to operate in emergency mode for a full 90 minutes. This ensures continuous, code-compliant lighting performance during power outages without requiring separate emergency luminaires.

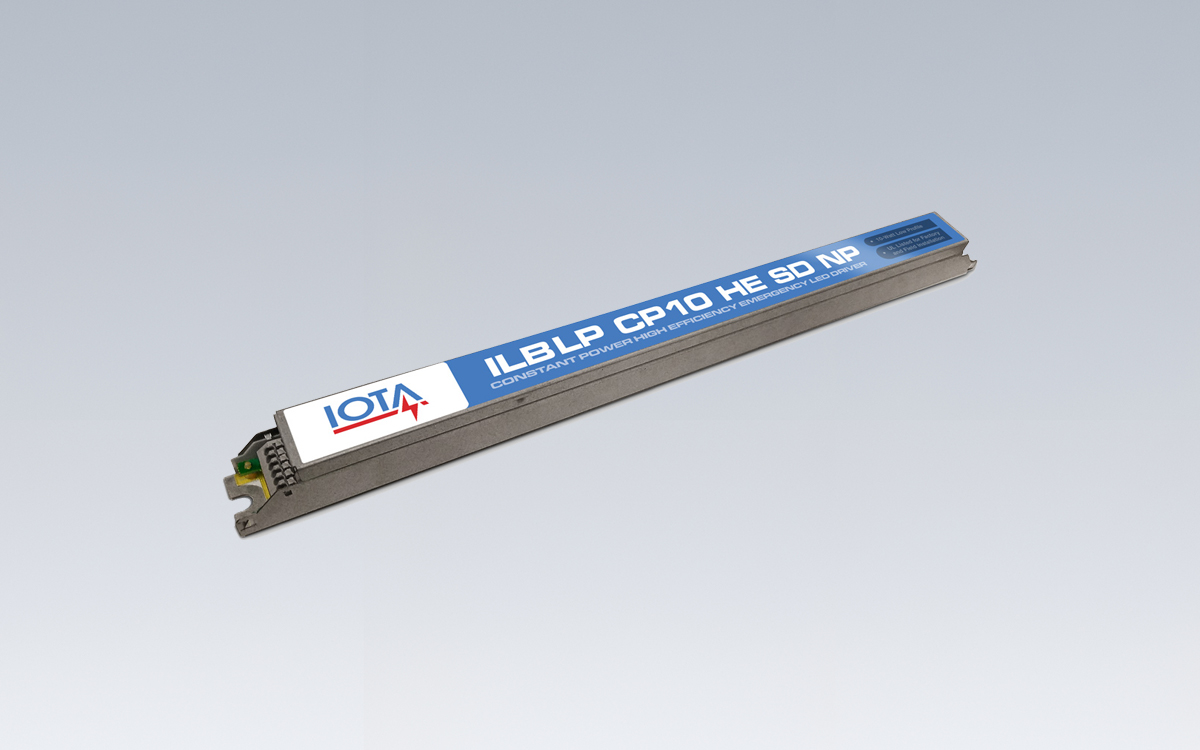

Built within a narrow-profile galvanized steel enclosure, the ILBLP CP10 HE SD NP integrates a battery, charger, and converter circuit, allowing flexible installation within fixture channels or wireways. The Constant Power design maintains a consistent wattage output to the connected LED array even as battery voltage decreases, ensuring uniform light levels for the duration of the emergency runtime. This constant wattage delivery eliminates illumination drop-off, maintaining reliable visual performance throughout the emergency period.
The driver utilizes lithium battery technology, offering a reduced form factor and longer life expectancy compared to traditional battery chemistries. Its minimum mounting footprint makes it well-suited for modern, low-profile luminaires without compromising power output or runtime capability. Installation is streamlined through poke-in wire terminals, which minimize wiring complexity and help reduce excess wire clutter within the fixture channel.
The ILBLP CP10 HE SD NP incorporates self-diagnostic and self-testing functionality as standard. The built-in system automatically performs monthly and annual testing in accordance with NFPA 101 Life Safety Code requirements, verifying battery condition, charging function, and emergency operation readiness. Visual indicators on the driver provide real-time status updates for system health and compliance monitoring.
This model includes a single-piece TBTS test switch and charge indicator accessory kit and employs AC-Activate circuitry that simplifies installation by eliminating the need for a manual battery connection during setup. The unit is suitable for use in both switched and unswitched fixtures and is compliant with NEC, IBC, and Life Safety Code emergency lighting requirements.
Additional certifications and protections include CA Title 20 compliance, RoHS conformity, and suitability for damp locations, as well as recessed Type IC and enclosed and gasketed luminaires. The auto-sense 10–60VDC output is UL 1310 Certified and Output Class 2 compliant, ensuring safe operation across a wide range of LED applications. Backed by a 5-year warranty, the ILBLP CP10 HE SD NP combines reliability, compactness, and intelligent functionality to meet modern emergency lighting standards with efficiency and ease.
