The narrow 1.5-inch linear wall-mount LED luminaire offers a refined balance of minimalist design and powerful performance. Constructed from extruded aluminum with cast aluminum end caps, the fixture is available in both individual units and continuous runs configured in one-inch increments. This flexibility allows it to adapt seamlessly to a wide range of architectural layouts. A frosted acrylic lens provides smooth, uninterrupted light without visible pixels or shadows, while lens options—including Flush, Asymmetric, and Pop-Down—ensure tailored light distribution for diverse applications. For projects that demand an elevated aesthetic, lit end caps extend the glow to the very edges of the luminaire, creating a seamless line of light. To further complement architectural environments, the fixture is offered with The Naturals, a series of nature-inspired finishes that bring biophilic beauty into interior spaces.

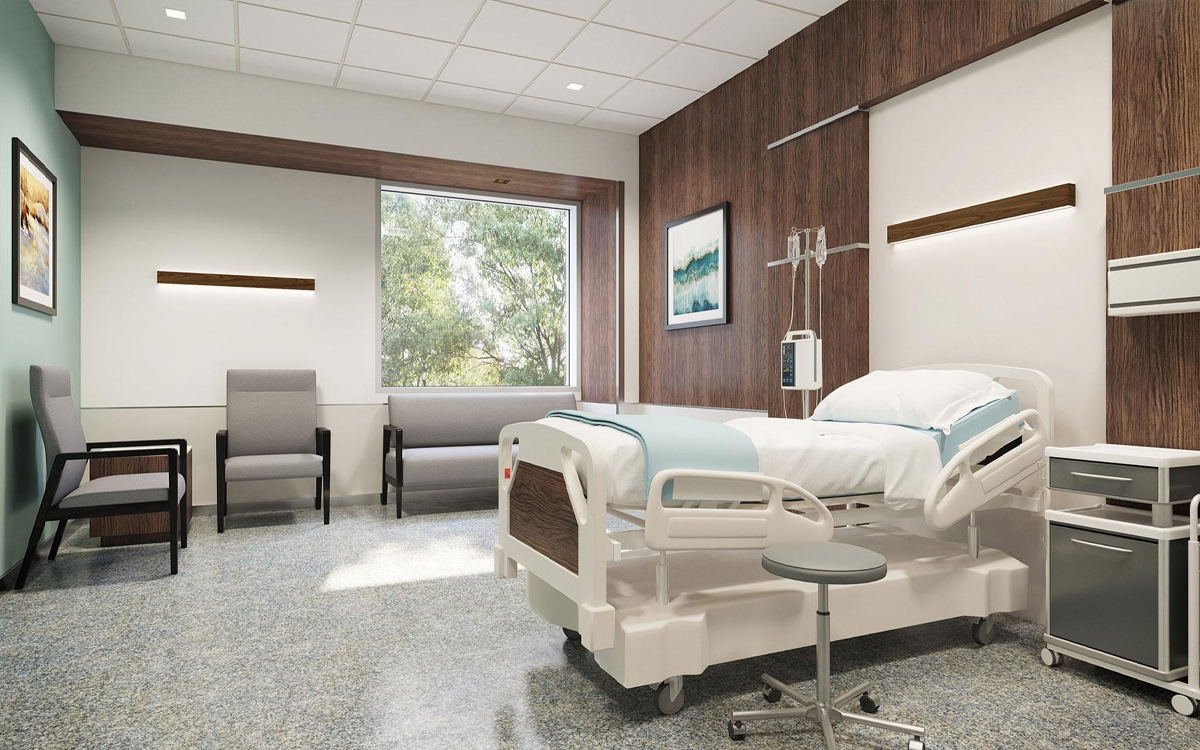

At the core of the system is a proprietary linear LED module that incorporates premium LEDs engineered for superior thermal management and long life. LEDs are strategically placed to deliver a uniform appearance, with excellent color accuracy at less than 3 SDCM. Standard options include 3000K, 3500K, and 4000K with both 80 and 90 CRI selections. Versions at 3500K and 4000K with CRI above 90 maintain a cyanosis observation index (COI) of 3.3 or less, supporting use in healthcare settings. All LED modules and drivers are replaceable from below, ensuring long-term maintainability.
The luminaire’s optical design uses 22-gauge steel reflectors finished in high reflectance white powder coat, paired with a robust extruded acrylic lens up to eight feet long. Together, these components provide high performance, visual comfort, and uninterrupted linear light. Alignment plates and internal joining mechanisms further simplify installation, keeping runs stable and consistent over time.
Electrical performance is equally advanced. Fixtures are pre-wired with branch circuit wiring and over-molded quick connects to reduce installation time. The standard constant current driver supports 120-277V input and 0-10V dimming, with a power factor greater than 0.9. Multiple dimming systems are available, including Lutron Hi-Lume EcoSystem and DALI, with options down to 1% dimming. PoE compatibility allows integration with Power over Ethernet lighting systems via standard low-voltage wires, though each section requires its own PoE node and feed. Low-voltage options are also available for specialized installations.
Built for durability and longevity, the fixture features polyester powder coating applied over a multi-stage pre-treatment process. It is UL and cUL listed, suitable for dry or damp locations, and designed for indoor use. Lumen maintenance is exceptional, with a reported L70 at greater than 61,000 hours and a calculated L70 life of 470,000 hours. L90 is achieved beyond 61,000 hours with a calculated life of 115,000 hours. For critical applications, an emergency battery option provides 10 watts of output for 90 minutes.
This luminaire is offered in multiple lumen output packages ranging from 125 to 625 lumens per foot, enabling it to meet the demands of both ambient and task lighting in commercial spaces. Configurations are available in patterns such as L-shapes, U-shapes, and rectangles to support creative architectural designs. Its narrow aperture and small profile make it particularly well-suited for offices, conference rooms, reception areas, and private workspaces, where refined lighting contributes to both visual comfort and modern aesthetics.
By combining performance-driven engineering with thoughtful design details, this narrow wall-mounted LED luminaire delivers a versatile solution that integrates beautifully into architectural environments while maintaining energy efficiency, reliability, and design flexibility.
