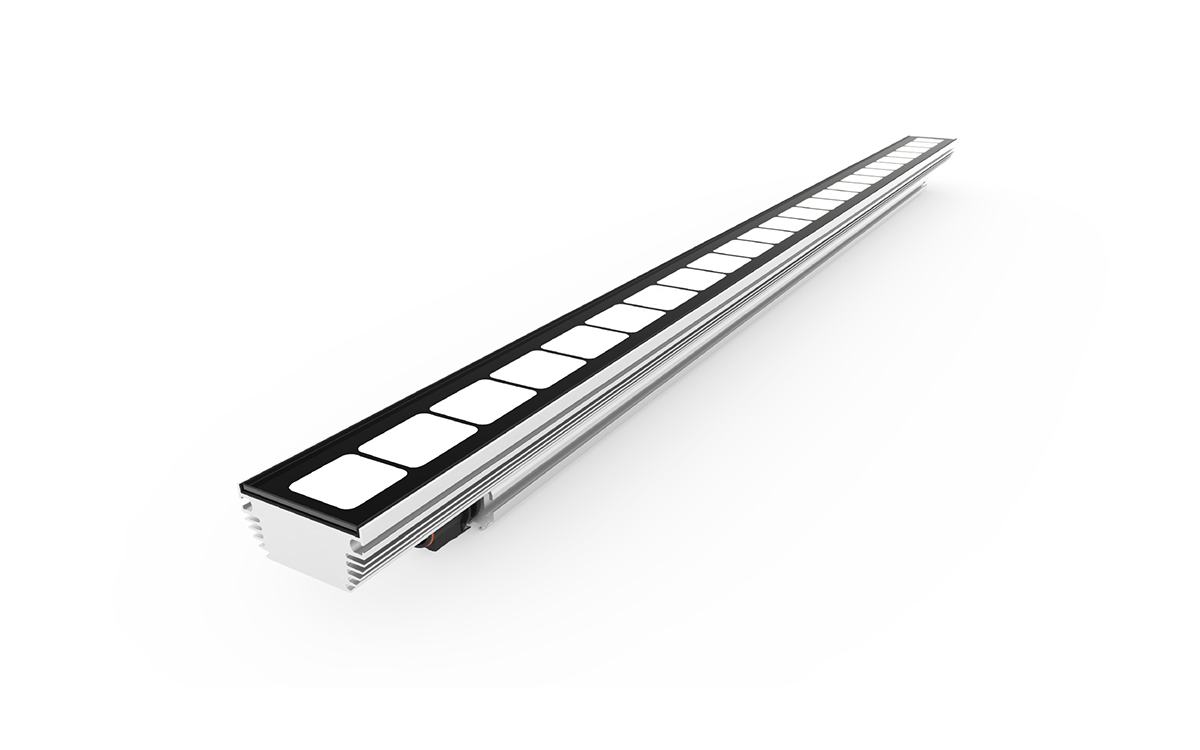

The STR9® GEN3 MONO is a high-performance monochromatic linear LED luminaire designed for exterior wall washing and grazing applications. It delivers up to 3,755 lumens per meter (1,144 lumens per foot) with excellent LED-to-LED color consistency, ensuring uniform and vibrant illumination. The fixture features a compact and lightweight design measuring 71 by 63 millimeters (2.8 by 2.5 inches) and offers versatile mounting options through a dedicated slot, making it adaptable for various installation needs. Each 300mm (1 ft) section of the luminaire is individually addressable, enabling precise lighting control over extended runs.
This luminaire supports multiple voltage options, including AC line voltage, ELV 48VDC, and INFINITY® 380VDC power, which allows for exceptionally long lighting circuits without sacrificing performance. The use of UNIBODY™ Technology—a solid aluminum extrusion design with proprietary sealing—provides industry-leading protection against water ingress, meeting IP66 and IP67 standards. Additionally, the luminaire incorporates a diffusing optical film that creates uniform light immediately adjacent to the fixture, eliminating dark spots and enhancing the visual effect. Its optically clear tempered glass lens resists yellowing over time and contributes to the fixture’s durability.
The STR9® GEN3 MONO is engineered for demanding environments, operating reliably in temperatures ranging from -40°C to +50°C (-40°F to 122°F) and suitable for dry, damp, or wet locations with full humidity tolerance. Its projected lifetime exceeds 100,000 hours (L70 at 25°C), making it a long-lasting solution for architectural lighting. Control options include DMX, DALI, or 0-10V protocols, providing flexibility for integration into sophisticated lighting control systems.
Available in lengths from 300mm (1 ft) up to 1500mm (5 ft), the STR9® MONO offers various power options ranging from 3W to 15W per 300mm segment. The fixture supports a wide range of beam distributions, including symmetrical and elliptical angles from 5° to 100°, and is configurable with multiple LED colors to suit diverse design requirements. Its body comes in black matte, clear matte anodized, or custom colors, complemented by accessories such as adjustable and non-adjustable mounting brackets and glare control louvers.
As part of the STR9® series, this luminaire represents an industry-leading solution for high power and high durability linear wall washing and grazing in exterior architectural lighting. The series features a unique body design with no assembled parts, endcaps, or seams, ensuring exceptional robustness and longevity, even in extreme outdoor environments for a minimum of 10 years. The combination of UNIBODY™ Technology with a time-proven sealing process and electronic hermetic sealing tests guarantees a virtually maintenance-free, high-end LED luminaire. Flexible mounting options—including standard surface mount brackets as well as vertical, horizontal, or ceiling cantilever mounts—allow for precise positioning and optimal lighting trajectories tailored to each project’s needs.
