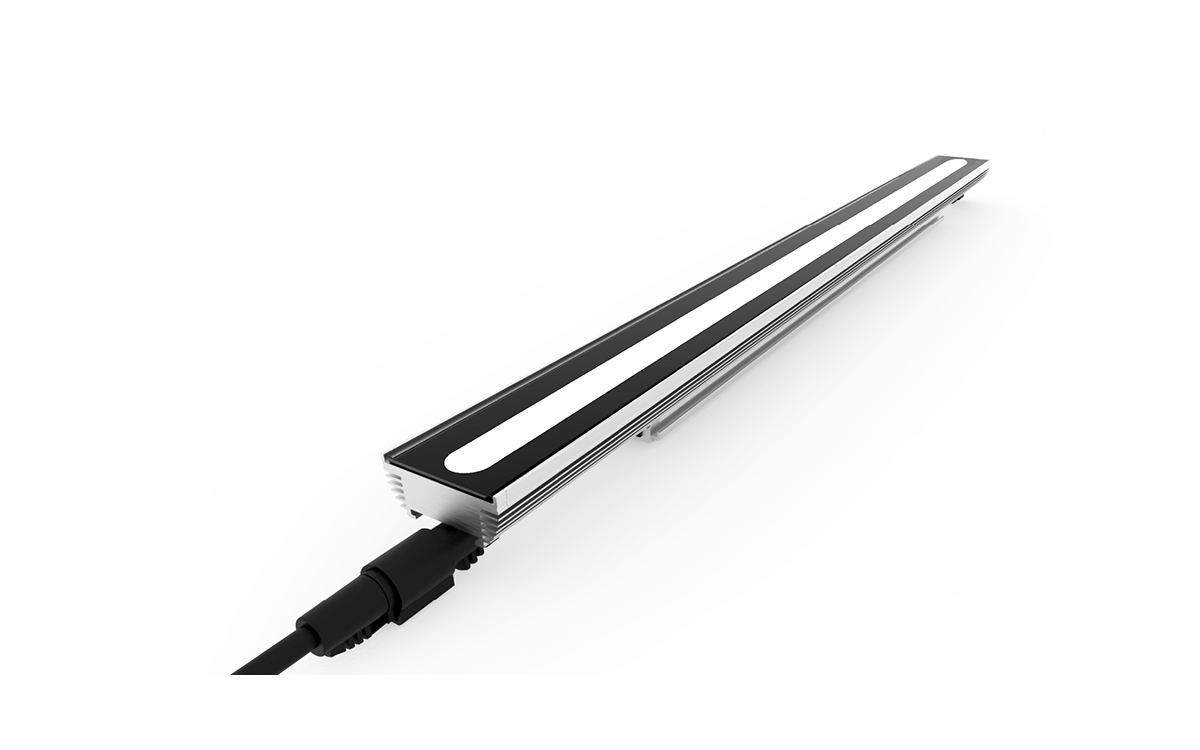

The STR9® LITE MONO is a high-performance, monochromatic linear LED wall washer and grazer specifically designed for indoor architectural lighting applications. As part of the renowned STR9® family, the LITE MONO version delivers the same superior light output as its outdoor counterpart but with a cost-effective construction optimized for dry or damp environments. Designed to provide uniform, powerful illumination across vertical surfaces, it is ideal for architectural accents, feature walls, and linear ceiling coves.
Engineered with a compact profile measuring only 72 x 51 mm (2.8 x 2.0 in), STR9® LITE MONO blends sleek aesthetics with rugged performance. Its solid, machined aluminum UNIBODY™ housing eliminates seams and endcaps, enhancing durability while maintaining a minimalist look. Though tailored for interior use, the fixture retains exceptional robustness with an IK06 impact rating and an IP50 classification. An optically clear tempered glass lens resists yellowing and ensures long-term clarity, while an integrated diffusing film creates a smooth, uniform light wash right up to the base of the fixture.
The fixture offers outstanding lighting performance, delivering up to 3,755 lumens per meter (1,200 lm/ft) and maintaining excellent LED-to-LED color consistency throughout continuous runs. Each 300 mm (1 ft) section can be individually addressed, ensuring precise lighting control and eliminating dark gaps between luminaires. The LED pitch remains consistent between fixtures, producing a seamless visual effect perfect for high-end interior installations.
Designed for flexibility, the STR9® LITE MONO supports a wide variety of mounting options thanks to its versatile mounting slot system and available accessories including adjustable brackets and glare-control louvers. The fixture is available in standard lengths from 300 mm to 1500 mm (1 to 5 feet), with symmetrical and elliptical beam angles to suit various lighting design needs.
Power options include 3W, 5W, 10W, or 15W per foot, with input voltage choices of 48VDC (ELV) or 380VDC (INF) via GVA’s proprietary INFINITY® Technology, enabling exceptionally long circuit runs without performance degradation. The fixture is compatible with DMX, DALI, and 0–10V dimming systems, offering smooth control and integration into modern lighting networks.
With a projected lifetime of over 54,000 hours at an ambient temperature of 25°C, the STR9® LITE MONO is a reliable, low-maintenance solution for interior lighting applications. It combines advanced optical performance, energy efficiency, and architectural styling—making it a top choice for designers seeking impactful, continuous lines of white light within demanding indoor environments.
