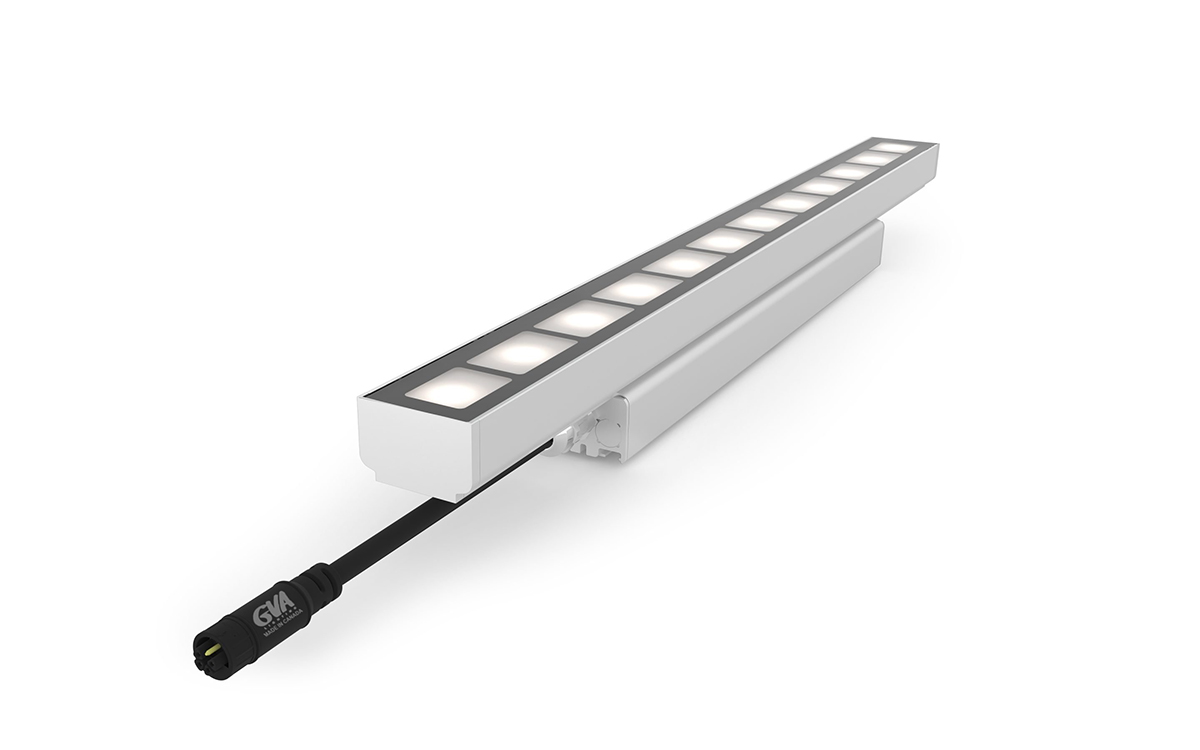

The STR10-LITE is a monochromatic linear LED luminaire designed for exterior wall washing and grazing applications, combining simplicity with high performance. As part of the STR series, it delivers streamlined efficiency optimized for monochromatic lighting, seamlessly integrating into a variety of environments with direct DALI-2 control functionality. Its compact design measures just 49 mm in width and 61 mm in height, making it ideal for installations requiring a low-profile fixture.
This high-power luminaire offers up to 15 watts per 300 mm (1 ft) and features ultra-narrow beam angles as tight as 5°, allowing for precise light placement. The full luminaire acts as a single pixel, ensuring consistent illumination without dark spots by maintaining LED pitch between connected units. Power and data are delivered through sealed push-lock connectors enabling easy through-wiring and end-to-end connections. The STR10-LITE operates reliably across a wide temperature range from -40°C to +50°C (-40°F to 122°F), supported by inherent progressive thermal protection, and is rated IP66 for protection against dust and water ingress.
Light output reaches 1,050 lumens per foot (3,444 lumens per meter), generated by six high-power LEDs per 300 mm segment. The fixture supports power settings of 5W, 10W, or 15W per foot and accepts AC input voltage options including 220V, 230V, and 240V. It comes in multiple lengths—600, 900, 1200, or 1500 mm (2 to 5 feet)—and weighs approximately 0.7 kg per 300 mm segment (2.2 lbs per foot). The projected LED lifetime is rated at L70 B50 for 100,000 hours at 30°C (86°F), ensuring long-term durability in dry, damp, or wet locations with 0–100% humidity.
The STR10-LITE’s anodized extruded aluminum body and machined end caps provide rugged construction, complemented by optically clear tempered glass that offers both IP66 and IK06 impact resistance. The luminaire is available in clear matte or black matte finishes, with custom finishes offered upon request. It supports a broad spectrum of lighting options with 10 monochromatic white CCT choices ranging from 1800K to 6500K, including 90 CRI for select CCTs, as well as four monochromatic colors. Optical distributions are impressively versatile, with 23 symmetrical and elliptical beam patterns available. For glare control, internal micro louvers or optional external louvers can be applied.
Lighting control is managed via DALI-2, using a 16-bit Manchester-coded signal for smooth dimming from 1% to 100% over 14 seconds. The dimming curve is designed to adapt to human eye sensitivity, providing flicker-free, noiseless operation throughout the full dimming range. The Intelligent Temperature Guard (ITG) feature safeguards against thermal overload by gradually reducing output when internal temperatures exceed preset limits, ensuring safe and reliable performance. Adjustable mounting brackets complement the flexible installation options of this high-quality exterior linear lighting solution.
