The Matter-certified constant voltage LED driver integrates seamlessly into modern connected lighting ecosystems through its communication over an IPv6 Thread network. This wireless protocol ensures reliable, low-latency control and interoperability across various Matter-enabled devices, simplifying integration within smart home and commercial environments. A Thread Border Router—such as an Apple HomePod mini or Google Nest Hub—is required to establish the network connection, enabling robust two-way communication and control. The driver includes an independent push-button input that can be freely configured, offering flexible user interaction and customization options for different applications. Wireless firmware updates are also supported, ensuring long-term compatibility and performance without requiring physical intervention.
This 24 V dimmable constant voltage LED driver delivers up to 100 W of power, making it ideal for flexible constant voltage LED strips used in architectural, hospitality, and commercial lighting projects. It operates within a dimming range of 1 to 100 percent without the need for any additional external dimmer, enabling smooth, flicker-free transitions and precise light control. The driver is suitable for both built-in and independent installation, with a clip-on strain relief included for added convenience. The strain relief is supplied in both bulk and single packaging variants, and in single-packaged (SP) units, each driver is individually boxed for ease of handling and installation. The device is compliant with emergency escape lighting standards according to EN 50172, ensuring safety and reliability in critical lighting environments. With a nominal lifetime of up to 50,000 hours, it guarantees durable performance in continuous operation.

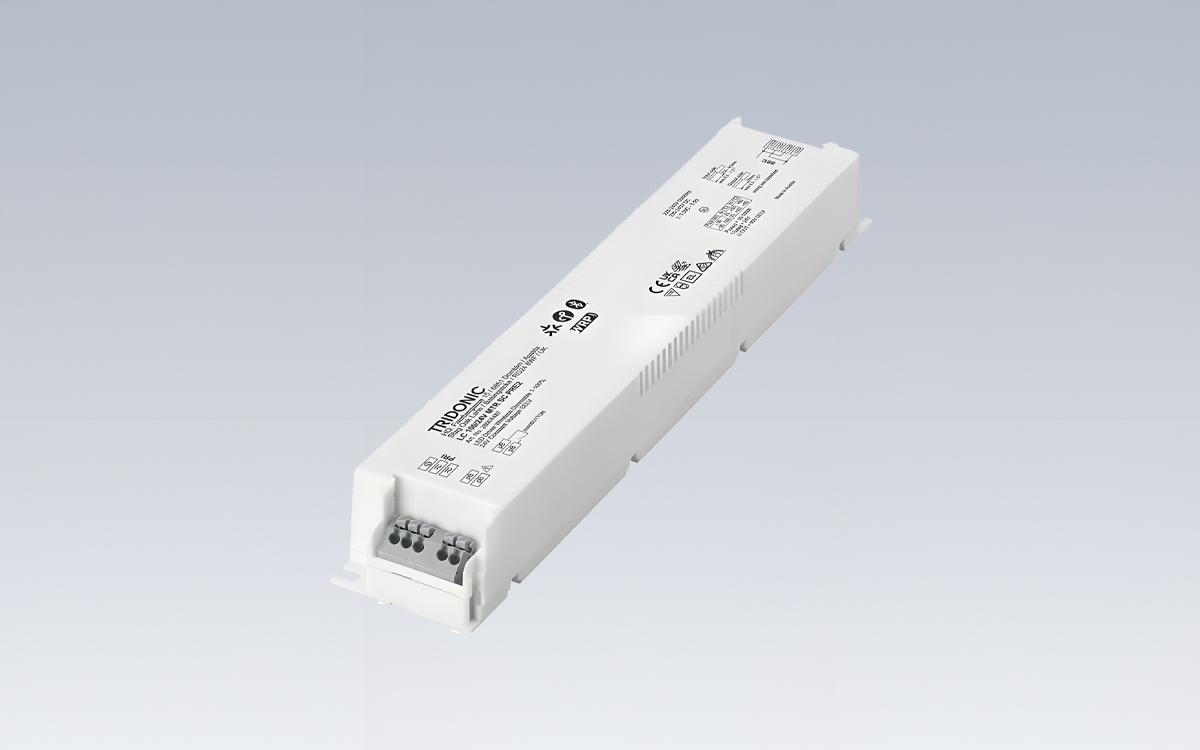

Compact in design, the driver measures 295 x 43 x 30 mm and incorporates a stretched-compact strain relief system to minimize space requirements. It features push terminals for straightforward wiring and dual (+/–) output terminals, allowing flexible connection of multiple LED strips. The housing, constructed for durability and functionality, has an IP20 protection rating, making it suitable for indoor environments such as cove lighting, facade accents, and ceiling integrations.
Technically, the driver operates on a rated supply voltage of 220–240 V and supports both AC and DC operation ranges of 198–264 V and 176–280 V, respectively, at a mains frequency of 0 / 50 / 60 Hz. At 230 V and full load, the typical rated current is 468 mA, with an efficiency of 93 percent. Standby power consumption remains below 0.37 W, while power factor (λ) reaches up to 0.99 at full load, maintaining high electrical performance across the operating range. The driver exhibits low total harmonic distortion (THD) of less than 5.7 percent, ensuring clean and stable electrical operation.
It also supports rapid response characteristics with a starting time below 0.35 seconds at full load and 0.32 seconds in DC mode, while the AC/DC switchover time remains under 0.3 seconds. The driver’s output voltage tolerance is within ±1 V, with an LF voltage ripple below 5 percent and a PWM frequency exceeding 1,000 Hz for smooth dimming control. It provides a maximum output voltage of 60 V and is protected against electrical surges up to 1 kV between line and neutral, and 2 kV between line/neutral and protective earth.
The built-in radio transceiver operates between 2.4 and 2.483 GHz with a maximum output power of +20 dBm (EIRP), ensuring robust and reliable wireless connectivity within the Matter ecosystem. Overall, this driver combines compact construction, high efficiency, advanced smart connectivity, and strong protective measures—making it a future-ready solution for professional-grade architectural and ambient lighting systems. Its five-year guarantee and long service life underscore its dependability for continuous use in both residential and commercial installations.
