The KÖKI Terminal Budapest shopping centre has had a lighting makeover, with its T5 fluorescent lamps being replaced by state-of-the-art LED lighting components from Tridonic. The new lighting solution improves the ambience and aesthetics of the shopping and dining experience and allows the popular shopping centre to benefit from energy and cost savings, a low failure rate and reduced maintenance requirements. A particular challenge was posed by the need for the lighting to be replaced outside business hours between 10 pm and 4 am.
A popular destination for locals and tourists alike, KÖKI is one of the largest shopping centres in Budapest, with its location at the intersection of the two districts of Kőbánya and Kispest also giving the centre its name. With over 150 retailers, the shopping centre offers a variety of shops, restaurants and cafés alongside cultural events and activities. The 2,000 m² "FoodPort" at KÖKI is a busy meeting point where shoppers can enjoy a quick snack or a meal at a restaurant. The location of the shopping centre is also an important transport interchange connecting the city centre and the airport with regional train, metro and bus stations.
A lighting makeover
For KÖKI Terminal Budapest and the investors, the Adventum Group, the aim of new interior lighting was to significantly improve energy efficiency and reliability and increase the well-being factor in the "FoodPort". Gábor Schmidt from Haas & Schmidt Lighting Ltd. and Manfred Raffler from Setup.lighting s.r.o. were responsible for the lighting design and managing the project, in which KÖKI replaced the existing six kilometres of installed T5 fluorescent lamps with a new LED lighting solution. "The main challenge was the time at which the work could be completed," remembers Gergely Gyevi-Tóth, Area Sales Manager SEE at Tridonic. "As the shopping centre was open as normal during the day, the work had to be carried out at night and all the equipment needed to be gone by the morning. Night after night, it was 'out with the old and in with the new'. The employees’ high level of efficiency was key to the success of the installation."
Challenging initial situation
"The customer explicitly requested that the existing architecture of the main lighting system comprising customised continuous rows with tensioned textile diffusors be retained and only as much changed as necessary," says Gábor Schmidt from Haas & Schmidt Lighting Ltd. The lighting channels all have contrasting lengths and widths and meet each other at different angles. At some points, horizontal strips merge into vertical strips, with the vertical being slightly offset. "Architecturally this looks very good, but the technical aspects of the implementation were a challenge, particularly at the corners where horizontal and vertical channels meet. The lighting we installed needed to be perfectly adapted to these channels, which proved to be the most difficult aspect of the project," explains Gergely Gyevi-Tóth.
LEDs replace fluorescent lamps
The project involved replacing T5 fluorescent lamps with LEDs. Thanks to its comprehensive range of products, Tridonic was able to supply all the relevant solutions and components to meet the client’s requirements. Tridonic installed LLE 20x280-560mm 775lm HV SNC3 linear LED modules and 2,000 LC 25W / 300 mA fixC lp SNC2 and LC 35W / 300 mA fixC lp SNC2 LED drivers over a total length of six kilometres. These modules have a long service life of 72,000 hours and perfect light homogeneity, making them the ideal solution for linear and surface luminaires. When combined with the LED drivers, they offer maximum system efficiency. Several LED modules can be quickly and easily wired together using plug-in terminals, with two terminals available for serial wiring.
"Project a real high point"
The interior lighting in the "FoodPort" is controlled via the sceneCOM evo DA2 application controller, with a variety of luminaires in different types and shapes from various manufacturers installed in order to fulfil the architectural requirements. In total, over 1,000 metres of direct/indirect linear profiles with integrated tracks, track spotlights and grow lights for indoor plants were used. In addition to the linear shapes, there are also decorative luminaires, spheres and flexible RGB constant-voltage LED strips for dynamic accent lighting.
The DALI installation in the "FoodPort" includes four sceneCOM evo controllers, three of which are connected to each other to control 500+ addresses with BMS integration via BACnet. The connection to BACnet was an important requirement. A separate sceneCOM evo controller controls the emergency lighting devices (such as exit signs and anti-panic lights). "The installation of the new lighting in KÖKI is the first project in Hungary in which we are using the sceneCOM evo scalable DALI-2 control solution. The project has been a real high point for me," says a delighted Gergely Gyevi-Tóth.
Energy savings of over 60 per cent
The switch to LED lighting has paid off: in addition to energy savings of around 61 per cent, the new lighting delivers an 80 per cent increase in luminous efficacy and a 30 per cent improvement in illuminance. And as for the well-being factor, the enhanced aesthetics and better light have made shopping an even more enjoyable experience for visitors.
At the Guangzhou International Lighting Exhibition (GILE) 2024 Tridonic presented a groundbreaking innovation that redefines the world of light. SensorX stands out as a game-changer in connected lighting. SensorX integrates machine vision into an advanced sensor, enabling precise image recognition while safeguarding user privacy. With SensorX, we have the flexibility to freely choose detection areas, identify stationary objects, and distinguish between cars and pedestrians.
We are just beginning to explore the countless use cases for this new technology. SensorX promises to optimize energy usage, enhance user experiences, and pave the way for smarter cities, workplaces, and homes. SensorX, an AI-based sensor from Tridonic detects “life” on streets and pavements so they can be reliably illuminated with minimal power consumption. SensorX can be used to dispense light on demand and thus save energy and reduce light emission. The sensor also enables road traffic to be measured and differentiated, paving the way for smart planning and control of traffic volumes and parking spaces. Instead of motion sensors, Tridonic is using machine vision for this edge device – and has found a way to make the technology not only economical and simple in its application, but also data-secure for mass use outdoors.

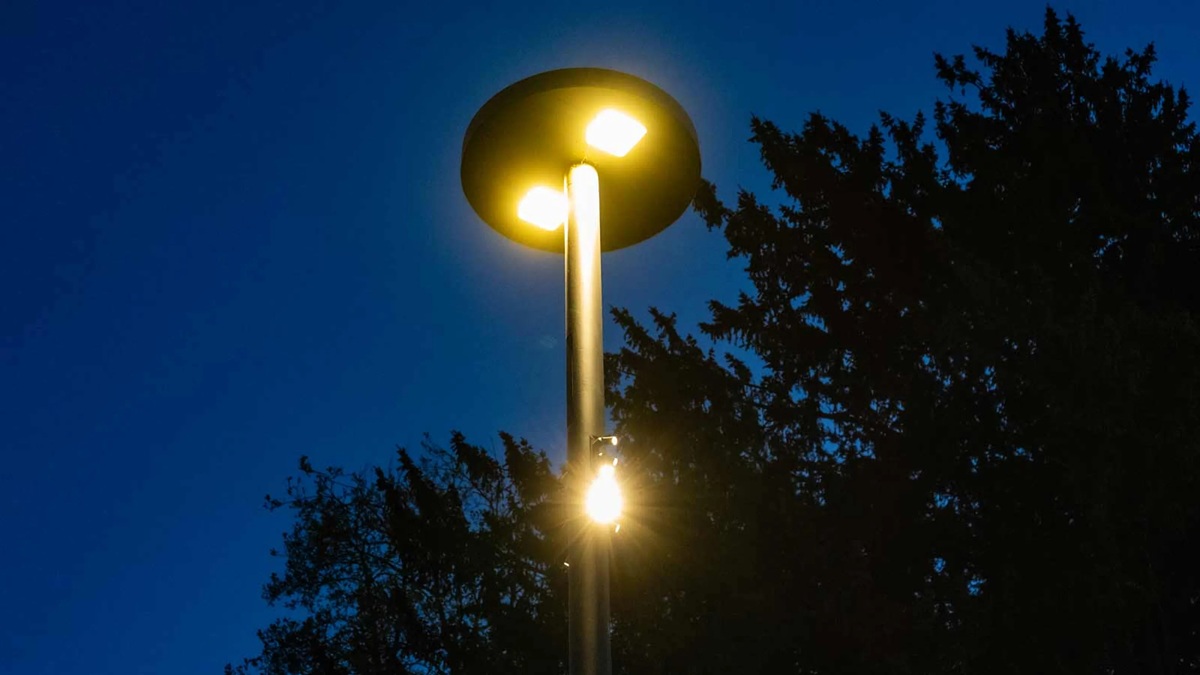

Modern street lighting must strike a balance between night-time safety, energy efficiency and minimal light emission. These requirements can all be met by dispensing light on demand. SensorX detects any pedestrians or vehicles in the vicinity. This results in adaptive lighting scenarios so that, for example, lighting levels on streets and pavements can be dimmed in off-peak times and faded back up as traffic flows increase. Tridonic supports this principle with its Ai-based, DALI-compatible SensorX, which makes the use of machine vision in outdoor applications both convenient and economical.
Zhaga-compliant SensorX detects and measures the presence of objects in a freely defined area. Its integrated machine learning algorithm not only detects the presence and number of objects but also distinguishes between vehicle types, pedestrians and cyclists, depending on the task it has “learned”.
Multiple applications in smart cities
Dosing the street lighting is just one of many application scenarios for the data that the all-rounder SensorX delivers. Users can easily define the zone and type of assets to be detected via an app. One option would be to measure traffic density – in this case, a zone could be as precise as a single lane.
In the smart city of the future, experts could evaluate the data to optimise traffic flows, for example. Traffic planners could use traffic metering, including differentiation by road user, to adapt traffic light phases to current traffic volumes or to release additional lanes, avoiding congestion and unnecessary CO2 emissions.
SensorX can also make parking management much easier. The traditional sensors used for this purpose are often installed underground, and construction teams have to dig them up, relocate and rewire them if, for example, a car park is repurposed. Errors can occur with these sensors if they are covered in snow. SensorX, on the other hand, can be quickly and easily installed on Zhaga-compatible street lights and put into operation via an app. Because SensorX is so easy to retrofit it can take into account the dynamics of urban outdoor areas and help to make them more sustainable.
Edge computing for energy efficiency and data security
As an easy-to-install edge device, SensorX processes all the information in the device itself and does not send images or videos to any external infrastructure. The sensor communicates via DALI, sending only its interpretation of the algorithm, not the input material. SensorX does not have any memory of its own. This architecture not only guarantees data protection, but also provides more bandwidth for transferring large image or video files. SensorX consumes just 1W per node. Compliance with the ZD4i standard together with DALI-based communication ensures interoperability with a wide range of systems, making it easy to use many different applications.
Innovation from Tridonic continues to shape the industry. Our dedication to quality, sustainability, and cutting-edge technology positions us at the forefront of the lighting revolution. SensorX illustrates our vision: merging light with intelligence to create a seamless, responsive ecosystem.
At GILE 2024, the largest Lighting Exhibition in Asia you can find a diverse array of products and services. From architectural lighting to horticulture solutions, visitors explore the infinite possibilities of light. As we step into the future, Tridonic and SensorX lead the way, illuminating a path toward smarter, more sustainable living.
Introducing the sceneCOM S Remote App: Our new mobile application provides a seamless experience for controlling free-standing indoor luminaires with the touch of your fingertips. The sceneCOM S Remote App is a mobile application that enables simple control of free-standing indoor luminaires. Free-standing luminaires that are configured with the sceneCOM S RTC lighting control, can be controlled via a smartphone or tablet. Its functions include manual switching, dimming and changing the colour temperature of direct and indirect light.
The App synchronises with the sceneCOM S RTC lighting controls configured in your luminaire for a smooth integration. This cutting-edge app allows you to manually switch, dim, and adjust the colour temperature of your luminaire's direct and indirect light.
The intuitive user interface simplifies the luminaires' identification and naming during the initial setup, ultimately enhancing visual comfort.
But it goes beyond just controlling light intensity and colour: Users can store unique lighting setups profiles for individual luminaires and swiftly switch between lighting moods through the supply of predefined scenes.
The app gets its edge from enabling dynamic lighting profiles creation and adapting light colour as per the day's course.
With its vast possibilities in defining light scenes as profiles, the sceneCOM S Remote App reshapes the control of free-standing luminaires into an engaging, smart experience.
So why not try the SceneCOM S remote app today and experience the future of smart lighting?
For the second year in a row, Tridonic is among the top five percent of the most sustainable companies worldwide, as assessed by the international rating agency EcoVadis.
Tridonic is also among the frontrunners in the lighting industry when it comes to sustainability. The company, based in Dornbirn, has once again been awarded the EcoVadis Gold Medal for its sustainability activities. Tridonic is among the top two percent (previous year: three percent) of companies assessed in the lighting industry. In particular, the specialist in LED technology received top marks in the environment category and is therefore among the top one percent of companies assessed.
The EcoVadis rating agency is active in over 175 countries and enables an objective comparison of the sustainability performance of companies from different industries in the fields of environment, labour and human rights, sustainable procurement, and ethics.
Top marks for a sustainable future
For Tridonic, the outstanding EcoVadis assessment is the result of the long-term, consistent "Sustainable Tridonic" sustainability strategy. This is based on the three pillars of 'partner of choice', ‘environmental protection’ and 'sustainable products'. In practice, this means: Tridonic actively involves its partners and suppliers in its own sustainability strategy, minimises its ecological footprint throughout the entire supply chain and ensures resource efficiency and recyclability in the development and production of its solutions for the lighting industry.
By 2050, Tridonic, together with the Zumtobel Group, aims to reduce its greenhouse gas emissions to zero, in the context of the Science-Based Targets Initiative (SBTi). Since 2023/2024, the company has succeeded in reducing its CO2 emissions by almost 70 percent, according to the GHG protocol. All European production plants obtain their electricity from renewable energy sources.
In August 2022, Tridonic was the first company in the electronics industry to receive the bronze Cradle to Cradle (C2C) Certified® sustainability certificate for a lighting component. By the year 2030, the entire premium portfolio should also have received this certification. In addition, Tridonic's recycling rate in business year 2023/2024 was 87 percent.
We are extremely proud to have achieved a significant milestone in our journey towards sustainability! After achieving Cradle to Cradle certification for our LED modules last year, we're delighted to announce that our LED drivers, and in particular our GEN4 drivers, are now also Cradle to Cradle Certified® Bronze certified.
We are the FIRST in the electronics industry to receive this esteemed sustainability certification for both LED drivers and LED modules.
To obtain Cradle to Cradle® certification, products need to fulfill rigorous environmental and social standards and adhere to sustainable manufacturing and supply practices. This recognition underlines Tridonic's unwavering commitment to sustainability and innovation.
But that's not all! Alongside this achievement, we are excited to present our latest Sustainability Report for the 2022/2023 financial year. This comprehensive 147-page report dives into Tridonic's sustainability efforts, past accomplishments, and future goals. It's a testament to our dedication to building a sustainable future.
Explore our sustainability journey and join us in our commitment to a circular economy. Together, we can create a brighter, more sustainable world!
Our latest generation of SLE modules, the SLE ADV8, offers improved efficacy as well as a longer service life.
The smaller LES04 and LES06 modules allow for the realization of miniaturized spotlights and downlights.
The larger LES17 and LES21 Raw versions have optimized PCB sizes that can be combined with the standard housings available on the market.
Our new modules come in seven different sizes and four different color temperatures. The COB technology guarantees excellent thermal management throughout the 60,000 hours lifetime, while the assembly is fast and easy thanks to TIM variants.
With the new Msensor G3 PIR 4DPI WDA WH, we are now offering our DALI-2 certified PIR sensor with light and presence detection as a standalone version as well. It is available in three different versions for luminaire installation (SFI), remote ceiling installation (SRC) and ceiling surface instlallation (SSM) for low bay applications, such as offices.
The Tridonic MSensor G3 sensor family has been developed in accordance with the DALI-2 standard. An application controller is required to use the sensor in such installations.
Product description
- Sensor developed to work with the latest DALI specification
- Monitoring of ambient light and occupancy detection
- Remote control interface allowing infrared remote control interaction
- Individual adjustment of the parameters with configuration software
- Power supply via DALI line
- Wide range of accessories allowing extended application range
- Small dimensions allowing easy and inconspicuous integration in luminaries
- 5 years guarantee
Our 24V constant voltage LED driver LC 24V SC SNC2 is now available with a power consumption of less than 0.5 W in no-load operation to comply with the current European Ecodesign Directives. These directives also allow the drivers to be connected on the output side to a dimmer or pushbutton if required for the application.
The 24V constant voltage driver is available in four different output power variants, ranging from 35 W to 200 W in SC form factor for independent use. In combination with our LLE FLEX 24V LED strip, the driver is especially well-suited for decorative applications such as cove or accent lighting.
What if you could control all your Smart Home or Smart Office devices such as floor lamps, Smart TVs and electronic door locks from a single app, either Apple or Google? A new connectivity protocol has brought us an important step closer to this vision. It’s called Matter. Tridonic can now offer its customers the first Matter-compatible products.
Matter, the new open-source communication standard, bridges the gap between a smart ecosystem, such as Apple Home, and intelligent devices from various providers. Matter is the result of a joint initiative involving tech players such as Amazon, Apple, Google, and the Connectivity Standards Alliance (CSA). Today, around 270 companies from a wide range of industries are part of the Matter Alliance, all working to improve interoperability in the smart world.
Tridonic is committed to interoperability in the lighting industry
Interoperability runs like a thread through Tridonic’s research and development activities. As a provider of hardware and software for intelligent lighting, its commitment to the interoperability of lighting technology systems goes back many years. Among other things, Tridonic has played a major role in the development of the DALI-2 standard and has been offering the first LED drivers certified according to Zhaga Book 24 since 2022.
Matter now complements the proven DALI standard for wired lighting systems. With the support of the Matter protocol, Tridonic gives luminaire manufacturers a competitive advantage in smart lighting, enabling them to quickly develop Matter-compatible luminaires that can be easily integrated in a wide variety of smart ecosystems – for example in offices, retail stores, hotels, holiday apartments and the high-end residential sector. Thanks to Matter-compatible elements, the entire atmosphere of a room can be set up with just a few clicks on a single device – everything from lighting to air conditioning including smart locks for opening and closing doors.
First wireless Matter drivers and Matter modules for DALI lighting systems
Tridonic is one of the first manufacturers to offer Matter-compatible products. The following are available:
- Wireless Matter driver: Dimmable 24V constant-voltage driver available in 35W, 60W, 100W and 150W versions
- Active wireless Matter to DALI module: Active module with integrated 10 mA DALI bus supply and one momentary-action switch input
- Passive wireless Matter to DALI module: Passive module that requires a DALI power supply (power consumption: 4 mA), four momentary-action switch input
- Wireless Matter to DALI SR: With strain relief for robust installation and 50 mA integrated DALI power supply
The new Matter-compatible DALI modules can be connected directly to DALI LED drivers already installed in existing luminaires and can then control them. There is no need for any retrofitting work.
Here is a possible Matter use scenario: A smartphone with the respective app of the preferred ecosystem, such as the Apple Home app preinstalled on every iPhone, acts as a remote control and commissioning tool for the smart network. To add a Matter-ready device you point the smartphone’s camera at the QR code on the device. Quick and simple. A smart home device such as the Apple Home Pod mini or a Samsung Wireless Charger serves as the hub for Matter communication. It forwards the commands from the terminal device via a wireless mesh network to a lighting strip system which can “understand” the commands and translate them into the desired lighting mood thanks to the Matter intelligence integrated in the LED driver. Matter can communicate via both WiFi and Thread.
Tridonic uses the IP-based Thread wireless protocol as the basis for the wireless mesh network. Compared to classic WiFi, Thread has a lower power consumption even with a large number of network nodes, and offers stable, low-latency data transmission with AES encryption. A simple command such as “Hey Siri, dim the lights in the office to 20 percent” is then all that is needed to control the LED lighting.
The Mobility category of the Zhaga Smart City Sensor Awards includes solutions for counting vehicles, bicycles and pedestrian traffic and/or measuring vehicle speed, the award went to global lighting technology supplier Tridonic and its SensorX concept.
Based on the Zhaga-D4i standard, this game-changing CMOS image sensor is designed to accurately measure traffic density and patterns in real time, providing data that urban planners can use to mitigate road congestion. The sensor can also recognize different road users. For example, when it detects a pedestrian crossing the street, the sensor can send commands to adjacent luminaires to raise lighting levels.
The fields of application of SensorX are manifold, besides street lighting and illumination of public ways, the sensor can also be used for parking areas and parking lots. This gives urban planners, the possibility to prevent congestion, to optimise traffic routing or to actively improve parking management with the data collected in real time.
