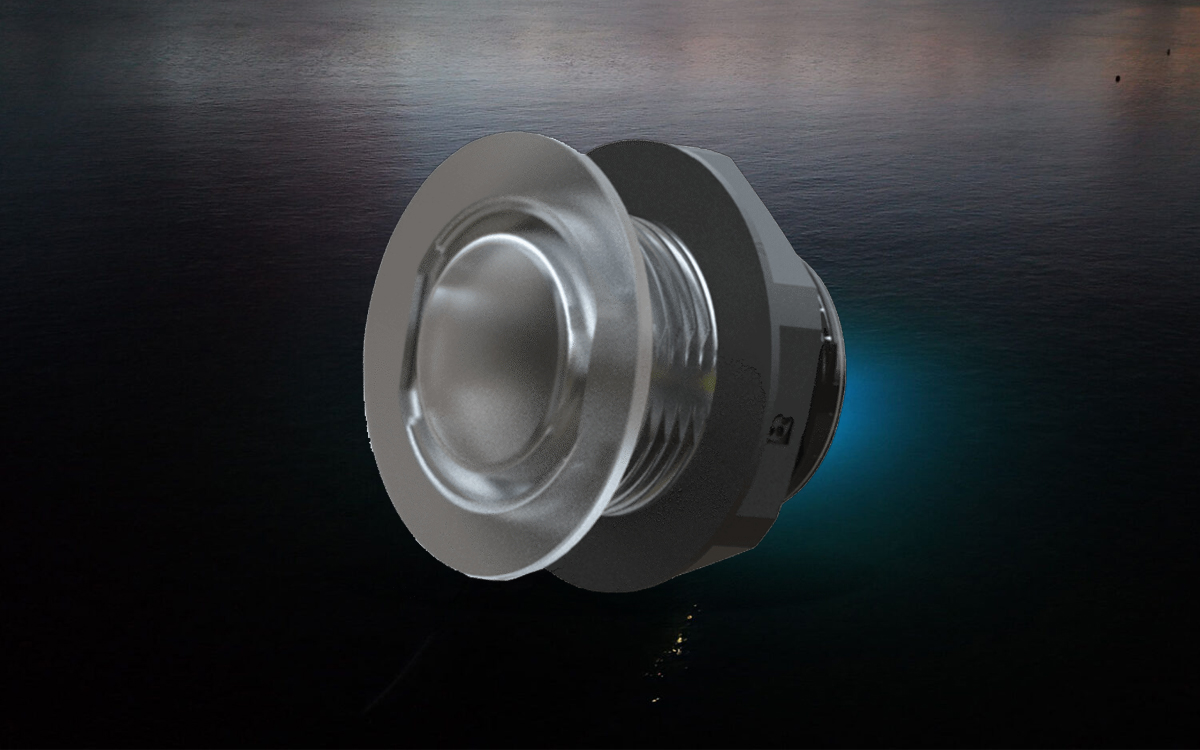

The LUX Livewell Lights are engineered to withstand the most challenging onboard environments, making them ideal for use in livewells, fish boxes, splash wells, or any wet or submerged areas. Designed with durability and performance in mind, these compact LED fixtures are equipped with an internal screw thread and locking nut, ensuring a secure and watertight installation even in submerged conditions.
Each LW25 unit delivers full-spectrum CRGBW illumination—including cold white, red, green, blue, and warm white—along with white color temperature tuning from 2700K to 6500K, all integrated within a single compact light. This allows boaters to fine-tune the ambiance or functional lighting to meet a variety of needs, from visibility in murky water to creating atmospheric lighting effects.
Control is simple and intuitive. The lights can be operated via a momentary switch for basic functionality or upgraded for full system integration with compatible multifunction displays (MFDs) and optional Lumishore Displays. As part of the LUX Series, these lights are dimmable by default and powered through the LUX Light Control Module, allowing up to 16 LW25 units per module.
With an IP68 ingress protection rating, the LW25 is completely sealed against water intrusion. It can be installed with or without an optional stainless steel bezel, depending on aesthetic or application preferences. The bezel version has a front diameter of 50mm with a 5.4mm profile, while the non-bezel version measures 36mm in diameter with a low-profile 3.5mm depth. Both configurations share a 30mm depth and a 25mm cutout diameter, designed for easy bulkhead panel mounting using marine-grade adhesive.
Operating within a supply voltage range of 10.5 to 31V DC and drawing minimal current (0.1A max), the LW25 is both energy-efficient and performance-driven. Whether you're illuminating submerged wells or creating ambient underwater accents, the LUX Livewell Light delivers robust, vibrant, and reliable lighting in even the wettest onboard environments.
