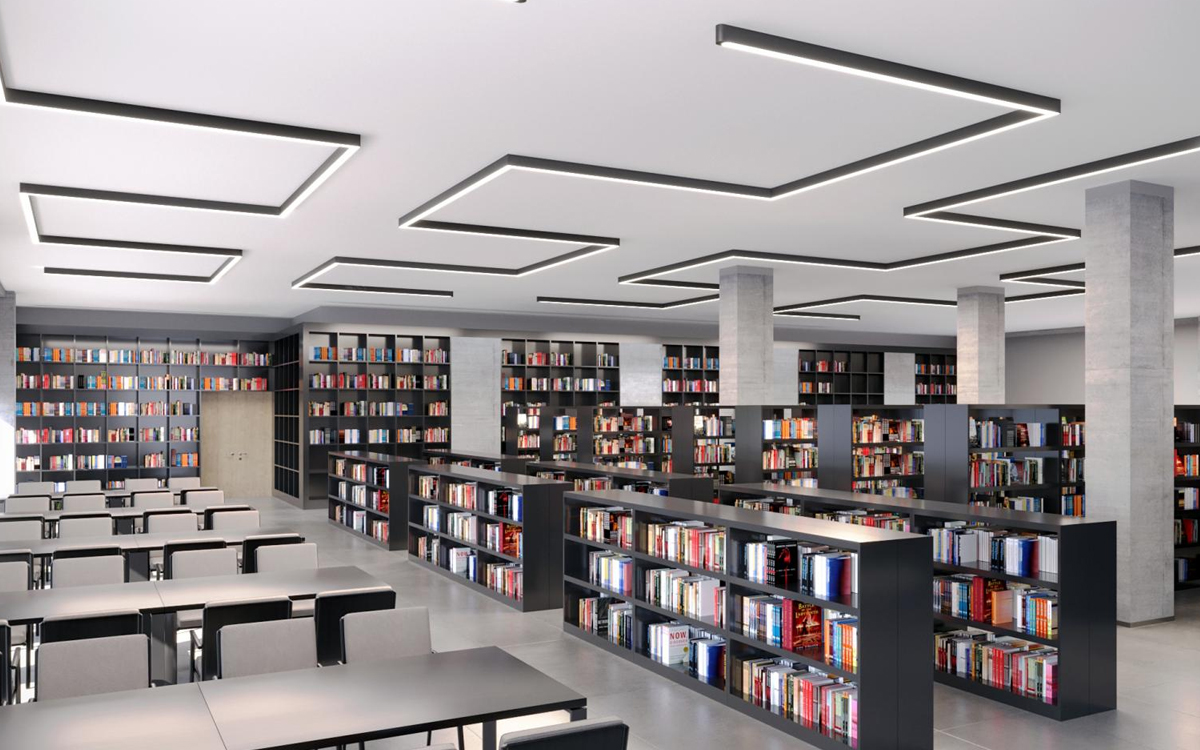

BLOCK stands as a reliable and adaptable workhorse within the linear lighting category, designed to meet diverse aesthetic and functional requirements across a wide range of projects. Offered in three aperture sizes—1.5 inches, 2.5 inches, and 3.5 inches—BLOCK provides designers with the flexibility to tailor lighting precisely to the needs of any space. The luminaire’s appearance is further enhanced by a choice of end caps, available in sleek flat or elegant curved profiles, allowing for refined visual integration. Its seamless roll-out diffuser guarantees uniform, shadow-free illumination, ensuring consistent light quality throughout.
Performance-wise, BLOCK excels with a variety of precision light distribution options including Diffused, Widespread, Batwing, and Asymmetric patterns. This versatility is complemented by eight lumen packages ranging from 200 to 1600 lumens per foot, delivering energy-efficient lighting with luminous efficacy reaching up to 152 lumens per watt. Additionally, BLOCK integrates BIOS technology to support circadian rhythm regulation, promoting healthier environments through dynamic lighting control. This combination of adaptability and cutting-edge technology makes BLOCK a standout choice for projects requiring both performance and design flexibility while accommodating a wide spectrum of budgets.
The construction of BLOCK is robust and refined, featuring an aluminum body with a powder-coated finish that ensures durability and a polished look. Suspension is handled via steel cables, while power is supplied through a silver braided cable, contributing to the fixture’s sleek, modern aesthetic. High power factor (HPF) electronic drivers, compatible with 120-277V and 347V (EU-240V), are integral to the fixture housing, streamlining installation and maintenance. Furthermore, BLOCK supports integration into data networks via Power over Ethernet (PoE) connectivity, enhancing control and efficiency in smart building environments.
To accommodate complex lighting designs, BLOCK offers X and T junctions for seamless continuous runs, and luminaires can be mounted directly over standard junction boxes. Fixture lengths are customizable in one-inch increments, enabling precise tailoring to architectural requirements. Lighting options include tunable white with a range from 2700K to 6500K and RGBW color control, available upon consultation. The luminaire emits high-quality light based on 4000K with a CRI of 80+, ensuring color fidelity in any application.
Durability and longevity are key attributes of BLOCK, boasting a reported L70 lifespan of over 60,000 hours and an estimated L70 exceeding 165,000 hours at 2000 lumens per foot. The fixture’s diffuser comes in two versions: a roll-out lens designed for continuous systems and a snap-in lens for standalone units. When projects combine both types, the roll-out diffuser is supplied for all fixtures to maintain visual consistency. For added safety and operational reliability, an integral emergency lighting option is available, providing 1.5 hours of illumination in North America and 3 hours in Europe. This self-contained system includes an inverter module, NiCad batteries, an LED charge indicator, and a test switch, though it is not compatible with 347V supplies.
BLOCK is compatible with a broad range of sensor and control systems including Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, and Philips, allowing seamless integration into existing lighting management ecosystems. It is damp rated for applications where moisture resistance is required. For installations in regions with seismic requirements, seismic bracing kits are available to ensure compliance and structural safety. With its combination of precision, flexibility, and performance, BLOCK is a compelling solution for projects demanding adaptable, high-quality linear lighting.
