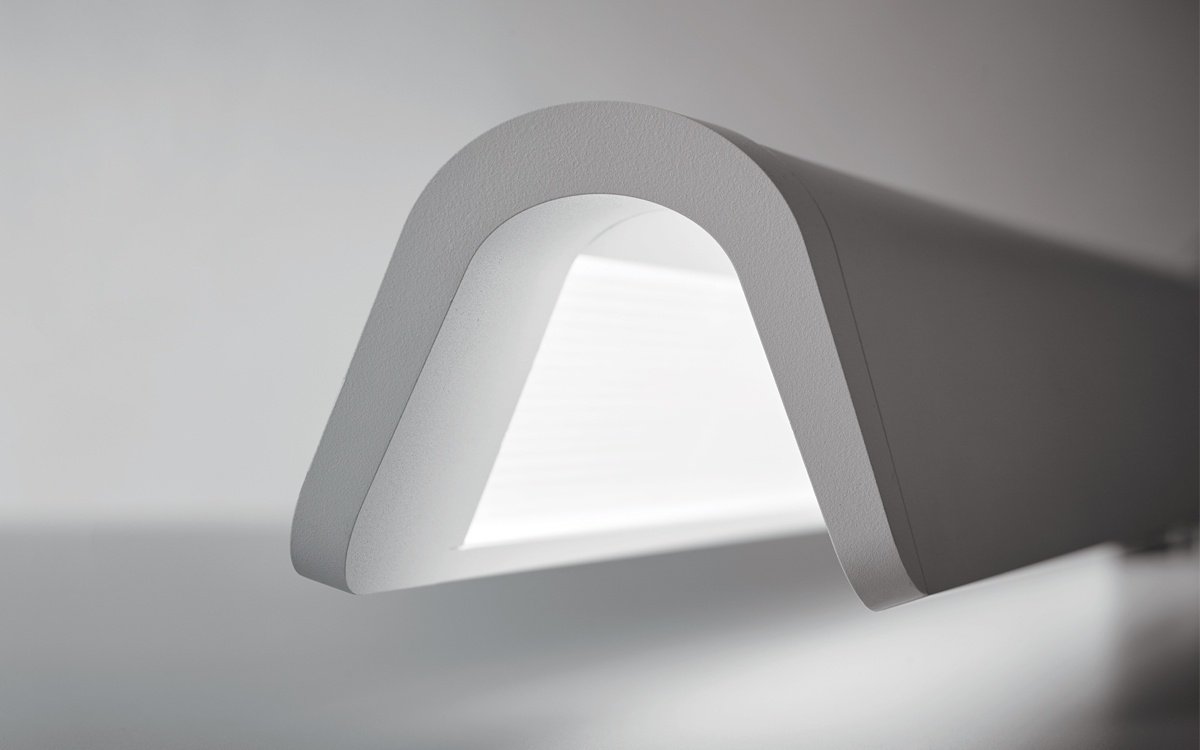

Fold is a high-performance linear suspended luminaire that merges minimalist architectural form with cutting-edge optical and lighting technology. Designed for contemporary environments where performance and aesthetics are equally prioritized, Fold features third-generation Anidolic extraction optics that emit light from both interior vertical planes. These optics efficiently refract and direct light to form a batwing distribution in both upward and downward hemispheres. This results in low brightness output with exceptional visual comfort and wide fixture spacing, supporting energy-efficient designs with efficacy up to 119 lumens per watt and power densities typically ranging from 0.3 to 0.5 W/ft².
Ideal for general area lighting, Fold achieves on-center spacing from 10 to 15 feet with lighting power densities between 0.45 and 0.75 W/ft². Whether installed as a standalone pendant or as part of a continuous run system, Fold supports a variety of lighting strategies with consistent visual harmony. Available in nominal lengths of 4, 6, and 8 feet, and in any run length starting at 4 feet in 2-foot increments, the system adapts to both small and expansive architectural plans.
Fold U|D models introduce independent up and down light control, allowing users to precisely adjust the balance of indirect and direct illumination to meet the needs of multipurpose environments, such as conference rooms, classrooms, or areas equipped for projection and video conferencing. The separated circuitry provides dimmable or switchable functionality, enhancing user flexibility while supporting energy code compliance. Fold U|D is offered with a native 60% uplight and 40% downlight distribution, delivering up to 3,900 lumens with exceptional uniformity and comfort.
Engineered for superior performance, Fold’s vertical optics and linear light extraction lens elements enable highly controlled light distribution. The transparency of the lens and the open architecture allow natural daylight to flow through the fixture, enhancing spatial brightness while preserving visibility through the form of the luminaire. This design facilitates uniform luminous ceiling planes with minimal suspension drop, boosting both spatial and energy efficiency.
Constructed from precision-machined, extruded architectural-grade aluminum, Fold incorporates seamless joints and endcaps that are pre-installed for consistent fit and finish. Stainless steel fasteners and 0.04-inch stainless steel aircraft cables support a clean, low-profile suspension system. The luminaire is available in clear anodized aluminum or powdercoated finishes in white, metallic silver, or black, with white canopies provided as standard.
Fold’s optical system is based on Anidolic structures with high-transmittance, precision-molded acrylic lenses. These lenses work in tandem with a long-life mid-flux LED engine rated for ≥L90 at 60,000 hours. Color temperature options include 3000K, 3500K, and 4000K, with high color rendering options of CRI 80+ (R9 ≥ 0) or CRI 90+ (R9 ≥ 50), all binned within a tight 2-step SDCM for consistent color quality.
Electrical performance is streamlined by eliminating fixture-level electrical connections during installation. Fold arrives with factory-preinstalled low-voltage power cords and integrated multivolt drivers compatible with 120–277V (50–60Hz) or 347V via transformer. Drivers are housed within the suspension and mounting system, offering high efficiency with a power factor above 0.90, total harmonic distortion below 20%, and standard dimming to 3%, with 1% or 0.1% available as options. The electrical system meets ANSI and IEEE surge protection requirements and complies with NEMA 410 for inrush current.
Fold supports optional emergency lighting through a 10W Class 2 battery pack, delivering 90 minutes of backup with an estimated flux of 1,150–1,750 lumens. An optional Generator Transfer Device (GTD) is available to bypass dimming controls and provide full output during emergency operation on 120–277V systems.
Designed for dry or damp indoor locations, Fold operates in ambient temperatures from 0–30°C (32–86°F). It should be protected from chemical contaminants such as chlorine, ammonia, sulfur, solvents, or alcohol, which may damage fixture materials. It is not suitable for high-humidity environments like swimming pools or spas. Regular cleaning should be done with a soft, slightly damp cloth to preserve its finish and optical clarity.
Fold is UL listed in the U.S. and Canada, meets CCEA Chicago Plenum requirements, and is Living Building Challenge (LBC) Declared, underscoring its compatibility with sustainable and code-compliant architectural projects. Combining performance, visual comfort, and elegant simplicity, Fold is a lighting solution that empowers designers to deliver impactful, energy-efficient environments without compromise.
