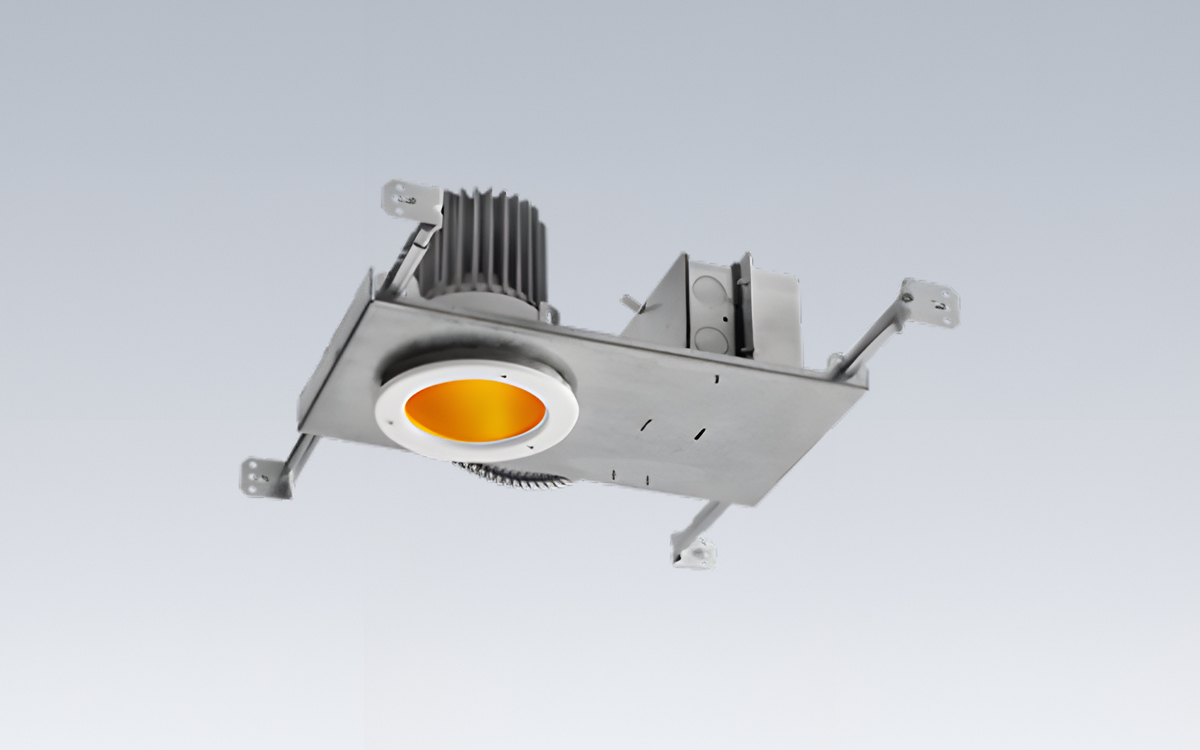

The 4-inch sealed, recessed high abuse LED downlight is engineered for demanding environments that require durability, safety, and precision lighting control. Designed with a flush trim and available in both round and square apertures, this fixture is ideal for spaces where tamper resistance, ligature-safe design, and long-term reliability are essential. It comes with a Peace of Mind Guarantee® against breakage, providing confidence in environments prone to high impact or potential abuse. The luminaire is particularly suited for applications in parks and recreation facilities, locker rooms, multifamily housing, dormitories, schools and universities, foyers, lobbies, natatoriums, and canopy areas.
This downlight offers specialized spectral options for sensitive applications. Native 630 nm Red and 590 nm Amber LEDs provide narrow-bandwidth output, ideal for spectrally sensitive environments such as coastal regions, skyglow-restricted areas, and vivariums, where precise control over spectral emissions is critical. A phosphor-converted (PC) Amber option delivers a slightly broader spectrum, offering higher lumen output and longer lifetime, suitable for applications where greater light performance is prioritized. Additionally, a 470 nm Blue option is available for public safety applications that require high visibility and recognition in critical environments. These spectral choices allow designers and facility managers to meet both ecological and operational requirements without compromising safety or fixture durability.
The fixture is equipped with a die-cast aluminum heatsink featuring external radial fins to provide efficient thermal management through natural convection, ensuring consistent LED performance and extended service life. Electrical options include operation on 120–277 VAC or 347 VAC at 50/60 Hz using a serviceable constant-current driver with less than 20% total harmonic distortion (THD) and a power factor greater than 0.90. The driver maintains a minimum efficiency of 85% and supports standard 0–10V dimming from 1–100% with dim-to-dark capabilities, drawing a maximum of 0.2 mA. An optional eldoLED ECOdrive DALI-2/LEDcode2 driver is also available for full 1–100% digital dimming control, providing flexibility in lighting management and integration with building automation systems.
Optically, the fixture features a diffused tempered-glass upper lens combined with a 1/8-inch clear polycarbonate flush lens at the ceiling trim. A continuous seal between the lens and trim ring enhances ingress protection and prevents tampering, while multiple reflector finishes provide versatility in light distribution and aesthetic preferences. The fixture’s photometric performance has been tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory, ensuring reliable, verified performance data for design and specification purposes.
The rough-in frame is constructed from 18-gauge die-formed, corrosion-resistant steel with a vertically adjustable collar to accommodate ceiling thicknesses up to 1.5 inches and allow post-installation adjustment. Adjustable mounting bars enable installation with both wood and steel frame joists, as well as T-grid ceiling systems spaced up to 24 inches on center. A quick-access junction box is accessible both above and below the ceiling after installation and includes five 1/2-inch knockouts to facilitate straight conduit runs.
The IP-rated trim and housing section integrates the heat sink, LED module, optics, and lower trim in a fully sealed assembly. The flush lens trim is secured with three Torx® tamper-resistant captive fasteners for round apertures or four for square apertures, maintaining the fixture’s ligature-resistant and vandal-proof characteristics. Closed-cell gasketing at the ceiling flange provides additional protection against moisture and environmental contaminants. With its combination of robust construction, spectral flexibility, precise optical performance, and tamper-resistant design, this 4-inch high abuse LED downlight is an ideal solution for institutional, public, and safety-critical applications requiring both durability and lighting control.
