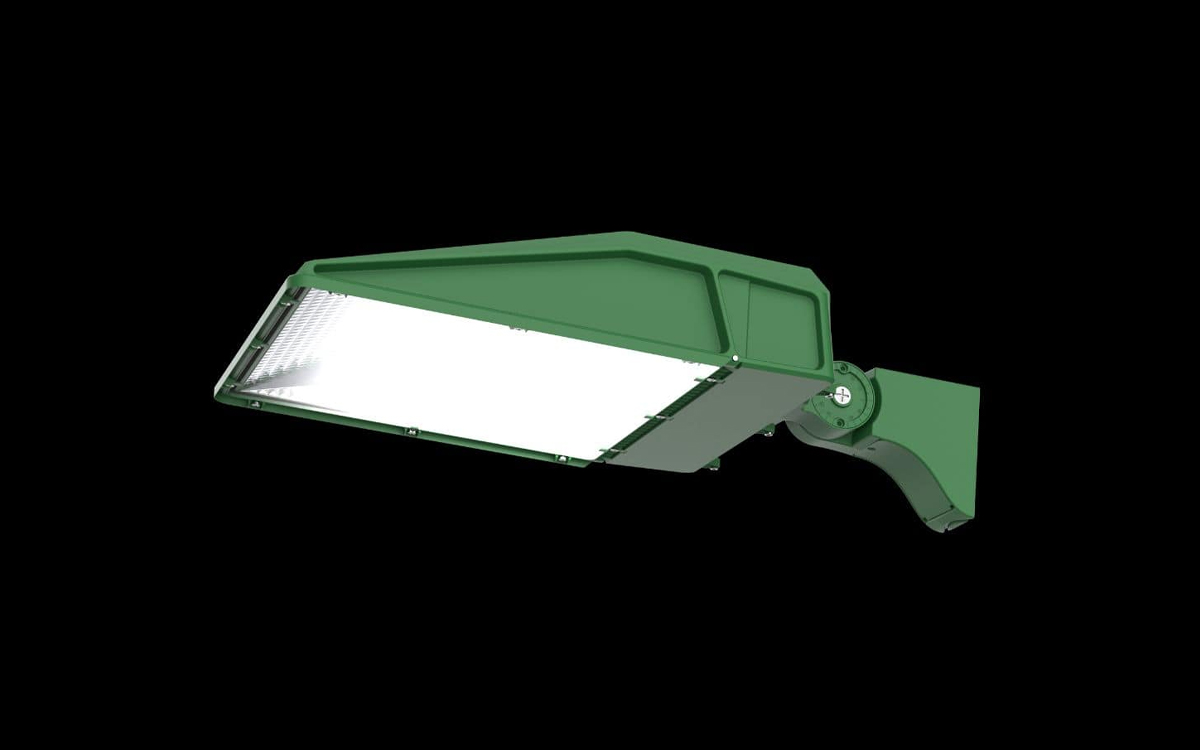

The Court LED 500 is a premium sports lighting solution tailored for both indoor and outdoor courts, including basketball, tennis, pickleball, badminton, and volleyball arenas. With a 500W LED system delivering over 66,000 lumens, the fixture produces clear white light with smooth, even distribution, minimizing shadows and highlighting every moment of the game. Its single-glass optic technology clusters bare LEDs tightly, eliminating plastic lenses and glare while maintaining consistent color fidelity, making it ideal for sports environments that demand clarity and uniform illumination. The Court LED 500 is available with CRI options ranging from 70 to 90+, offering a natural and balanced visual experience for athletes and spectators alike. Built-in temperature protection ensures reliable performance under varying conditions, while Zero Plastic Technology and weather-proof design enhance durability and longevity.
The housing of the Court LED 500 is a custom aluminum die-cast structure, laboratory-tested to withstand harsh environmental conditions. This robust design combines durability with aesthetic appeal, offering a sturdy yet visually refined solution for professional sports venues. The fixture can be mounted on pedestals or directly on poles, providing flexible installation options for different court layouts. With an effective projected area of 0.45, with or without a visor, the unit maintains optimal airflow and thermal management, while vibration resistance compliant with ANSI C136.31-2010 3G ensures operational stability. The Court LED 500 weighs approximately 22 pounds, making it a manageable solution for a range of installation scenarios.
Electrical performance of the Court LED 500 is engineered for reliability and efficiency. The system operates at a frequency range of 47 to 63 Hz and accepts input voltages between 90V and 305V, with a 24V DC option. Maximum input current is 4.2A, with a power factor of 0.95 at 115V and 0.94 at 277V, and total harmonic distortion below 20%. The fixture includes surge protection of 6kV L-L and 6kV L-PE, along with automatic recovery for over-temperature and overload conditions, and recovery after power cycle for over-voltage events. Electrical certifications include FCC, CQC, ETL, IK08, CB, KC, and UL 924.
Optical and performance specifications include a lumen output range of 62,120 to 66,300, with lumen-to-watt efficacy between 124 and 132 LM/W. Correlated color temperature options range from 4000K to 5700K, and NEMA configuration is H7V5. The Court LED 500 excels at delivering uniform, shadow-free lighting across courts of various sizes, enhancing the visibility and quality of play. With a combination of high-quality materials, robust electrical protection, and precise optical design, the Court LED 500 stands as a reliable, cost-effective, and visually impressive solution for indoor and outdoor sports lighting projects.
