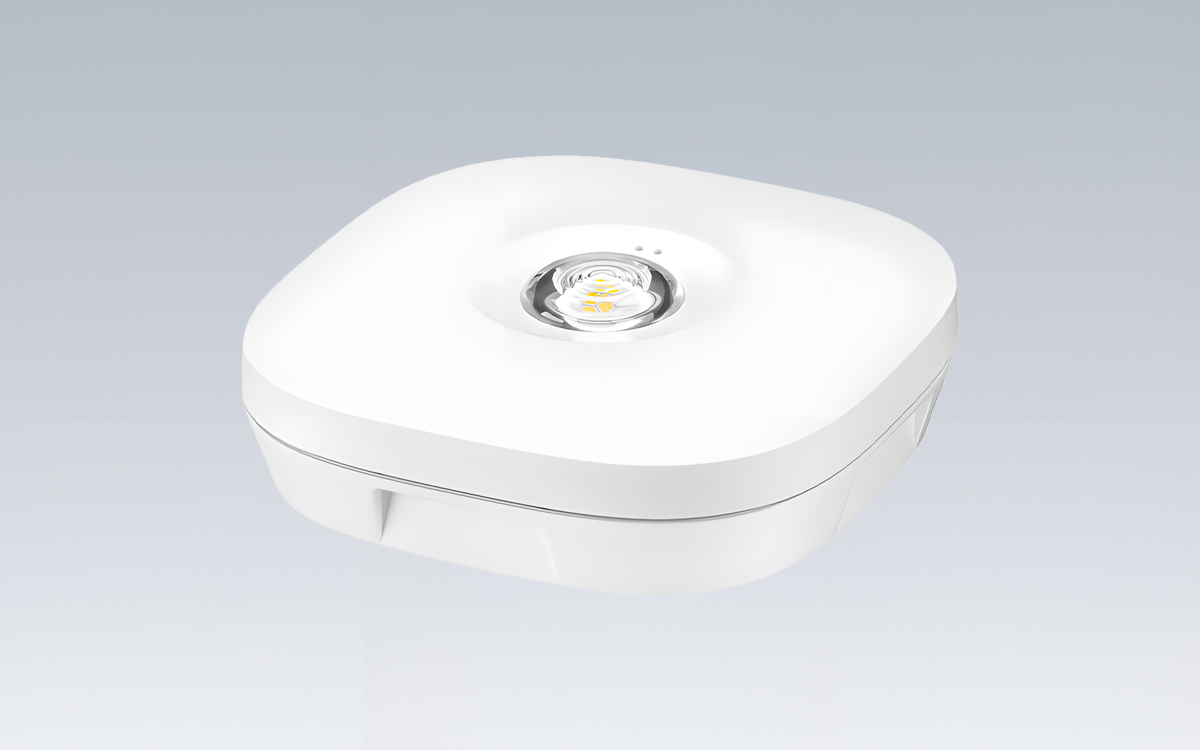

The LED emergency module is a compact and reliable solution for surface-mounted installation, designed to ensure safety and visibility in critical situations. It comes as a complete set that integrates the LED light source, electronic control gear, heat sink, optics, and rechargeable battery into a single, unified unit. This modular design simplifies installation while maintaining consistent performance and durability. The luminaire is compatible with BESA mounting systems, allowing flexible and secure placement on various ceiling or wall surfaces. A click-in multi-lens system is included, enabling users to select between anti-panic, escape route, and spot light distributions, ensuring that the module adapts effectively to different emergency lighting requirements within a facility.
Equipped with a DALI interface, the module supports centralized monitoring and control through digital lighting management systems. Its automatic test function enables continuous verification of battery and light source performance, reducing the need for manual maintenance checks and ensuring full compliance with safety regulations. The fixture operates as a non-maintained emergency unit, meaning it activates only in the event of a power failure, providing dependable illumination during outages. Available in versions rated for one or three hours of emergency duration, it accommodates various building safety plans and occupancy needs. The module’s Lithium Iron Phosphate battery connects easily via a plug-in system, ensuring quick replacement or servicing without complex wiring.
The luminaire’s compact form and aesthetic flexibility make it suitable for both functional and visually sensitive environments. It is available in white or black housing finishes, with back box options in two different heights to support either rear or side cable entry, allowing seamless integration into existing architectural layouts. The heat sink construction ensures optimal thermal management, maintaining stable LED performance over long periods of operation.
Electrically, the emergency module operates at a rated supply voltage of 220–240 V, with performance tolerances between 198–254 V and safety tolerance up to 264 V. It functions reliably at mains frequencies of 50 or 60 Hz and offers robust overvoltage protection up to 320 V for 48 hours. In the event of a power failure, the fixture switches to emergency mode in less than 0.5 seconds, ensuring instant response and uninterrupted safety lighting. Its output power of 1.5 W provides efficient illumination while maintaining very low standby power consumption, reflecting a balance of performance and energy management.
Built to meet EN 60598-2-22 standards, the module ensures compliance with international emergency lighting safety requirements. It offers an IP20 protection rating and an impact resistance of IK07, making it suitable for indoor installations where durability and safety are key. The fixture operates reliably within ambient temperatures from 5°C to 40°C, ensuring consistent performance in varied environments. It belongs to protection class II, guaranteeing double insulation and enhanced electrical safety.
Optically, the luminaire produces a color temperature of 6,500 K with a color rendering index (CRI) above 80, ensuring clear visibility and accurate color perception during emergencies. The color consistency is maintained within a 3-step MacAdam ellipse (3 SDCM), providing uniform light quality across installations. Designed for longevity, the LED system achieves a lifetime of up to 50,000 hours, ensuring long-term reliability and reduced maintenance demands.
Overall, this surface-mounted LED emergency module represents a versatile and intelligent safety lighting solution, integrating efficient light distribution, digital monitoring, and robust construction into a single, compact unit that enhances both safety and operational reliability in modern buildings.
