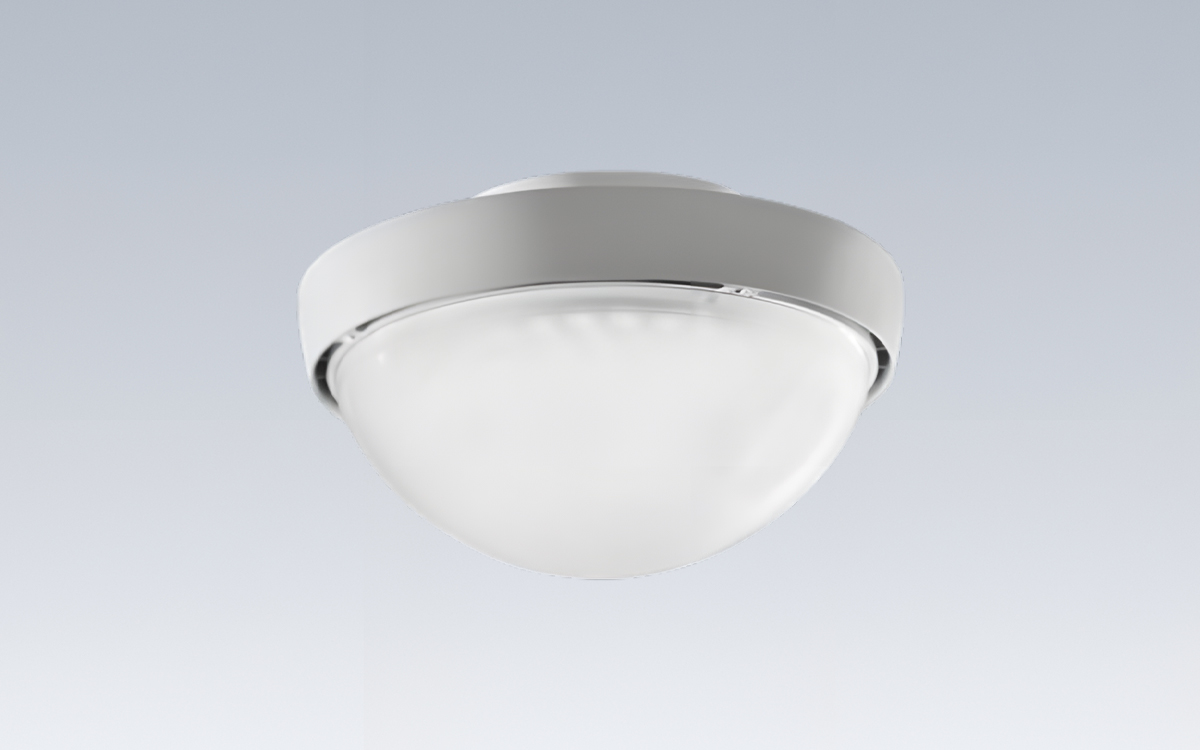

The parking garage LED light is a rugged, high-output luminaire purpose-built for demanding environments such as covered parking structures, transportation platforms, and exterior or semi-enclosed spaces. Engineered for performance, safety, and longevity, this fixture provides superior light uniformity and visual comfort, while ensuring maximum durability against environmental and mechanical stresses. Its versatile design makes it suitable for a wide variety of applications including parking garages, stairwells, multifamily housing, schools and universities, food processing facilities, and public recreational areas.
Designed with a focus on both visibility and comfort, the luminaire features a textured tertiary lens that reduces glare and incorporates an up-light component to eliminate the “cave effect,” creating a brighter, more inviting atmosphere within enclosed areas. The optical system is tailored for covered parking structures, offering Type V-Narrow or V-Square roadway distributions for precise, efficient light coverage. The UV-stabilized, high-impact resistant tertiary lens is available in 100% DR acrylic or polycarbonate options, providing excellent resistance to yellowing and degradation over time. Available lumen packages range from 5,507 to 11,470 lumens, allowing designers to meet a range of light levels and mounting heights with consistent optical performance.
The electrical system integrates a serviceable high-brightness LED array driven by a constant-current dimming driver that ensures efficiency and reliability. Operating on 120–277 VAC, 347 VAC, or 480 VAC single-phase input at 50/60Hz, the driver offers a power factor above 0.90 and total harmonic distortion below 20%. The system provides 0–10V dimming capability from 10% to 100%, and incorporates a replaceable 20kA/kV surge suppressor compliant with IEEE/ANSI C62.41 Cat. A. The fixture is also fully compliant with FCC 47 CFR Part 15, Class B for electromagnetic compatibility and meets IEC surge and electrical fast transient immunity standards.
Constructed from marine-grade die-cast aluminum and UV-stabilized polycarbonate, the housing delivers long-term durability in harsh environments. A TGIC polyester powder coat finish, applied after a five-stage pre-treatment process, provides resistance to corrosion and fading, withstanding 1,000 hours of salt spray exposure per ASTM B117. All housing interfaces are sealed with closed-cell silicone gasketing to prevent moisture ingress, while a die-cut neoprene gasket ensures a tight seal to the mounting surface. The fixture’s design also meets Build America, Buy America (BABA) compliance standards.
The luminaire carries multiple certifications, underscoring its robust performance in challenging environments. It is UL certified for Wet Location and rated IP65 per IEC 60598 standards. It operates reliably in ambient temperatures ranging from -40°C to 50°C (up to 55°C for high-output models). Tested to withstand 3G vibration per ANSI C136.31-2001 and IK10 impact protection per IEC 60068-2-75:1997-08 (with TP lens), the fixture delivers exceptional resilience in high-vibration or high-abuse settings such as transportation hubs or parking facilities.
Mounting options include direct-to-surface installation over a recessed junction box, trunnion mount, or pendant mount using ¾-inch rigid sealed conduit. Housing access is secured by tamper-resistant Torx™ fasteners for added safety and protection against unauthorized access.
The luminaire supports integration with TekLink™ lighting control systems for intelligent operation. The TekLink TL1000 and TL2000 systems enable wired or wireless communication between nodes, offering features such as occupancy sensing, daylight harvesting, scheduling, and cloud-based management with system-wide reporting and alerts. The TekLink TL50 system is an independent, luminaire-integrated solution that includes an onboard occupancy sensor, daylight response capabilities, and adjustable dimming time-out functions. Both systems comply with California Title 24-2013 and ASHRAE 90.1-2013 energy and control standards.
Backed by patented thermal management technology and verified by photometric testing to IESNA LM-79-08 standards, this parking garage light provides reliable, long-term performance, ensuring uniform light distribution, superior efficiency, and peace of mind in the most demanding architectural and infrastructure applications.
