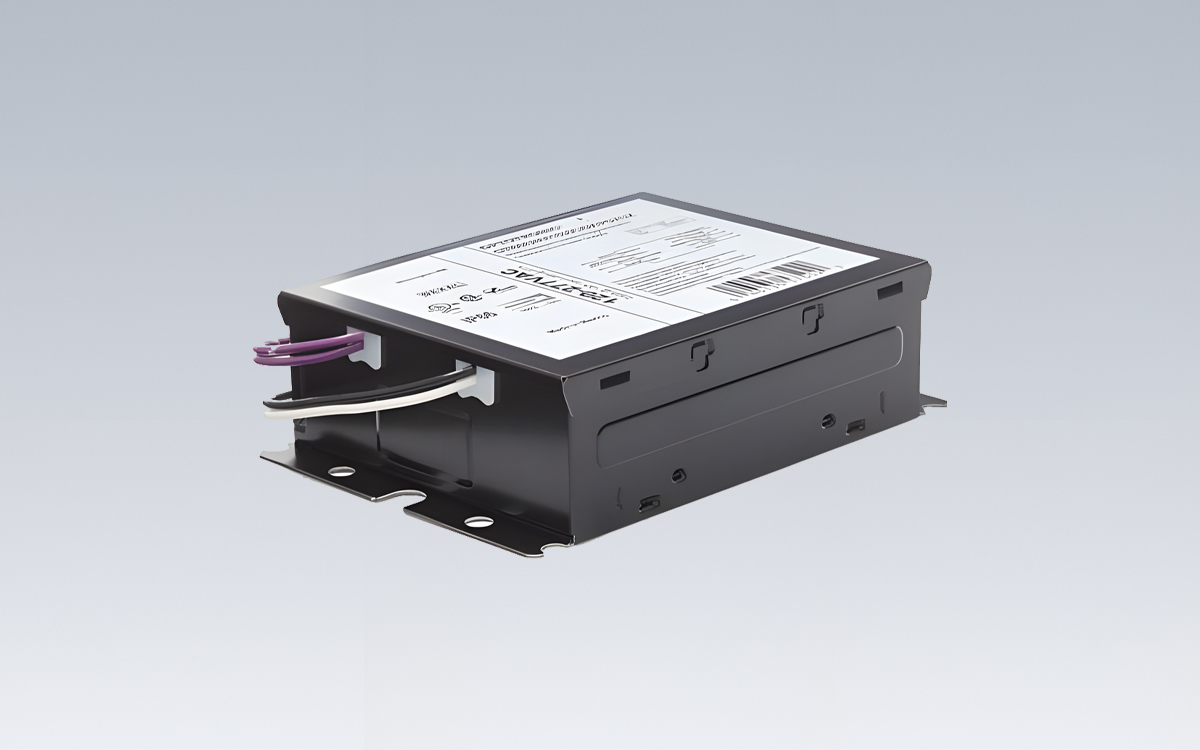

The 60W D4i-certified outdoor LED driver represents a highly intelligent and efficient power solution that utilizes an intra-luminaire interface based on DALI-2 communication standards. This advanced communication system enables seamless, bidirectional data exchange between the driver and fixture-integrated components. By transmitting precise luminaire-specific information such as diagnostics, operating status, and performance metrics to light management systems, this driver allows for smarter, more efficient lighting networks. Manufacturers can design fixtures that are both intelligent and interoperable, while simplifying configuration and integration processes through standardized DALI-2 communications.
This 60W constant current LED driver is part of a versatile family of programmable, dimmable drivers optimized for demanding outdoor applications. Each unit combines high electrical efficiency with fine-tuned customization, allowing original equipment manufacturers to configure the output current with 1mA resolution using a single-click programming interface. This precise level of control ensures that the LED load is perfectly matched for maximum performance and reliability. One of its most valuable features is the AstroDIM function—an autonomous dimming system that adjusts light output based on an internal timer. This allows nighttime power reduction without the need for external control systems and can be preprogrammed for an entire year, supporting both energy conservation and lighting quality management.
The driver family supports multiple dimming protocols, including 0–10V, DALI, and D4i, offering specification-grade dimming down to 10%, with select models capable of reaching 1% dimming for the most sensitive lighting applications. These drivers are fully compatible with standard sensors, dimmers, and energy management systems, enabling seamless integration into modern lighting infrastructures. Additional built-in programming options include Constant Lumen Maintenance (CLM) to stabilize light output throughout the system’s lifespan, LED thermal protection for component safety, and an auxiliary output (AUX) to power sensors or communication modules directly from the driver.
Constructed for outdoor durability, the 60W D4i-certified driver is built with superior transient and surge protection, including 6kV line transient protection for outdoor environments and 4kV EFT protection for industrial settings. It carries both UL Class P and IP66 ratings, ensuring safe operation in damp or exposed locations while maintaining internal protection against dust and moisture. The driver operates across universal voltage inputs, accommodating 120–277VAC and 347–480VAC systems, allowing flexibility for a wide range of installations.
Performance reliability is enhanced through precise thermal management and robust environmental design. The maximum case temperature reaches up to 90°C for certain models, while the rated ambient operating temperature ranges from -40°C to 50°C for the 60W D4i version and up to 60°C for other models in the family. These specifications ensure consistent performance in challenging climates and extreme temperature conditions.
The 60W D4i-certified outdoor LED driver is an ideal solution for a wide range of architectural and infrastructure lighting applications. It supports use in building-mounted luminaires, bollards, decorative landscape fixtures, high-mast and industrial high-bay lights, mini wall packs, roadway luminaires, cobra heads, and shoebox fixtures. By combining precise programmability, integrated data communication, robust protection, and wide environmental compatibility, this driver enables manufacturers and system integrators to deliver outdoor lighting systems that are both intelligent and enduring, perfectly suited to the evolving requirements of modern lighting control networks.
