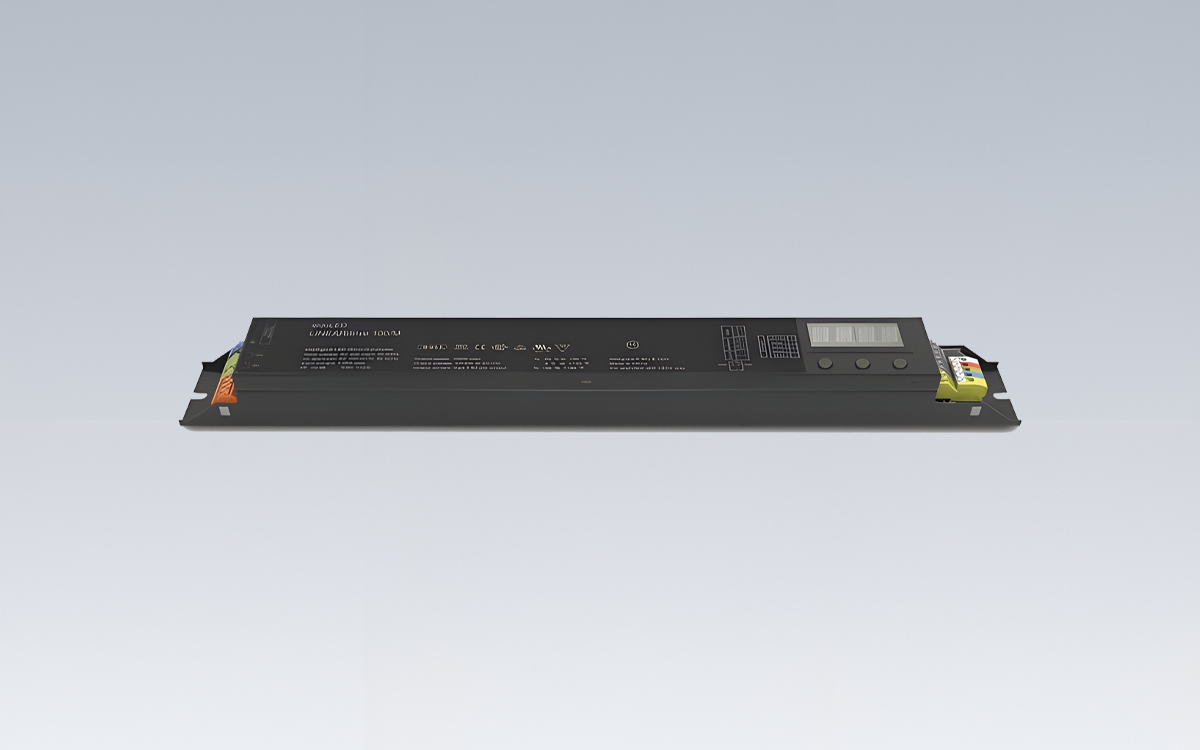

The LINEARdrive series offers a high-performance LED driver solution for low-voltage lighting applications, providing infinite color control and dynamic lighting effects for a wide range of projects. These drivers are capable of handling LED strips of single color, Tunable White, or full RGBW color, making them ideal for both accent and entertainment lighting applications. With integrated control functionality, LINEARdrive drivers allow users to create intricate light shows and scenes without requiring an external controller, while maintaining seamless operation with compatible LED modules, controls, and intelligent luminaire components through Symbiosis technology.
With a maximum output of 100W, these constant voltage LED drivers deliver flicker-free dimming down to 1% using either DALI or DMX protocols. Their universal input voltage range accommodates AC 120–277V or DC 120–275V, supporting a variety of installation environments. At full load, the drivers maintain a power factor greater than 0.94 and total harmonic distortion below 10%, ensuring efficient and reliable performance. Input characteristics include a maximum AC input current of 1.05A at 120V, a frequency range of 50–60Hz, inrush current of 35A at 120V, and surge protection up to 4kV between line/neutral and ground. Standby power is exceptionally low at less than 0.5W, contributing to overall energy efficiency.
LINEARdrive supports up to four LED outputs, accommodating RGB and RGBW configurations at 12V or 24V. Maximum output currents range from 1A to 2.8A per channel depending on the voltage and configuration, with UL Class 2 compliance providing a safe operating envelope for each output. The total LED output power is rated at 100W, and the driver is designed to integrate proper circuit protection to prevent damage from excessive output current, aligning with the nominal and inrush current requirements of the connected LEDs.
Control is facilitated through four channels using DMX/RDM protocols, providing a dimming range from 100% to 0.1%. The drivers offer three dimming curve options—logarithmic (default), linear, and square—allowing precise adjustment of light intensity to match the desired effect. The HydraDrive dimming method ensures smooth, flicker-free transitions across all outputs, while a simple three-button user interface on the driver provides convenient configuration and control.
Overall, LINEARdrive LED drivers deliver versatile, high-quality lighting solutions that combine professional-grade performance, user-friendly programmability, and compatibility with a wide range of low-voltage LED applications. They are ideal for projects requiring precise color control, dynamic effects, and seamless integration with intelligent lighting systems.
