The independent fixed output LED driver is built to meet the demands of modern lighting systems, supporting luminaires of protection class II and conforming to standards for luminaires with M and MM classifications according to EN 60598, VDE 0710, and VDE 0711. The driver includes temperature protection in accordance with EN 61347-2-13 C5e and allows selectable fixed output currents of 900, 950, 1,000, and 1,050 mA, with a pre-selected current of 900 mA. It achieves a maximum output power of 42 W and delivers up to 91 percent efficiency. The driver is rated for a nominal lifetime of up to 100,000 hours, ensuring long-term reliability and consistent performance across various applications.

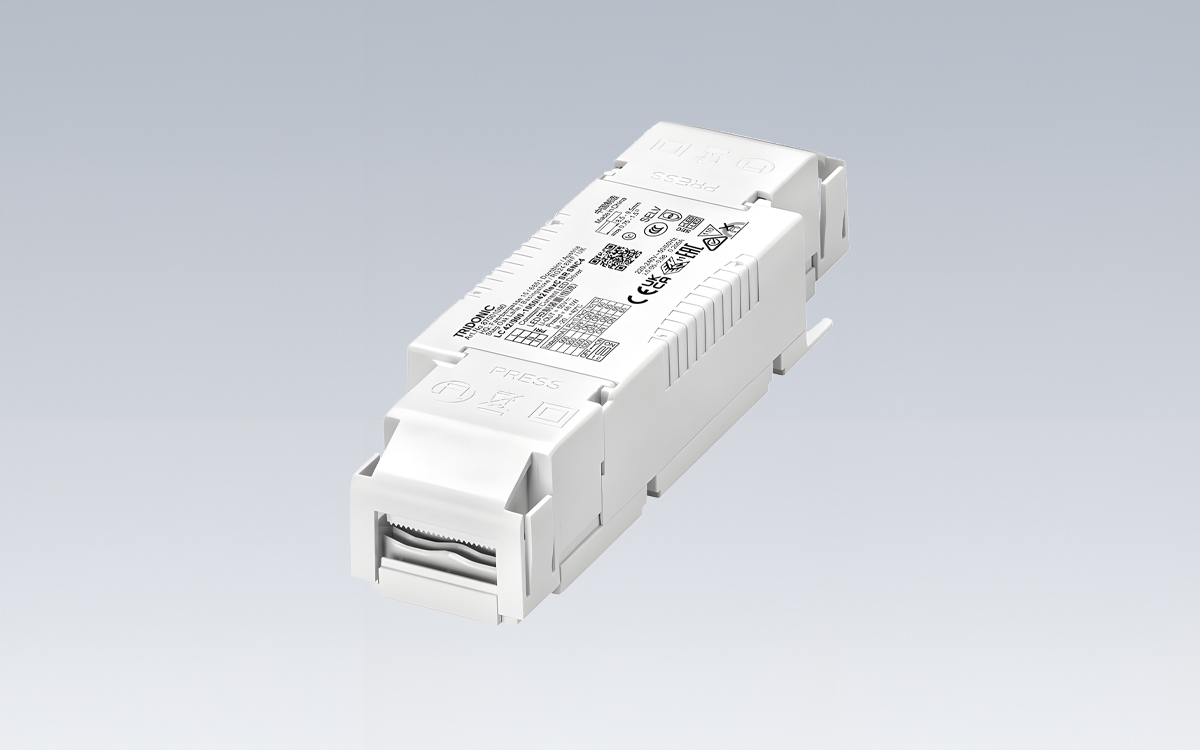

Housed in a robust polycarbonate casing finished in white, this LED driver is designed for independent installation with IP20 protection, making it suitable for indoor environments. It features 45° push terminal blocks for straightforward wiring and installation. The driver incorporates comprehensive safety and protective functions, including overload protection, short-circuit protection, no-load protection, and overtemperature protection. Electrical surge and burst protections are also integrated, providing 1 kV burst protection both overall and between line and neutral, along with 2 kV surge protection between line/neutral and earth.
This LED driver is ideally suited for spotlights and downlights in retail and hospitality applications, as well as LED panel lights in office and educational settings. Its operating window covers supply voltages from 220 to 240 V AC, with a voltage range of 198 to 264 V and mains frequencies of 50 or 60 Hz. The driver withstands overvoltage up to 320 V AC for two hours and draws a typical input current of 205 mA at full load. Its typical power consumption is 46.5 W at full load, with a minimum output power of 21.6 W. Efficiency reaches 91 percent under standard operating conditions, with a power factor (λ) ranging from 0.95 to 0.98 across the full operating range and a total harmonic distortion below 15 percent.
The driver responds rapidly to AC power, starting in less than 0.5 seconds and turning off in the same timeframe. Output current tolerance is maintained at ±7.5 percent, with non-repetitive peak output currents limited to 12 percent above the rated current. Low-frequency output current ripple remains within ±5 percent, while output parameters, including P_ST_LM and SVM, are optimized for compliance with lighting quality standards. Maximum output voltage is 55 V, and the driver provides mains surge capability of 1 kV between line and neutral and 2 kV between line/neutral and PE, with an additional 3 kV surge voltage protection on the output side.
The driver is rated for ambient temperatures of up to 40 °C at half its nominal lifetime and can be stored safely between -40 and 80 °C. Compact in size, it measures 147 mm in length, 43 mm in width, and 30 mm in height, allowing seamless integration into diverse luminaire designs. The product is backed by a 5-year guarantee and is specified for a total operational lifetime of up to 100,000 hours, ensuring a reliable and durable solution for commercial and institutional lighting installations.
