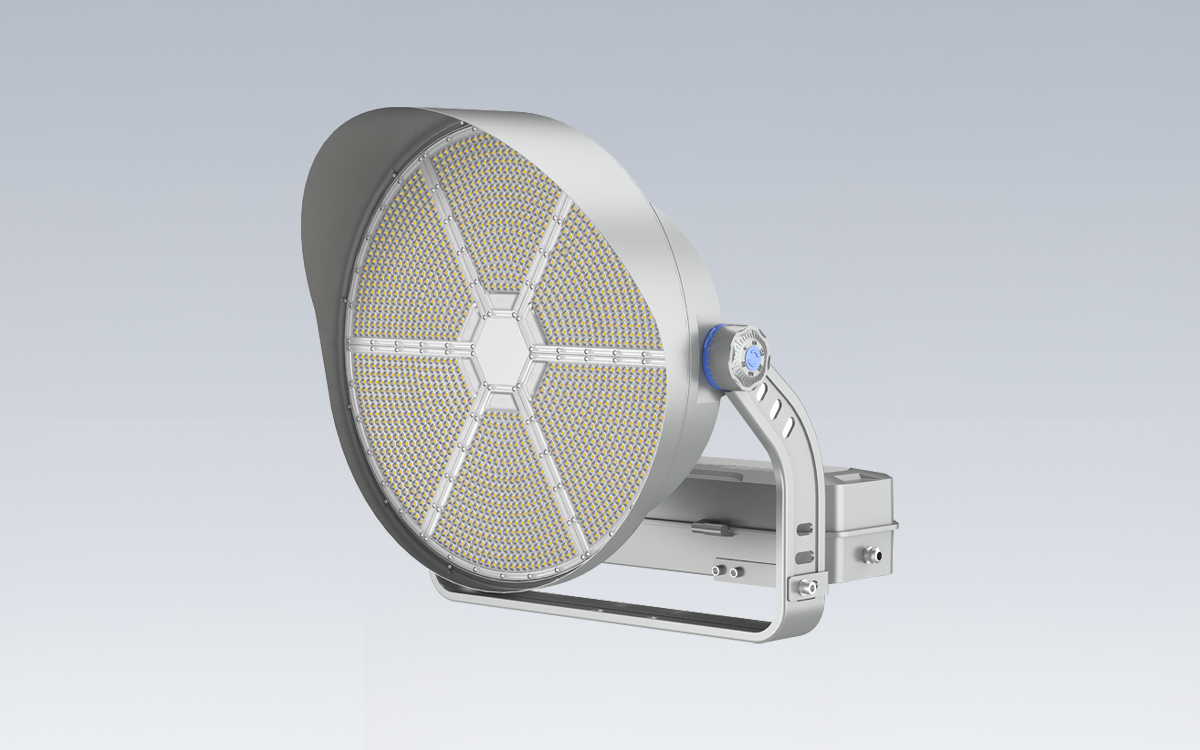

The FL10 high-power LED flood light series provides a professional solution for high mast and large-area lighting applications, including sports stadiums, airports, docks, and other expansive venues. Constructed from ADC12 die-cast aluminum and treated with an advanced surface process, the fixtures deliver excellent thermal management and corrosion resistance, ensuring stable performance and long-term durability in demanding outdoor environments. The series supports multiple beam angles, including 10°, 15°, 25°, 45°, 60°, and 90°, accommodating a wide range of venue sizes and lighting distribution requirements. An optional toughened glass cover reduces the impact of UV rays on the optical system, maintaining consistent performance over time.
FL10 luminaires achieve a high luminous efficacy of 150 lm/W, with exceptional color rendering index (CRI) and television lighting consistency index (TLCI), meeting the precise visual demands of sports venues and other professional applications. The series incorporates a tool-less LED driver box that can be remotely mounted, streamlining commissioning, maintenance, and replacement. A built-in visor design minimizes light spillage, reducing light pollution and enhancing optical control. Optional configurations include tempered glass and DALI drivers to support custom control setups and flexible installation requirements.
The FL10 series covers a wide power range from 400W to 1200W, with lumen outputs spanning 60,000 LM to 180,000 LM depending on the model. LUMILEDS LEDs are used across all models, with varying quantities and sizes to suit specific beam angles and power requirements. Input voltage ranges from 100–240V AC to 277V AC at 50/60 Hz, and the power factor exceeds 0.95. Surge protection is provided at 10 kV by default, with 20 kV available upon request. Total harmonic distortion (THD) is maintained below 15%, and driver efficiency exceeds 92%, ensuring consistent electrical performance.
All FL10 fixtures carry an IP66 rating for water and dust resistance and an IK08 rating for mechanical impact protection, making them suitable for demanding outdoor environments. The housings are die-cast aluminum, and the fixture covers are available in PC lens or optional glass materials. Lifespan is rated at 100,000 hours, offering long-term reliability and minimal maintenance. Fixture sizes range from 521 × 511 × 393 mm for 400–600W models to 680 × 660 × 442 mm for 800–1200W models, with net weights of 20.05 kg and 33.3 kg, respectively, and corresponding gross weights of 22.22 kg and 38.1 kg.
