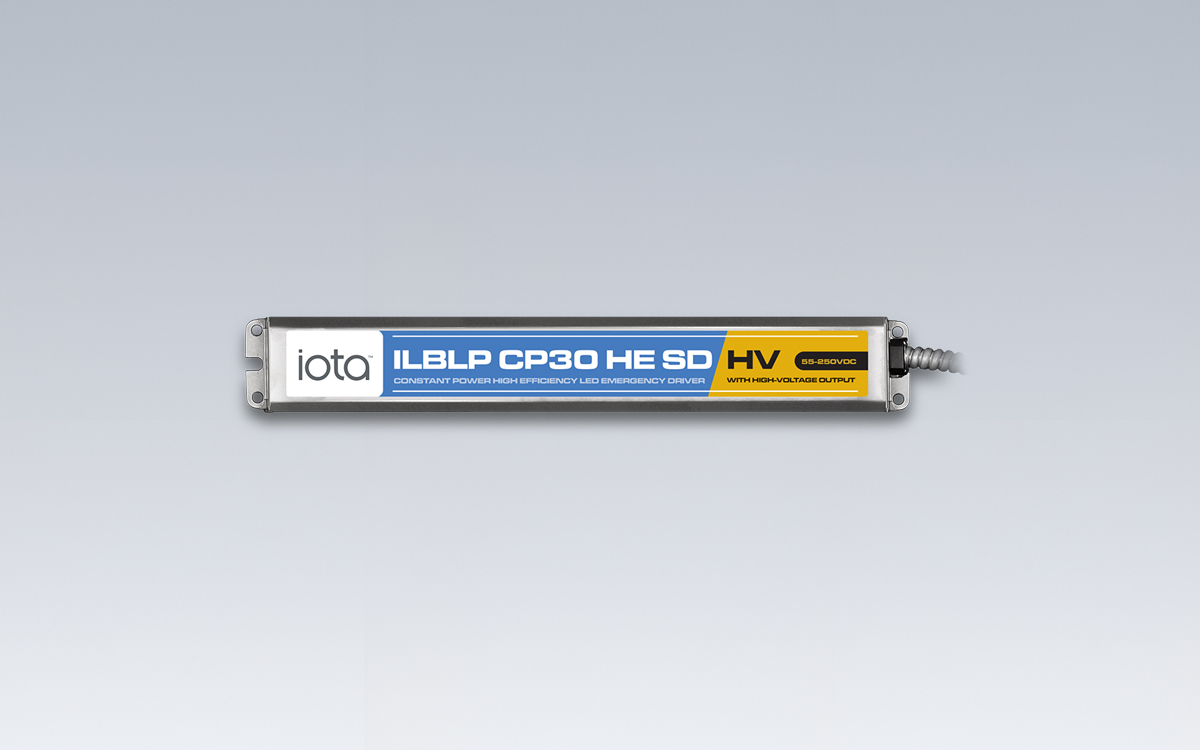

The IOTA ILBLP CP30 HE SD HV is a UL Listed emergency LED driver suitable for both field and factory installation. It allows LED fixtures with 55–250 VDC Non-Class 2 loads to operate seamlessly under normal and emergency conditions. In the event of a power outage, the unit automatically switches to emergency mode, providing up to 90 minutes of continuous operation from its integrated battery. The driver combines a battery, charger, and converter circuit in a single, durable enclosure, and offers flexible wiring options with either single or dual conduits for connection to the fixture and remote test accessories.
The ILBLP CP30 HE SD HV incorporates a patented Constant Power design, which ensures that the LED array receives a consistent 30 W output even as battery voltage decreases, maintaining uniform illumination throughout the full emergency runtime. It utilizes lithium iron phosphate (LiFePO4) battery technology, significantly reducing the physical footprint compared to traditional emergency drivers, while remaining maintenance-free and high-temperature recyclable. Automatic monthly and annual self-testing features are standard, and the system provides visual self-diagnostic status through a single-piece test accessory that can be remotely mounted up to 25 ft from the driver.
This emergency LED driver includes an auto-sensing Non-Class 2 output, capable of adjusting across a 55–250 VDC range to accommodate a wide variety of forward voltage designs. The high-output 30 W emergency mode is ideal for elevated mounting heights and high-bay fixtures. Certified for California Title 20, the unit meets CEC energy efficiency standards for small battery chargers and ensures constant illumination without degradation over the emergency runtime. Its self-diagnostic and self-test capabilities satisfy NFPA 101 periodic testing requirements and provide continuous readiness monitoring with clear visual indicators.
Constructed from durable galvanized steel, the ILBLP CP30 HE SD HV features UL 924 Listing for both the U.S. and Canada. It offers multiple mounting configurations, supports both switched and unswitched fixtures, and includes AC-Activate circuitry that eliminates the need for manual battery connections during installation. The single-piece test switch and charge indicator can be mounted remotely for added convenience. Designed for versatile applications, the driver is suitable for use in plenum spaces, damp locations, recessed IC-type fixtures, and enclosed or gasketed luminaires. The unit carries a five-year warranty, complies with all NEC, IBC, and Life Safety Code emergency lighting requirements, and meets RoHS environmental standards.
Operating specifications include a voltage rating of 120–277 VAC at 50/60 Hz, an output voltage range of 55–250 VDC, a maximum operating temperature of 55 °C, a minimum operating temperature of 0 °C, a battery recharge time of 24 hours, and an AC-activated lithium iron phosphate battery capable of 90 minutes of emergency runtime. The unit is fully tested and certified under C-UL-US and cUL regulatory listings.
