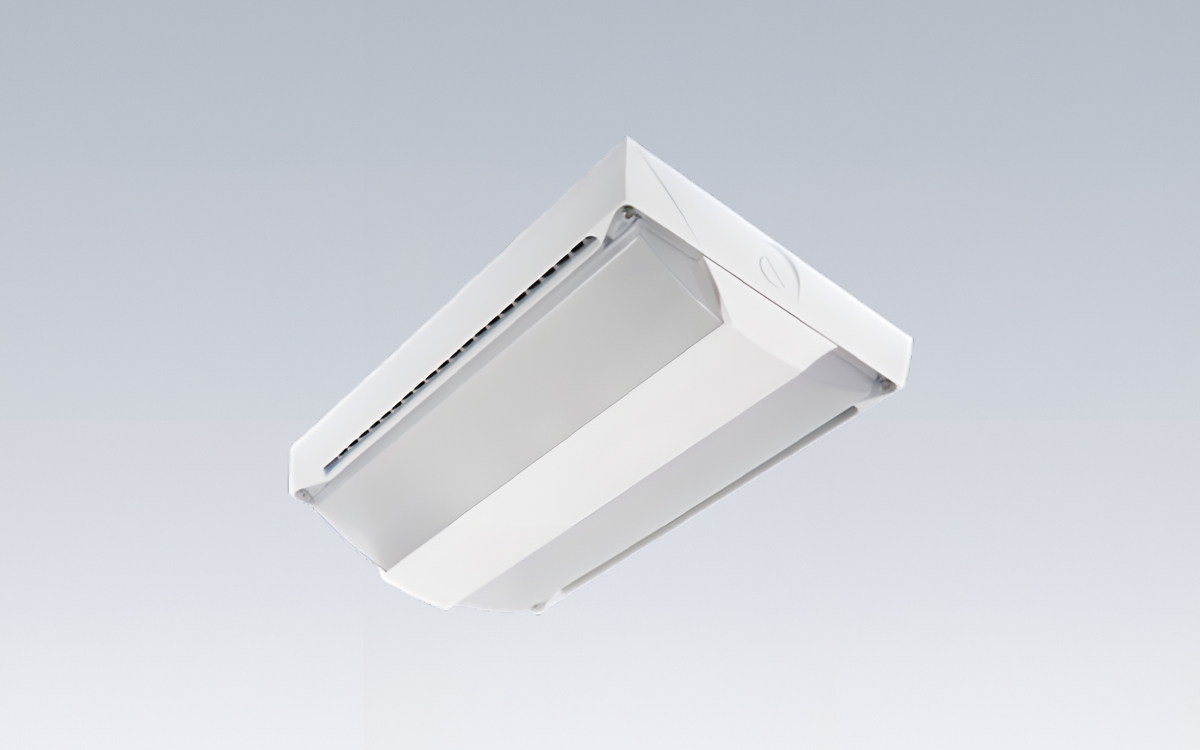

The Millenium OS high-abuse light is a durable and intelligent LED lighting solution developed for demanding environments such as parking garages, stairwells, schools, universities, corridors, and other high-traffic or vandal-prone areas. Built to withstand physical impact, moisture, and temperature variation, this luminaire maintains performance and reliability while supporting sophisticated lighting control capabilities. It is Wet Location Listed, IP65 rated, and meets NFPA 101 standards for safety and emergency applications. The fixture is available in 2,250-lumen and 4,450-lumen configurations, both using a diffused LED source that minimizes glare while maintaining optical efficiency.
The light incorporates a fully enclosed, integral occupancy sensor utilizing 5.8GHz High-Frequency Doppler (HFD) technology. This advanced sensing method provides superior coverage and reduced temperature sensitivity compared to traditional passive infrared (PIR) systems, making it especially effective in stairwells and enclosed spaces. The sensor is completely sealed to maintain the fixture’s IP65 rating and Wet Location compliance, while also meeting EMC standards under FCC CFR Part 15. Adjustable parameters allow users to fine-tune coverage sensitivity, time-out duration from 10 seconds to 30 minutes, and standby dimming levels from 50% to as low as 10% output. For projects using centralized lighting management, the occupancy sensor may be omitted, enabling compatibility with external 0-10V dimming control systems such as Kenall SmartSense™.
The electrical system integrates a replaceable mid-power LED array available in multiple color temperatures and CRI options. Power is supplied by a replaceable, high power factor electronic constant-current dimming driver, supporting 120–277VAC at 50/60Hz. The driver achieves over 85% efficiency with less than 20% total harmonic distortion and a power factor greater than 0.90. Built-in 20KV/KA surge protection complies with IEEE/ANSI C62.41 Category A standards, ensuring long-term durability in electrically challenging environments.
The housing is constructed from marine-grade die-cast aluminum combined with injection-molded polycarbonate components. An integral aluminum heatsink with concealed air inlets and convection fins helps manage thermal performance. The housing is coated with a TGIC polyester powder finish, applied through a five-stage pre-treatment process that has been tested to withstand 1,000 hours of salt spray exposure. Closed-cell neoprene gaskets seal the fixture to the mounting surface, while closed-cell silicone gaskets seal the diffuser to the housing for reliable moisture protection.
Installation is suitable for surface mounting to ceilings or walls, secured by a four-point mounting system required for the manufacturer’s Peace of Mind Guarantee™. The fixture operates in ambient temperatures ranging from -20°C to 25°C, depending on configuration. Lens options include UV-stabilized, injection-molded clear textured diffusers made from either 100% DR acrylic or polycarbonate. Both options provide high impact resistance and exceptional light transmission, achieving greater than 97% internal reflector efficiency. The lens is fastened with four tamper-resistant Torx® screws to ensure vandal resistance.
The Millenium OS luminaire carries UL certification for Wet Location use, verified by Intertek Testing Laboratories, and meets IP65 performance requirements under IEC 60598. It is ADA compliant and rated IK10 for impact protection per IEC 60068-2-75:1997-08 (when specified with the TP lens type). The fixture also complies with the Build America, Buy America Act (BABA), supporting U.S.-manufactured construction standards.
For connected lighting control, the system integrates with TekLink™ TL1000 and TL2000 platforms—cloud-based adaptive lighting networks that enable wired (TL1000) or wireless (TL2000) communication between luminaires, sensors, and control gateways. Each fixture incorporates a luminaire-level controller known as a BORG (Board on Radio Grid), which records data, monitors occupancy, and manages lighting behavior according to programmable schedules. TL1000 BORGs communicate via wired, shielded twisted pair connections using the CAN bus protocol, while TL2000 BORGs operate wirelessly at 900 MHz under the IEEE 802.15.4 standard.
Each TekLink Sensor operates on low-voltage power supplied by the BORG or LED driver and provides reliable microwave-based occupancy detection. Through a web browser interface, system administrators can configure the network, monitor lighting power consumption, review occupancy events, and adjust lighting parameters remotely. Whether operating in standalone mode or integrated with a larger smart lighting system, the Millenium OS high-abuse light combines resilience, controllability, and energy-conscious functionality tailored to meet the challenges of modern public, institutional, and commercial spaces.
https://kenall.com/Products/MOS18.htm
