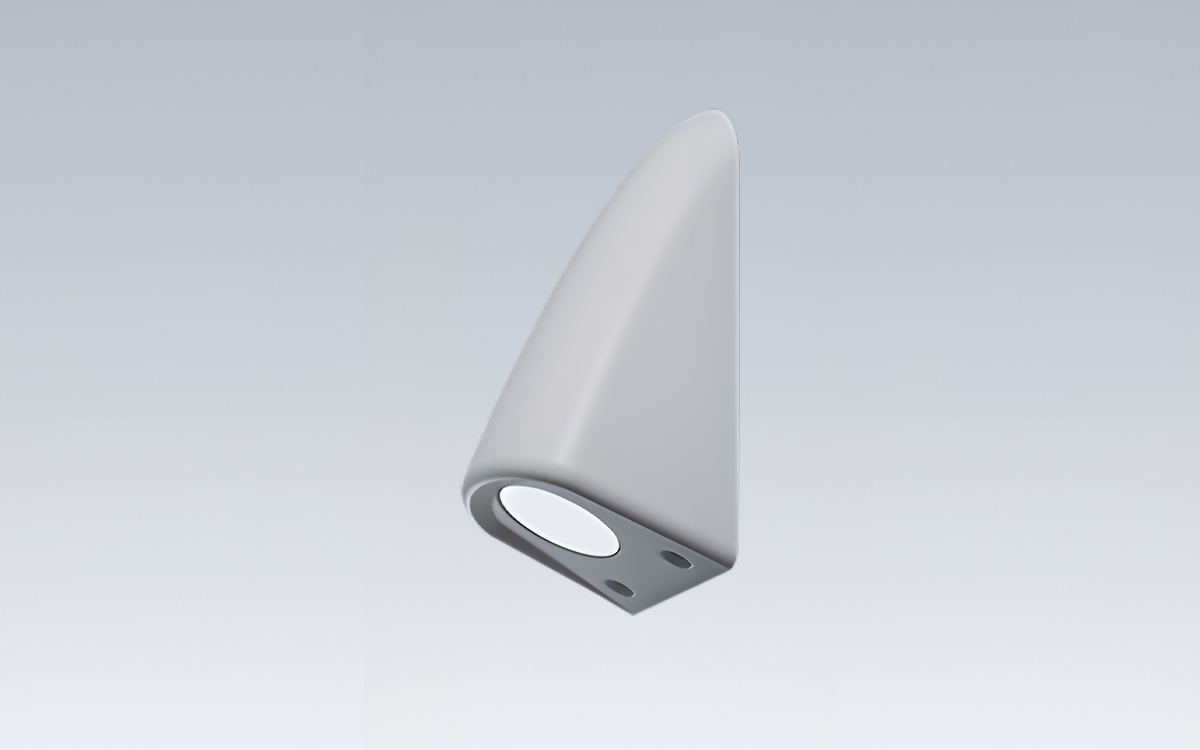

The MedMaster KUE wall mount task light is a robust and versatile solution for healthcare environments, particularly suited for behavioral health, patient rooms, and dormitory settings. This vertically oriented, wall-mounted luminaire combines durability, safety, and functionality to meet the demanding needs of high-abuse and high-risk spaces. Its one-piece die-cast aluminum housing ensures long-lasting performance while concealing tamper-resistant mounting hardware to maintain both security and aesthetic integrity. The luminaire supports both integral and remote driver configurations, providing flexibility in installation and power management, and allows On/Off and intensity control through either capacitive touch or external 0-10V dimming. It offers standard 90 CRI for accurate color rendering, with narrow and wide optical distributions to suit varying task and ambient lighting requirements, while achieving IK10+ impact resistance, NSF2 certification, and IP65 ingress protection. The fixture is fully ADA compliant, ensuring accessibility in all applicable healthcare settings.
The task light is suitable for dorm rooms, patient rooms, and behavioral health applications, providing safe, reliable, and visually comfortable lighting in spaces that require both resilience and functionality. Its electrical options include 120-277VAC, 50/60Hz, or 24VDC input configurations. When paired with a remote power supply accessory, multiple units can be powered from a centralized source. The luminaire accommodates external 0-10V dimming with a 1-100% range and dim-to-dark capability following a logarithmic dimming curve, while capacitive touch control provides step dimming at 100%, 33%, 10%, and 0% levels, offering intuitive and precise lighting control directly at the fixture.
The housing consists of a single die-cast aluminum unit finished with TGIC polyester powder coat applied over a five-stage pre-treatment. The standard anti-microbial matte white finish ensures hygienic operation, while optional finishes, including custom RAL colors, provide design flexibility. Installation requires the mounting plate to attach to a vertically oriented NEMA single-gang junction box (provided by others). For high-abuse or high-risk behavioral health applications, the Reinforced Mounting Hardware Kit (HD) allows secure attachment directly to wall structures. The housing assembly mounts to the plate with an upper hook and two 8-32 countersunk tamper-resistant Torx® fasteners, ensuring a secure and vandal-resistant installation.
The luminaire incorporates a serviceable high-power LED module, offering a minimum of 90 CRI with R9 values exceeding 50, and available in standard color temperatures with custom options available upon request. Its diffused 0.250" polycarbonate lens is installed flush with the housing surface and includes a continuous circumferential seal for environmental protection. Optical distributions are available in focused narrow (F) and wide lambertian (W) patterns, allowing tailored light output for specific task and ambient requirements.
MedMaster KUE wall mount task lights are certified to UL standards by Intertek Testing Laboratory for indoor wet location use and achieve an IP65 rating per IEC 60598. The remote driver accessory carries UL and CUL Class P listing. The fixture is NSF2 rated for Splash/Non-Food Zone compliance, ADA compliant, and tested to an IK10 impact protection rating under IEC 60068-2-75:1997-08. Photometry has been rigorously tested in accordance with IESNA LM-79-08 standards by an ILAC/ISO17025 accredited laboratory, ensuring reliable, performance-verified light output suitable for healthcare environments.
