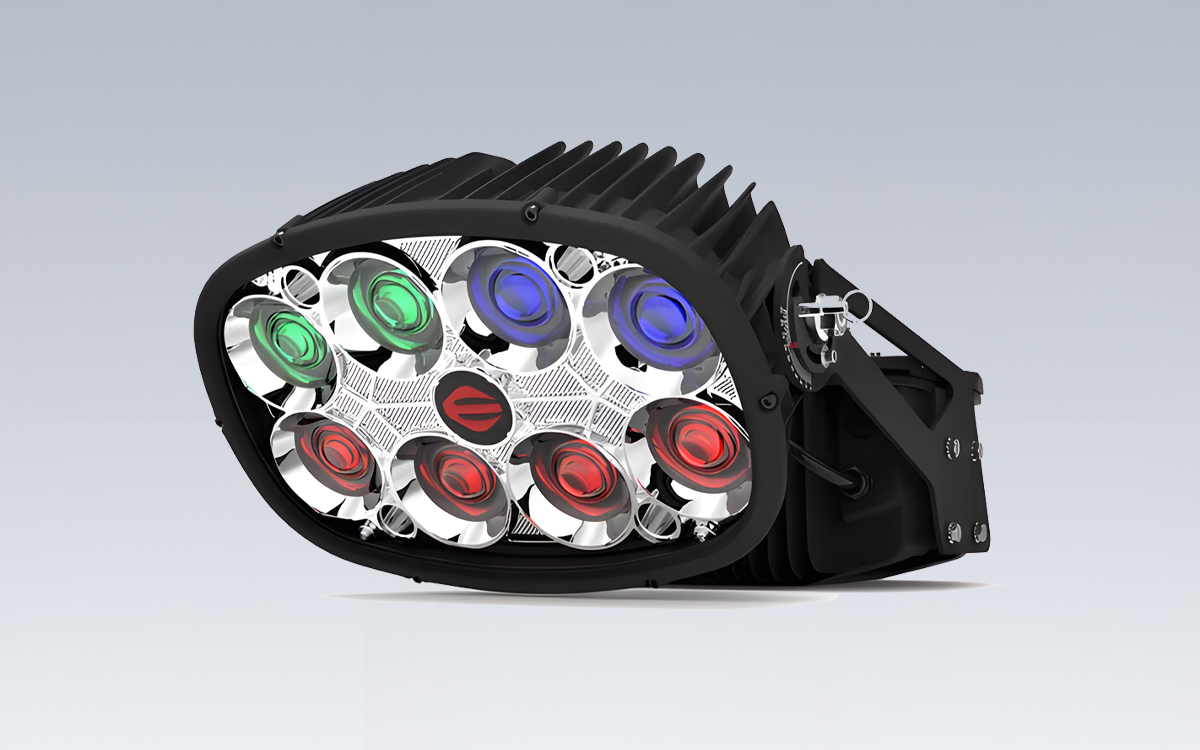

The Ephesus LUMASPORT 8 Prism represents the next generation of professional RGB LED sports lighting systems, purpose-built to elevate the visual experience across arenas, stadiums, and recreational facilities. This fully tunable solution combines vivid color performance, precise optical control, and installation efficiency within a unified, turn-key system. Designed for both new and retrofit applications, the LUMASPORT 8 Prism introduces a balance of exceptional light quality and long-term reliability, ensuring optimal visual conditions for players, fans, and broadcasters alike.
At the core of its performance is a fully tunable RGB LED platform that delivers an expansive spectrum of vibrant, deeply saturated colors for immersive game-day environments. Through custom source selection and refined color-mixing technology, the system achieves full-spectrum output—producing true-to-life tones that transform standard sports lighting into a dynamic, theatrical experience. Whether enhancing pre-game presentations, in-game effects, or post-event celebrations, the LUMASPORT 8 Prism allows complete creative control through its DMX and wireless AirMesh compatibility, giving venue operators flexibility to adapt lighting in real time.
The fixture’s patented Hybrid Reflector and TIR Optical System ensure precise light placement while effectively controlling glare and cutoff. A range of optical distributions, from narrow to wide, supports uniform illumination across varying field geometries, delivering balanced visibility and minimizing hotspots. Built with Chip-on-Board LED technology, the luminaire achieves exceptional reliability and lumen stability, maintaining consistent output over extended operational life. Its integrated glare-control optics and multi-layer design make it ideal for applications where visual comfort and broadcast-grade performance are essential.
Installation efficiency is further enhanced by the LUMASPORT 8 Prism’s pre-aimable, two-piece assembly that simplifies mounting and reduces setup time. Its Quick Mount aiming design enables pre-set tilt angles and reference markings for accurate lateral alignment, streamlining retrofits of traditional 1500-watt metal halide systems. The fixture’s modular design supports multiple mounting configurations—including local yoke, local pendant, and catwalk bracket options—making it suitable for both indoor and outdoor installations in venues of any scale.
With a nominal power of 536 watts, the luminaire operates across a wide voltage range from 120 to 480VAC, accommodating both low- and high-voltage infrastructures. It provides smooth dimming from 10% to full output, including a dim-to-off function for precise control in performance and event lighting scenarios. The system meets rigorous safety and performance standards, carrying FCC, UL8750, and UL1598 certifications, and ensures resilience under demanding conditions with IP66 and NEMA 4X environmental ratings. Designed to withstand harsh environments, it performs reliably within a temperature range of -40°C to +40°C and endures vibration conditions meeting ANSI C136.31-2010 1.5G standards.
The fixture’s rugged build and advanced electronics include 10kV surge protection for electrical stability, while its compact form factor maintains an effective projected area (EPA) between 1.8 and 2.5 square feet, depending on configuration. Weighing approximately 72.5 pounds, the LUMASPORT 8 Prism achieves a balance between structural robustness and ease of handling during installation.
Combining color-rich performance, precision optics, robust construction, and simplified installation, the Ephesus LUMASPORT 8 Prism stands as a comprehensive solution for modern sports lighting. Its blend of visual impact, reliability, and system versatility makes it an ideal choice for schools, municipalities, and professional venues seeking to enhance both game presentation and energy control without compromise.
