The fixed output LED driver is a robust and versatile constant current power solution suitable for both built-in and independent installations. It can be used directly within luminaires or configured as a standalone unit using a clip-on strain-relief and cable clamps. This flexibility makes it highly adaptable to a range of lighting systems across protection classes I and II. The driver complies with EN 61347-2-13 C5e temperature protection standards, ensuring consistent and safe operation even under demanding thermal conditions. Supporting selectable fixed output currents of 700, 800, 900, 1,050, 1,100, 1,200, 1,300, and 1,400 mA, it allows fine-tuned matching to different LED modules and luminaire configurations. The pre-selected current of 700 mA enables immediate deployment, while users can easily modify the current level to meet application-specific requirements. Delivering a maximum output power of 61.6 W, the driver maintains a high operational efficiency and a long nominal lifetime of up to 100,000 hours, ensuring reliable performance over years of continuous use.

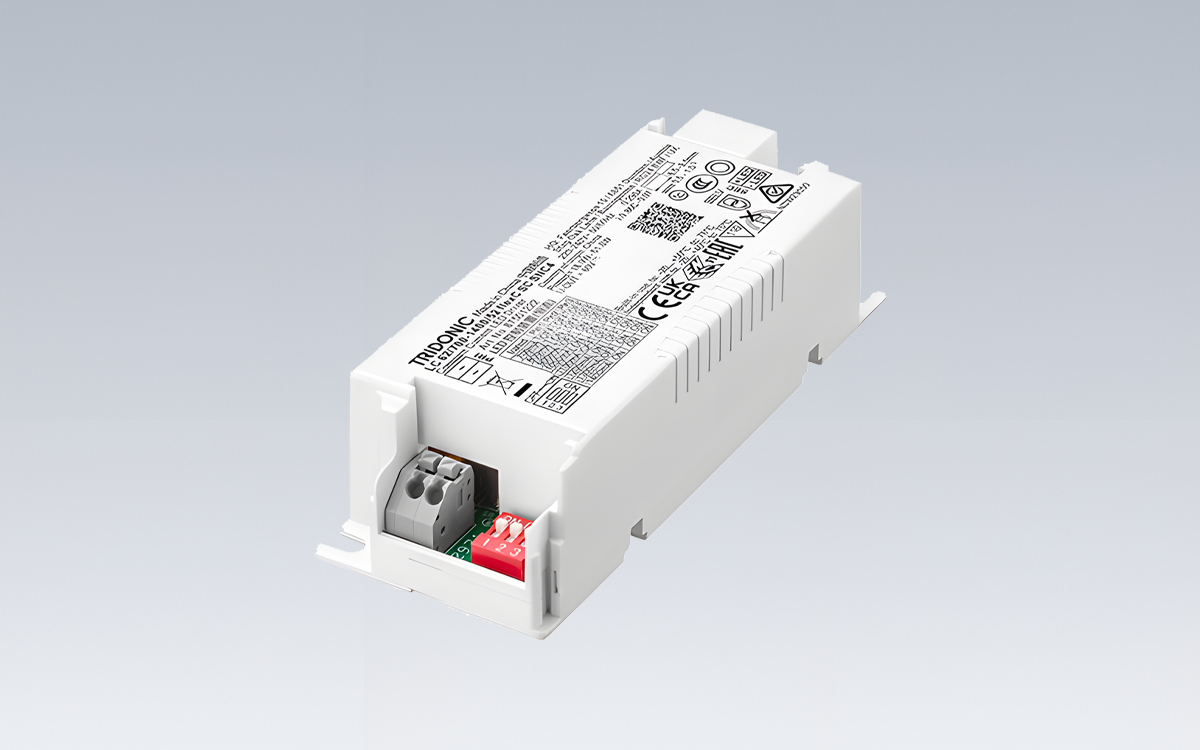

Constructed from durable white polycarbonate, the driver’s housing is compact yet sturdy, ensuring both safety and installation flexibility. It carries an IP20 protection rating, suitable for indoor environments such as offices, classrooms, retail stores, and hospitality venues. The inclusion of clip-on strain-relief and secure cable clamps enhances safety during independent operation, while the low-profile design allows convenient integration into luminaires or ceiling voids.
The driver incorporates multiple protection functions to safeguard both the driver and connected LEDs. These include overload, short-circuit, no-load, and overtemperature protection, preventing potential damage from power fluctuations or environmental stress. Such protective features make the driver an ideal choice for demanding lighting environments where reliability and system longevity are priorities.
Its high power quality is evident in its electrical specifications. The driver operates on a rated supply voltage of 220–240 V within an AC range of 198–264 V and supports both 50 and 60 Hz mains frequencies. It withstands overvoltage conditions up to 320 V AC for 48 hours, maintaining stability and safety under transient line surges. With a typical power consumption of 66.5 W and an efficiency of 91% at full load, it ensures optimal power use while minimizing electrical losses. The power factor (λ) remains strong across the operating range, reaching up to 0.97, and total harmonic distortion (THD) stays below 10% for clean, stable operation.
The driver’s electrical behavior further enhances performance consistency. It starts and turns off rapidly—within 0.5 seconds at full load—and provides no residual output during power failure, ensuring predictable operation. The output current tolerance of ±7.5% and low-frequency current ripple of ±5% support steady LED brightness without visible flicker, while the P_ST_LM and SVM metrics of ≤1 and ≤0.4, respectively, confirm compliance with flicker-free lighting standards. The driver also offers strong transient protection, including 1 kV surge capability between line and neutral, 2 kV between line/neutral and protective earth, 1 kV mains burst capability, and 3 kV surge voltage at the output side.
Thermal resilience is another strength of this driver, supporting ambient operating temperatures up to 50°C for a 50,000-hour lifetime and storage conditions from -40°C to 80°C. Measuring 115 mm in length, 43 mm in width, and 30 mm in height, it fits easily into compact lighting enclosures or shallow ceiling spaces.
This fixed output LED driver is particularly well-suited for spotlights and downlights used in retail and hospitality applications, as well as panel and area lighting in office and educational settings. Combining high efficiency, broad current adjustability, strong surge protection, and a 5-year guarantee, it provides an ideal power solution for professionals seeking reliability and longevity in modern LED lighting systems.
