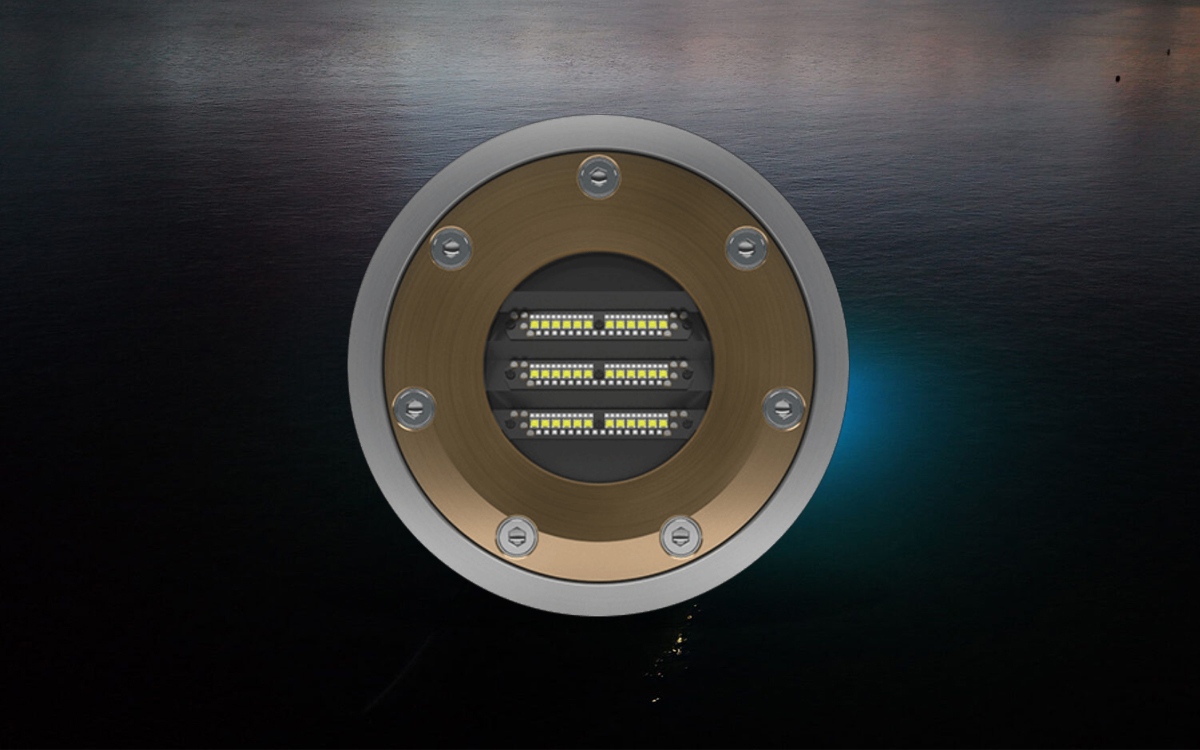

The SY310 Louvre weld-in underwater light removes the need for long, angled flanges of varying degrees by utilizing a patented, louvered LED array that can be internally angled to optimize light output at any location, regardless of the hull angle. This innovative design allows for precise beam direction without compromising installation flexibility.
Supplied as a pressure-tested, fully assembled light unit, the SY310 significantly simplifies the installation process, saving both time and costs. Designed for external installation and maintenance, this model features an ultra-slim profile and an external driver, making it suitable for installation within tanks such as water or fuel tanks, or in other inaccessible areas without requiring additional cofferdams. It can be installed alongside the internally maintained SY300 model to create a continuous, uninterrupted halo of underwater light around any vessel. Both models are compatible with aluminum and steel hull vessels, ensuring broad applicability across various yacht types.
The SY310 delivers a powerful 20,000 verified fixture lumens and a total output of 45,000 lumens, offering dual-color options with blue and white or white and warm white LEDs. The fixture boasts an ultra-wide 110° beam angle that provides expansive underwater illumination. It incorporates a high-performance HICOB LED array with a typical lifespan exceeding 50,000 hours, ensuring long-lasting and reliable operation.
Built to the highest marine standards, the SY310 carries full Lloyd’s, ABS, and DNV Type Approvals, including essential safety-critical EMC and EMI compliance testing. An optional three-year warranty is also available, emphasizing its quality and durability. The flange is available in either aluminum or stainless steel, providing corrosion resistance suitable for harsh marine environments. The light operates on a 90-240 V AC supply with a maximum current draw of 1.8 amps and uses an external driver for efficient power management.
Control options for the SY310 are extensive, supporting system integration and wireless control to meet the demands of modern vessel management systems. The light supports multiple user modes, including white only, blue only, selectable white and blue, strobe input, and brightness adjustment, offering full customization of the underwater lighting experience.
