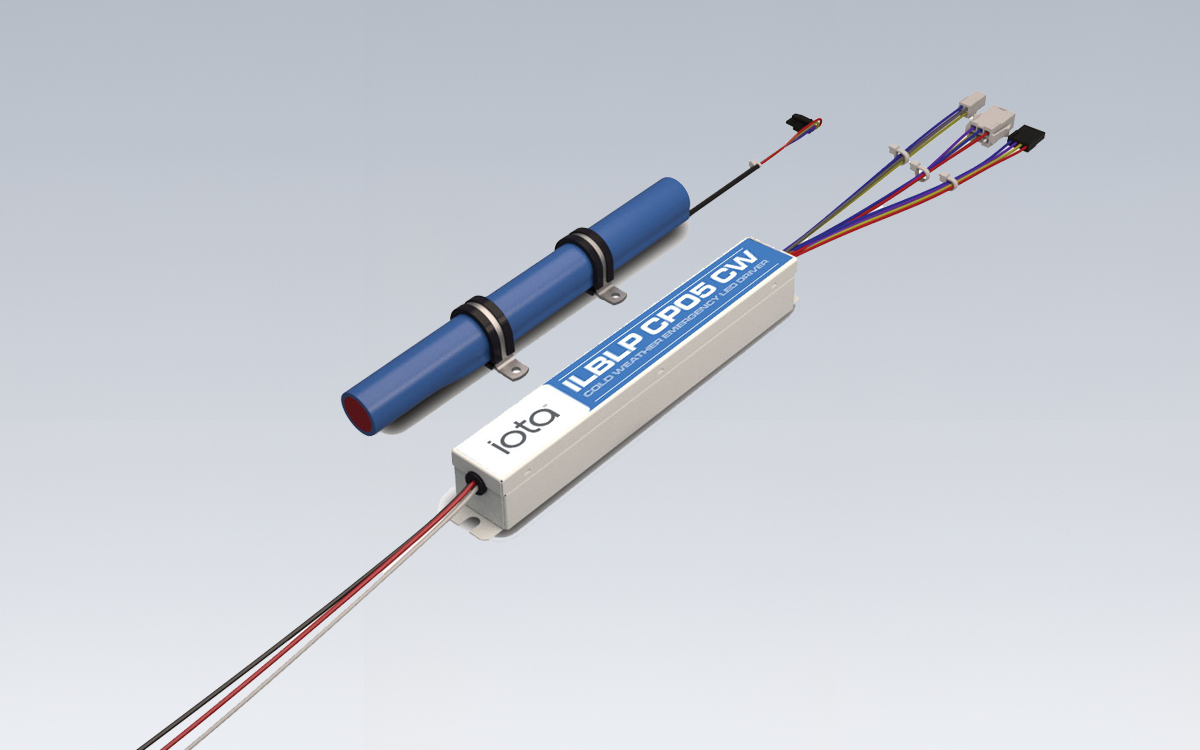

The IOTA ILBLP CP05 HE SD LC CW is a UL Recognized LED emergency driver that allows a single LED fixture to function seamlessly in both normal and emergency operation. Designed for ambient temperatures ranging from -20°C to 55°C, the unit automatically switches power from the normal AC driver to its internal battery supply during a power outage, providing 90 minutes of emergency operation. Its compact enclosure houses a charger and converter circuit along with a separate lithium battery, enabling installation within channel spaces or wireways without compromising fixture design.
This emergency LED driver delivers a constant 5 watts of power at a nominal output voltage between 15 and 55 VDC. The constant power performance ensures stable illumination throughout the entire emergency runtime, with no degradation in output. The unit’s versatile design, featuring a minimal enclosure and separate lithium battery, provides flexibility for installation within fixture compartments or recessed spaces. Extended temperature performance down to -20°C makes it suitable for cold environments and freezing conditions, while its compatibility with switched or unswitched fixtures enhances adaptability across applications.
The ILBLP CP05 HE SD LC CW includes self-diagnostic and self-testing capabilities that comply with NFPA 101 requirements. Monthly and annual automated self-tests verify system readiness, while visual indicators on the unit provide immediate confirmation of operational status. Its Auto-Sense 15-55VDC output is UL 1310 Certified and Output Class 2 Compliant, while the circuitry is enclosed in a durable white-painted steel case. The unit incorporates long-life, high-temperature, recyclable Lithium Iron-Phosphate battery technology, providing a 5–7 year lifespan and a full recharge within 24 hours. AC-Activate circuitry simplifies installation by eliminating the need for manual battery connection, and a single-piece IP67-rated test switch and charge indicator kit facilitate maintenance and inspection.
Performance and safety standards are fully addressed, with compliance to NEC, IBC, and Life Safety Code emergency lighting requirements. The driver is certified to California Title 20 and registered in the Modernized Appliance Efficiency Database (MAEDBS), and it meets ANSI/IEEE C62.41.2-2002 surge protection standards. The unit also satisfies FCC commercial EMI limits and operates with total harmonic distortion of less than 10% at full charge. Its broad suitability includes use in plenum spaces, damp locations, recessed Type IC fixtures, and enclosed or gasketed luminaires. With a 5-year warranty, RoHS compliance, and consistent output power across the full voltage range, the ILBLP CP05 HE SD LC CW represents a reliable and adaptable solution for emergency LED lighting applications.
Electrical specifications include universal input voltage of 120-277VAC at 50/60Hz, a maximum input rating of 0.072A, and output current ranging from 0.33A at 15VDC to 0.09A at 55VDC. The maximum AC driver output current is 3A DC, ensuring compatibility with a range of LED fixtures. Overall, the ILBLP CP05 HE SD LC CW combines compact design, robust performance, and comprehensive compliance features to provide dependable emergency lighting under a wide variety of conditions.
