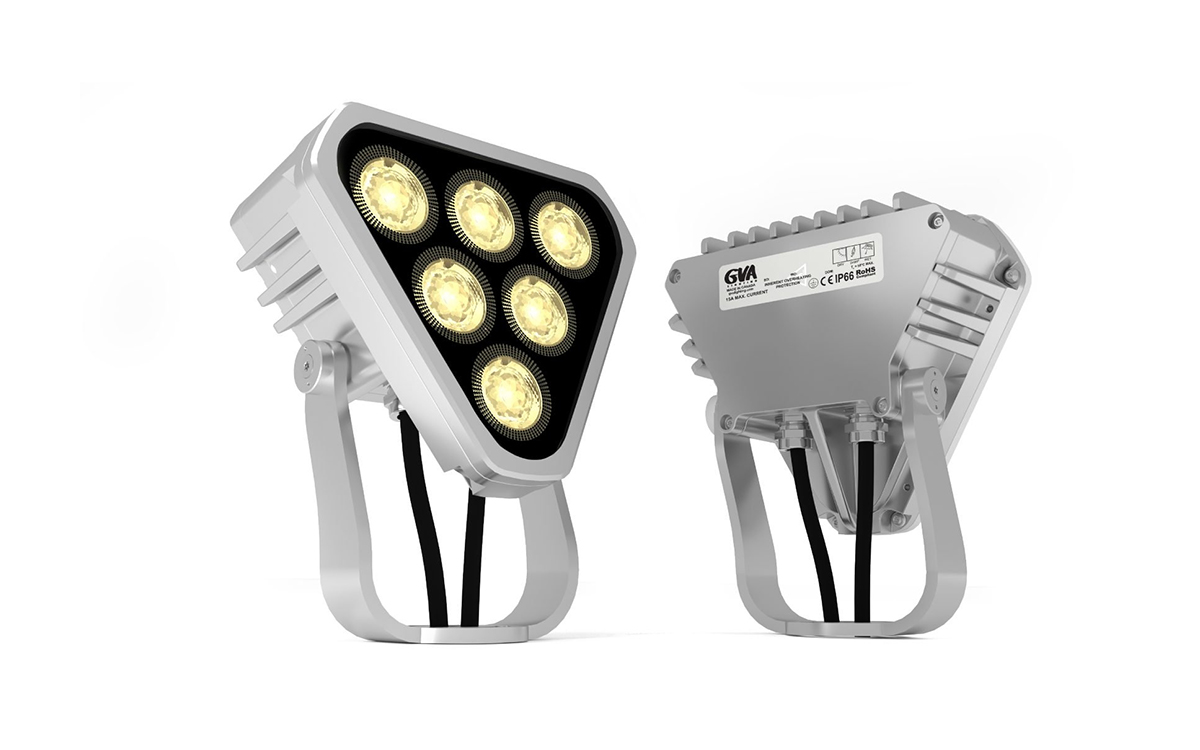

The FL25-GEN2-DWT-IM is the second-generation dynamic white inner mixing spot and flood luminaire in the FL series, engineered for superior performance in architectural wall washing, grazing, and spot lighting applications. Leveraging GVA’s award-winning COLOR-STREAM® platform, the fixture supports communication speeds up to 16 times faster than DMX, delivers exceptionally smooth 12-bit dimming with 4,096 micro-steps per channel, and enables seamless transitions with a refresh rate of up to 120 Hz. Its ultra-high dimming frequency of up to 40 kHz ensures flicker-free operation for both the human eye and high-speed cameras, while operating completely silently across the entire dimming range.
Equipped with six quadchip LEDs and GVA’s patented COLOR-AMP® technology, the FL25-GEN2-DWT-IM achieves an impressive output of up to 1,475 delivered lumens per channel. This optical system mixes white light internally, delivering an adjustable CCT range from 2200K to 6500K, with high uniformity and up to three times the output of traditional multichannel luminaires. The luminaire operates as a 2-channel system—one for CCT and one for brightness—allowing precise control over both color temperature and intensity.
The FL25-GEN2-DWT-IM supports a wide range of input voltages, including INF (380 V DC), ELV (48 V DC), and AC (ranging from 100 V to 277 V). It is compatible with Art-Net 4, sACN, DMX-512A, and DALI / DALI-2 via GVA’s PDC-GEN5 Power-Data Converter, enabling integration with a variety of control systems. GVA’s INFINITY® technology allows up to 158 fixtures to be connected in a single continuous run with power and data passed through sealed push-lock connectors and cables extending up to 100 meters (328 ft).
Designed for durability and versatility, the fixture is housed in diecast aluminum with AAMA 2604-compliant powder coating for exceptional resistance to weather and UV. The luminaire is IP66-rated for use in dry, damp, or wet locations and meets the ANSI C136.31-2018 vibration standard, making it suitable for bridge and overpass installations. A layer of optically clear tempered glass protects the high-efficiency PMMA TIR lenses, which are available in 13 different symmetrical and elliptical beam distributions, including 10°, 20°, 40°, 60°, 80°, 1040, 1060, 3060, and more. Glare-control accessories and adjustable mounting brackets are available for additional customization.
The fixture is compact and lightweight, measuring 169 mm x 189 mm x 87 mm (6.7 in x 7.4 in x 3.4 in) and weighing just 3 kg (6.6 lbs). Its projected lifetime exceeds 60,000 hours (L70 at 50°C), with an alternative rating of >50,000 hours (L70 B50 at 25°C). It is designed for indoor and outdoor environments with operating temperatures from -40°C to +50°C (-40°F to +122°F) and full humidity tolerance (0–100%).
Available in standard white, silver, and black finishes, the FL25-GEN2-DWT-IM also supports custom colors and configurations upon request. This fixture offers architects and lighting designers a high-performance, controllable, and flexible dynamic white solution for demanding architectural applications.
