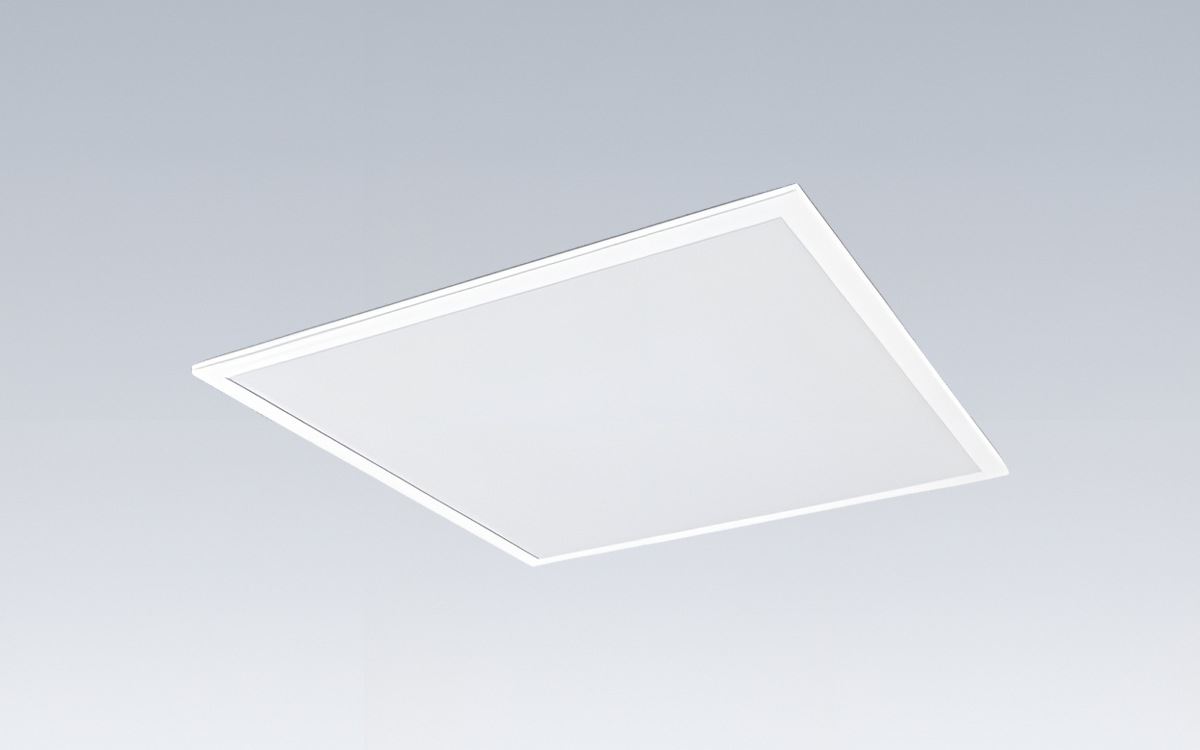

The Beta Force is a high-performance, recessed LED panel designed for applications requiring enhanced protection, durability, and efficiency. This versatile luminaire is available in both square and rectangular sizes, making it suitable for standard recessed modular ceilings, as well as for plasterboard ceilings when paired with the appropriate mounting accessory. Beta Force offers flexible color temperature options, selectable on-site via a simple switch between 3000 K, 3500 K, and 4000 K, allowing the lighting to match the specific ambiance and functional needs of the space. It is available with CRI 80 and CRI 90 LEDs, providing excellent color rendering for office, educational, and commercial environments, while maintaining high efficacy up to 145 lm/W. The luminaire ensures low glare with UGR values of <19 for 3500 lm and 4100 lm outputs, and <22 for the 6000 lm option.
Beta Force is engineered to meet the demands of more challenging interior environments that require a higher level of protection. It is ideal for areas exposed to moisture, water, dust, and dirt, such as hospital corridors, shower and changing rooms, kitchens, high-traffic areas, workshops, and public circulation spaces. The luminaire achieves IP65 protection at the front and IP20 at the back, ensuring safety in wet or potentially contaminant-prone environments. Additionally, Beta Force offers IK08 impact resistance, capable of withstanding up to 5 Joules of force—equivalent to a blow from a 1.7 kg hammer dropped from 30 cm—making it suitable for areas subject to accidental knocks or high usage. The panel also features a TP(a) rated opal polycarbonate diffuser, which ensures both safety and high-quality light distribution, while controlling glare and providing uniform illumination.
Installation of the Beta Force is quick and straightforward. The luminaire comes with a twist-and-lock connector for easy attachment to the LED driver and loop-in, loop-out wiring for fast electrical connection. Safety wiring is included for secure mounting. The panel’s low profile, with a depth of just 35 mm, makes it ideal for shallow ceiling voids, while the optional plasterboard frame accessory allows it to be installed seamlessly in suspended plasterboard ceilings. The modular design and selectable CCT make Beta Force highly flexible, providing a single solution for multiple lighting scenarios.
Beta Force is available with a range of control options to meet the specific requirements of modern spaces. Fixed-output versions provide straightforward illumination, while DALI-2 dimmable options enable advanced lighting control. BasicDIM Bluetooth® wireless control is also available, allowing convenient on-site adjustments. Emergency variants include a 3-hour manual test option (E3) and a 3-hour addressable/self-test version (E3D), both using robust LiFePO4 batteries. With a long lifetime of 100,000 hours at L80 and a maximum operating temperature range of 0 °C to 40 °C, Beta Force ensures energy efficiency, reduced maintenance, and reliability over time.
In summary, Beta Force combines durability, efficiency, and aesthetic design for demanding indoor environments. Its IP65/IP20 rating, IK08 impact resistance, TP(a) rated opal diffuser, high efficacy, and selectable color temperature make it an ideal choice for offices, educational settings, healthcare facilities, and high-traffic public areas. Easy installation, low-maintenance operation, and versatile mounting options further enhance its suitability for refurbishment projects or new builds, offering a future-proof and energy-efficient lighting solution.
