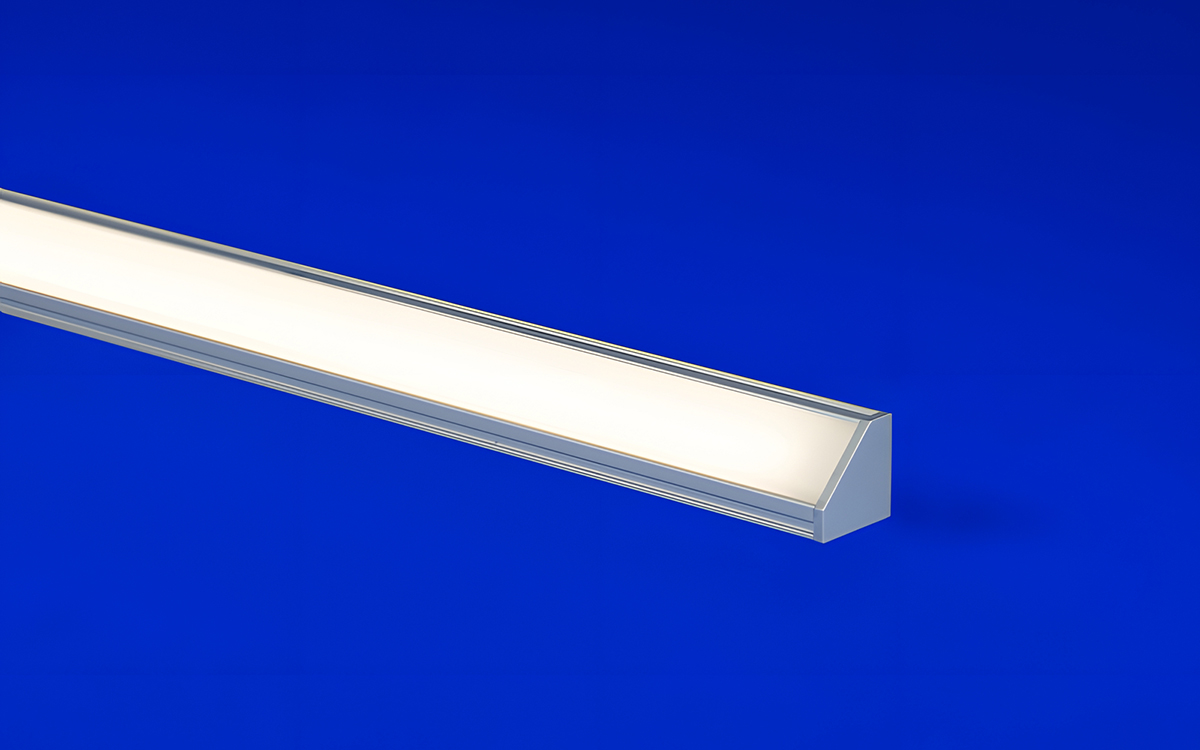

The corner mount linear LED fixture is a versatile and durable lighting solution designed for both indoor and outdoor applications, thanks to its robust polyurethane encapsulation that ensures IP67 ingress protection and IK10 impact resistance. This fixture combines functionality with sleek aesthetics, featuring a rigid extrusion that houses high-quality LED strips for consistent and reliable illumination in demanding environments. It is available in either a clear or translucent encapsulation, providing flexibility in achieving the desired light distribution and visual effect.
Engineered for multiple mounting options, this linear LED fixture supports stainless steel clips, magnets, and low-profile magnet mounts, making it suitable for a wide range of installation scenarios, including corner and surface applications. Its design incorporates painted end caps that match the extrusion finish for a clean, coordinated look, while clear end caps are available for achieving a seamless appearance across extended runs. This fixture is even compliant with NEC regulations for use in the storage area of clothes closets when specified at 4.0 watts or less per foot, offering safety and versatility in residential and commercial spaces.
Performance options are extensive, with wattage configurations ranging from 1.5 to 9.0 watts per foot and lumen outputs up to 235 lumens per foot at 4.0 watts in static white. The fixture supports multiple light engine types, including Static White, Warm Dim, Dynamic White, RGB, and RGBW configurations, ensuring compatibility with diverse design requirements. Color temperature options span from 2000K to 4000K, complemented by high color rendering indices (CRI 96-97 at 3000K) for exceptional visual quality. Lens choices include encapsulated clear or translucent finishes to tailor the light output and diffusion.
This fixture accommodates lengths from 12 inches to 98 inches (excluding end caps) and offers additional custom options for shorter configurations upon request. Measuring a compact 0.71" x 0.71", it delivers powerful performance in a minimal form factor, ideal for surface mount, cove lighting, millwork integration, and perimeter illumination. Certifications include UL Listing, RoHS compliance, 1-Bin 1-Step color consistency, Declare, and closet-rated approvals per NEC 410.2 and 410.6 standards. Backed by a five-year warranty and designed for use in harsh environments, this fixture combines high efficacy, robust durability, and aesthetic flexibility for architects, designers, and contractors seeking reliable corner and surface mount lighting solutions.
