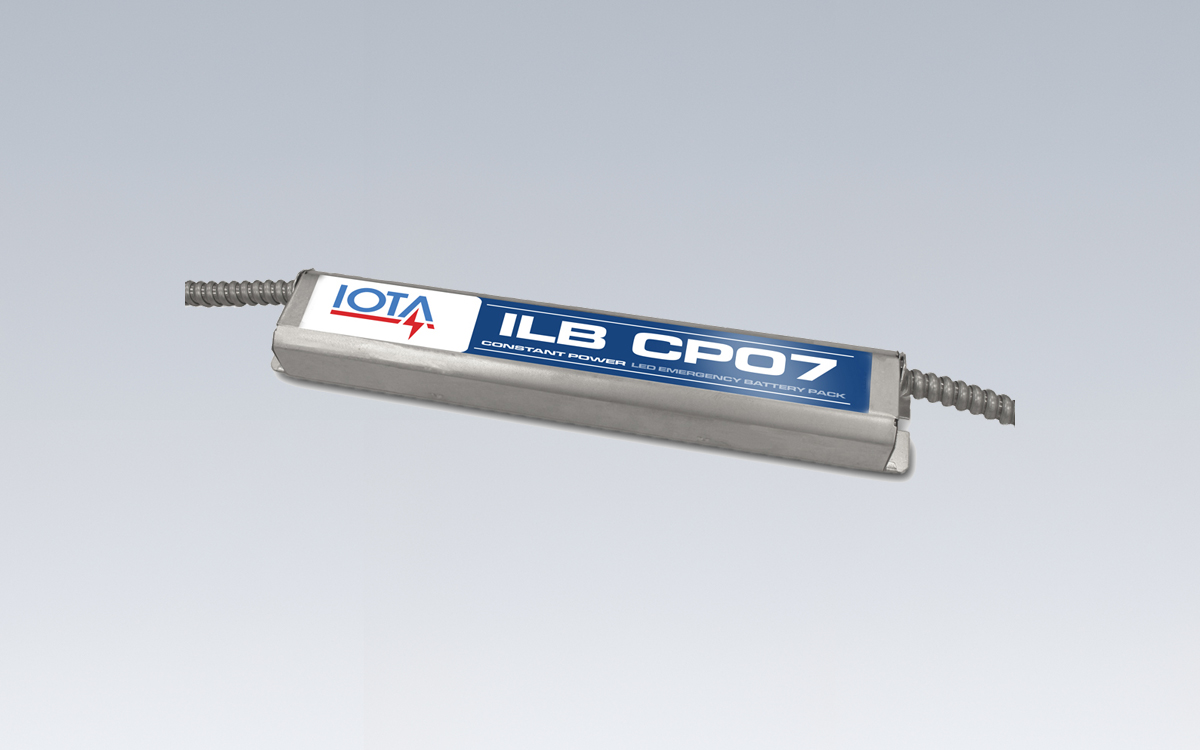

The IOTA ILB CP07 is a UL Listed and Classified LED emergency driver that enables a single LED fixture to function seamlessly in both normal and emergency modes. In the event of a power failure, the ILB CP07 automatically switches to emergency operation, powering the existing fixture for a full 90 minutes. This compact all-in-one unit integrates a battery, charger, and converter circuit within a single galvanized steel housing and is available in multiple mounting configurations to meet a wide variety of fixture and installation requirements.
At the core of the ILB CP07’s performance is its Constant Power design, which maintains a steady 7-watt output to the connected LED array throughout the entire emergency runtime, even as system voltage diminishes. This ensures consistent illumination with no visible light degradation during emergency operation. The unit operates within a nominal output range of 10–60 VDC, supporting a wide array of Class 2 LED designs including downlights, troffers, and linear strips. Its auto-sensing output technology simplifies compatibility, allowing one emergency driver to serve various fixture types and reducing the need for multiple SKUs.
The ILB CP07 is UL 924 Listed for emergency lighting and UL 1310 Certified as an Output Class 2 compliant device. It meets or exceeds all applicable National Electrical Code (NEC), International Building Code (IBC), and Life Safety Code requirements, ensuring dependable performance in life-safety applications. It is also cUL Listed and compliant with CSA C22.2 No. 141 standards for use in both the United States and Canada. Environmental suitability extends to plenum spaces, damp locations, recessed Type IC fixtures, and enclosed or gasketed luminaires, providing flexibility across commercial, industrial, and institutional applications.
The emergency driver operates on a universal 120–277 VAC input at 50/60Hz with a maximum input power of 3.5 watts. It delivers a Class 2 compliant output of 10–60 VDC, maintaining a constant power output of 7 watts. Output current automatically adjusts from 0.7A at 10VDC to 0.12A at 60VDC, supporting a wide voltage range without compromising performance. The unit achieves a power factor of at least 0.9 and maintains a total harmonic distortion (THD) below 20%.
The ILB CP07 includes a long-life, high-temperature nickel-cadmium (Ni-Cd) battery designed for 24-hour recharge time and an expected service life of 7–10 years. A single-piece TBTS test switch and charge indicator accessory kit is included, allowing remote installation up to 50 feet from the fixture. The unit supports both switched and unswitched fixture operation, making it adaptable to a range of wiring and control configurations.
Constructed with a durable galvanized steel case, the ILB CP07 is built for reliability in demanding environments. It is RoHS compliant, contributing to environmental sustainability through the use of recyclable materials. With six available mounting configurations, it provides versatile installation options for both field and factory applications. The emergency driver carries a five-year warranty and is rated for operation in ambient temperatures from 0°C to 55°C, ensuring stable performance across varied conditions.
In summary, the IOTA ILB CP07 LED emergency driver delivers dependable, constant-power emergency lighting performance in a compact, versatile design. Its universal input compatibility, broad output range, and compliance with critical safety standards make it a reliable solution for maintaining code-compliant emergency lighting in commercial and industrial LED installations.
