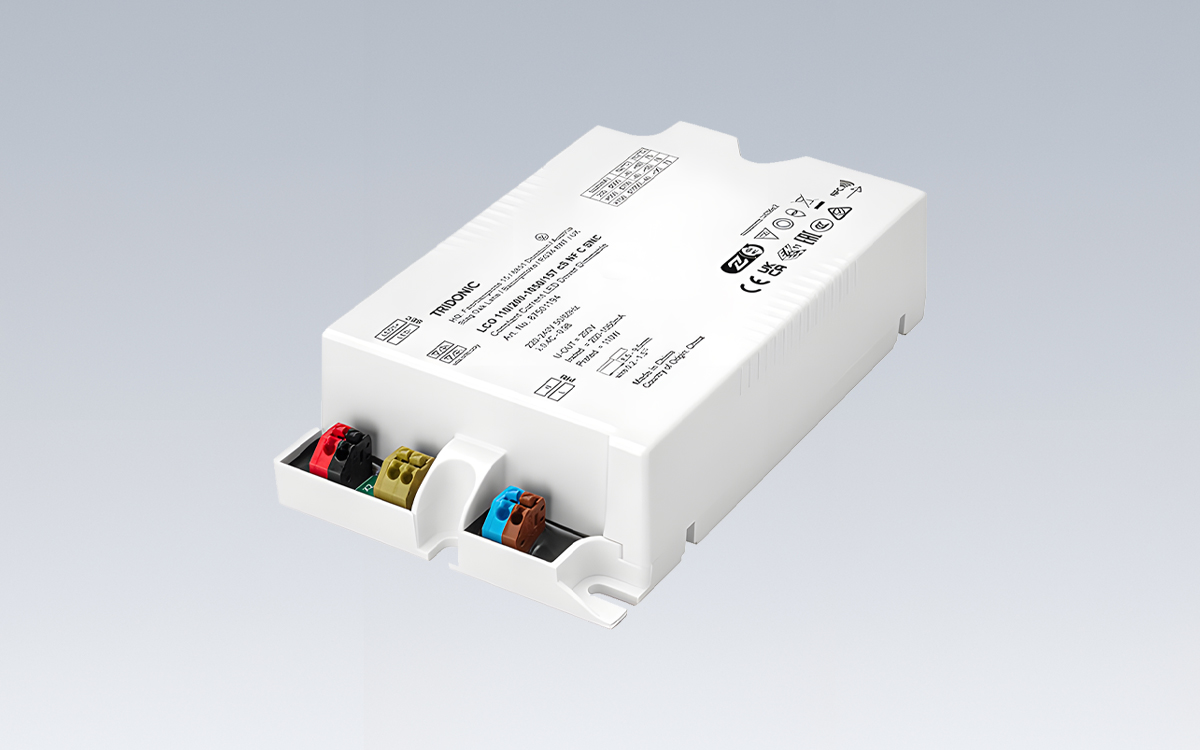

The 110W built-in constant current LED driver is specifically developed for basic, functional street lighting luminaires, accommodating both protection class I and class II applications. It complies with industry standards, offering high surge and burst protection, NFC programming capabilities, high power factor, and a long nominal lifetime of up to 100,000 hours. The output current is fully adjustable between 200 and 1,050 mA via NFC, with a pre-selected default of 200 mA, enabling precise tuning for different LED modules and luminaire configurations. The driver also supports autonomous dimming through its in-built chronoSTEP functionality, allowing for optimized nighttime energy management and adaptive lighting control. Its wide operating window ensures compatibility with a variety of LED module combinations and luminaire operating points.
The driver includes multiple interfaces for versatile programming and control. NFC allows for easy configuration of single or multi-packaged devices. ChronoSTEP3 V2 enables fixed reduction of luminous flux according to astronomical midnight schedules, while the u6Me2 interface allows centralized programming of streetlights via mains from the cabinet. Terminal connections are provided through 45° push terminals for straightforward installation. The programmable functions include adjustable output current in 1-mA steps, chronoSTEP profiles for customized dimming times and levels, and a constant light output (CLO) function to maintain consistent light levels over time. Protective features are incorporated via Intelligent Voltage Guard Plus (IVG+) to safeguard against voltage fluctuations and ensure reliable operation.
This LED driver is optimized for street and road lighting in accordance with European Street Lighting Standard EN 13201. Its wide operating window and flexible NFC programming make it suitable for various LED modules and luminaire configurations, simplifying installation and in-field adjustments. Centralized programming through u6Me2 allows for efficient management of multiple streetlights, while high surge protection of up to 10 kV and integrated ESD protection enhance reliability in demanding outdoor environments.
Electrical specifications include a rated supply voltage of 220–240 V, AC voltage range of 198–264 V, and mains frequency of 50/60 Hz. The driver exhibits a typical rated current of 525 mA at 230 V and a leakage current below 0.7 mA, with touch current limited to 550 µA when equipotential is connected. Peak inrush current is 57.9 A with a duration of 204 µs, and the maximum input power is 120 W. The output power range spans 9.6–110 W with an efficiency of 92% at full load. Power factor varies across the operating range from 0.4 C minimum to 0.98 maximum, and total harmonic distortion (THD) remains below 10%. Output current tolerance is ±5%, with a non-repetitive peak current up to 15% above the nominal. Low-frequency current ripple is maintained at ±5%, and the output voltage can reach a maximum of 200 V. The dimming range extends from 10–100%, with a minimum current of 100 mA. Surge capabilities include 6 kV between L–N and 10 kV between L/N–PE, with output side surge voltage below 1 kV.
Physically, the driver measures 150 mm in length, 90 mm in width, and 37.5 mm in height, offering IP20 protection for indoor installation. Its robust design ensures long-term reliability and consistent performance over a nominal lifetime of up to 100,000 hours. The product comes with a five-year guarantee, reflecting its durability and compliance with professional street lighting requirements.
