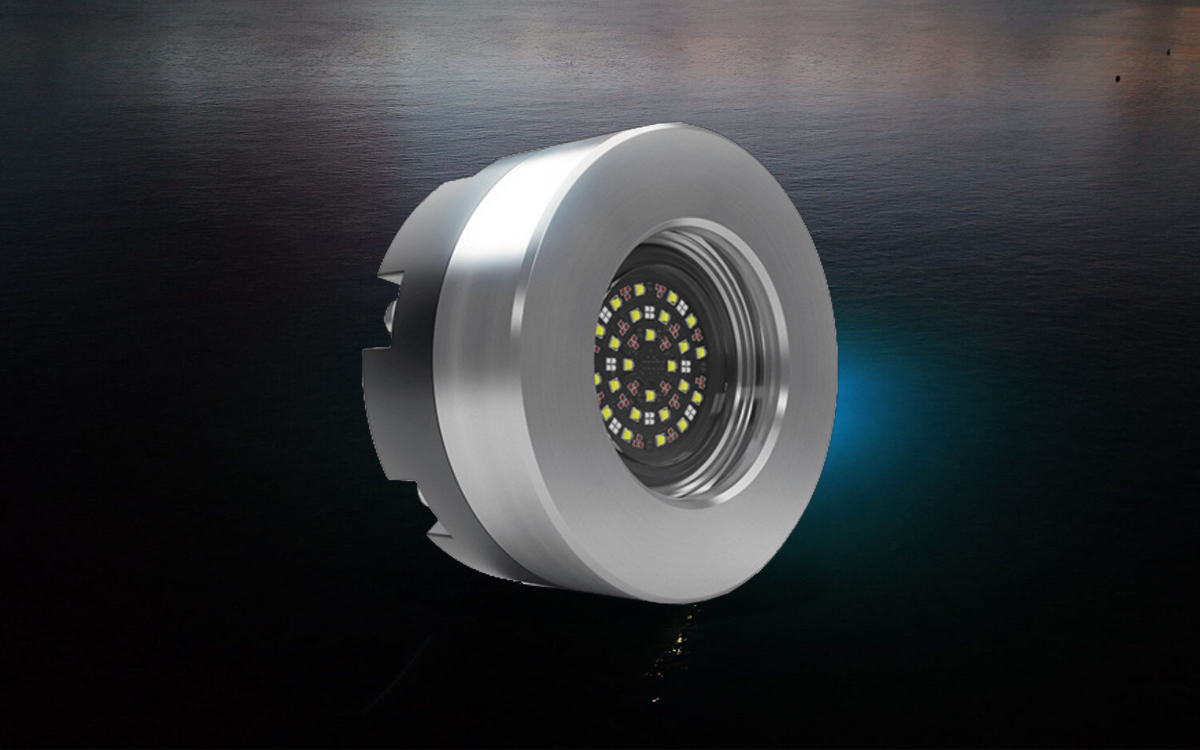

Lumishore’s compact SY220 underwater LED light is designed with an ultra-slim internal profile measuring just 139mm (5.47 inches), making it ideal for installation in areas where hull space is limited or access is restricted, such as water tanks and bulbous bows. To ensure even spacing of the lights regardless of internal vessel obstacles, a variety of flange angles are available, allowing for flexible and precise installation. This adaptability helps create the coveted “halo effect” around the entire hull, achieved through a consistent, evenly spaced light pattern that requires fewer fixtures thanks to the SY220’s unique ultra-wide 110° beam option.
The SY220 delivers full-spectrum color change (RGBW) and outputs 8,400 verified fixture lumens in a single compact unit. It uses an advanced HICOB LED array with 104 high-power LEDs, offering vibrant and dynamic underwater illumination. The light is available with either a 60° or 110° beam angle, giving designers control over the spread and intensity of the light. Powered by a multi-channel external driver, the SY220 operates efficiently across a supply voltage range of 90-240V AC, with a 24V DC option also available, drawing a maximum current of 1.2A.
Constructed with durable aluminum or stainless steel flange materials, the SY220 meets stringent marine certification standards, including full Lloyd’s, ABS, and DNV Type Approvals. It also complies with critical EMC and EMI safety testing requirements. An optional three-year warranty is available, underscoring the reliability and quality of the product. Typical LED life exceeds 50,000 hours, ensuring long-term performance and durability in demanding marine environments.
The SY220 supports a broad range of user control options via the EOS STV2202 controller and offers system integration, wireless, and touch screen control capabilities. Features include synchronized lighting across multiple units, customizable color cycles and sweeps with speed adjustment, fixed and random strobe effects, programmable scenes, and brightness adjustment. Additional smart functions such as Wi-Fi app control, sound-to-light responsiveness, and auto light discovery and setup provide a seamless and immersive lighting experience tailored to the vessel’s unique needs.
