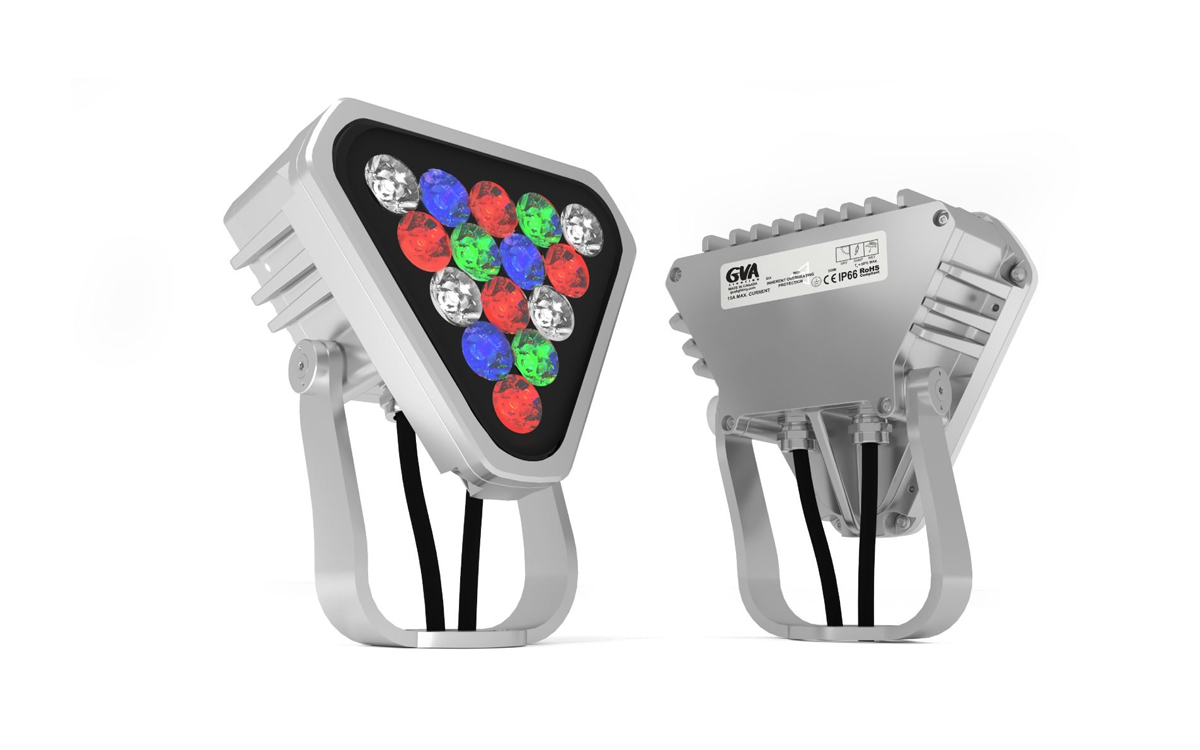

The FL25-GEN2 COLOR CHANGING OUTER MIXING is a high-performance architectural LED spotlight and floodlight designed for dynamic lighting applications that demand vibrant, precise color mixing and robust environmental durability. Utilizing 15 discrete high-power LEDs, this fixture achieves high-punch color output and delivers up to 2,064 lumens per channel. With configurations available in RGBW (ranging from 1800K to 6500K) and RGBA, it supports a broad spectrum of creative lighting designs with smooth color transitions.
This next-generation fixture operates on GVA’s proprietary COLOR-STREAM® communication platform, delivering high-speed data transmission at 6.25 Mbps, a refresh rate of up to 200 frames per second, and 12-bit dimming resolution with 4,096 micro-steps per color. The result is exceptionally smooth dimming and vibrant color fades, backed by a 40 kHz dimming frequency that ensures flicker-free operation for both human perception and high-speed cameras. Additionally, the fixture produces no audible noise throughout its full dimming range and offers configurable dimming curves to match the human eye’s response.
The FL25-GEN2 supports a wide range of input voltages, including INF (380 V DC), ELV (48 V DC), and standard AC inputs (100 V to 277 V AC). A single circuit can support up to 158 fixtures when powered by the GVA INFINITY® system. Power and data are transmitted via sealed push-lock connectors, allowing through-wiring over distances up to 100 meters (328 feet) with leader and jumper cables. The system is compatible with Art-Net 4, sACN, DMX-512A, DALI/DALI 2, and 0–10 V controls, all managed through GVA’s Power-Data Converter (PDC-GEN5).
Engineered for architectural resilience, the fixture features a diecast aluminum housing with optically clear tempered glass and a highly weatherable, UV-resistant AAMA 2604-compliant powder coating. The IP66-rated enclosure ensures performance in dry, damp, or wet environments across temperatures ranging from -40°C to +50°C (-40°F to 122°F). It also meets the ANSI C136.31-2018 vibration standard for bridges and overpasses and carries an IK07 impact rating.
Optical performance is equally versatile, with an extensive range of symmetrical and elliptical beam options including 4°, 7°, 10°, 20°, 30°, 40°, 60°, 80°, 90°, and various elliptical patterns such as 10°x40°, 40°x10°, 10°x60°, 60°x10°, 30°x60°, and 60°x30°. High optical efficiency is achieved through PMMA TIR lenses, micro-lens film, and tempered glass. Optical accessories are available for added glare control. The fixture emits no infrared or ultraviolet radiation, ensuring a cool beam and protecting sensitive surfaces.
Compact and lightweight, the FL25-GEN2 measures 169 mm x 189 mm x 87 mm (6.7 in x 7.4 in x 3.4 in) and weighs just 3 kg (6.6 lbs). It features versatile mounting options with field-adjustable brackets and offers housing finishes in white, silver, or black, with custom colors available upon request. With a projected lifetime of over 60,000 hours (L70 B50 at 25°C) and a 5-year limited warranty, the FL25-GEN2 COLOR CHANGING OUTER MIXING fixture delivers powerful, precise, and reliable performance for demanding exterior and interior architectural lighting projects.
