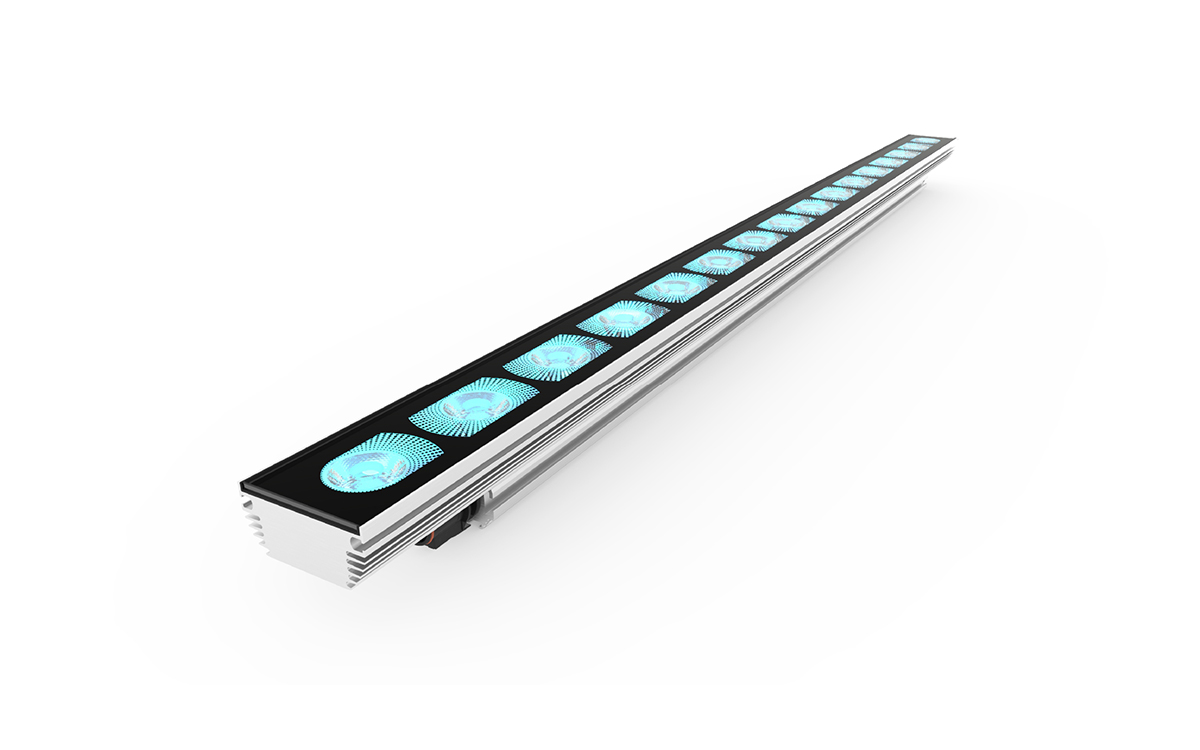

The STR9® GEN3 Color Changing is a high-performance linear LED luminaire designed for wall washing and grazing in exterior architectural lighting applications. This compact and lightweight fixture delivers up to 2,040 lumens per meter (626 lumens per foot), making it ideal for vibrant color-changing effects on building façades and large-scale architectural features. Its advanced 4-in-1 LED options—available in RGBW30K, RGBA, or RGB—provide exceptional color rendering and output flexibility, while COLOR-AMP® technology boosts light output by up to three times in specific color modes.
Built with GVA’s signature UNIBODY™ Technology, the STR9® GEN3 features a solid, extruded aluminum body with no seams or endcaps, offering best-in-class sealing against water ingress and long-term durability in the harshest outdoor environments. Each fixture is hermetically sealed and electronically tested, ensuring reliability and maintenance-free performance. The optically clear tempered glass lens resists yellowing and houses a built-in color-mixing system and diffusing film, delivering uniform light output immediately adjacent to the luminaire without striations or color separation.
The fixture maintains a consistent LED pitch within and between luminaires for uninterrupted illumination and offers 300 mm (1 ft) addressability for fine-grained control. With support for DMX control via GVA power-data equipment, users can program dynamic effects and color transitions with precision. Thanks to INFINITY® Technology, the STR9® GEN3 can be deployed in exceptionally long lighting circuits powered from a single location, minimizing infrastructure costs.
It is available in multiple lengths—300 mm to 1500 mm (1 ft to 5 ft)—and beam angle options, including symmetrical and elliptical distributions. The luminaire supports through-wiring for easy daisy-chaining and plug-and-play compatibility with GVA’s FL Series products, ensuring seamless integration. Power options include 10W, 15W, and 20W per foot, with input voltage choices of 48VDC (ELV), 380VDC (INFINITY®), and AC line voltages (120VAC, 220–240VAC, 277VAC).
Designed to withstand extreme conditions, the STR9® GEN3 Color Changing is rated for operation in temperatures ranging from -40°C to +50°C (-40°F to 122°F), with a projected lifetime (L70) exceeding 100,000 hours at 30°C. Suitable for dry, damp, and wet environments, this Class 1 LED luminaire is ideal for both demanding architectural applications and creative lighting designs.
