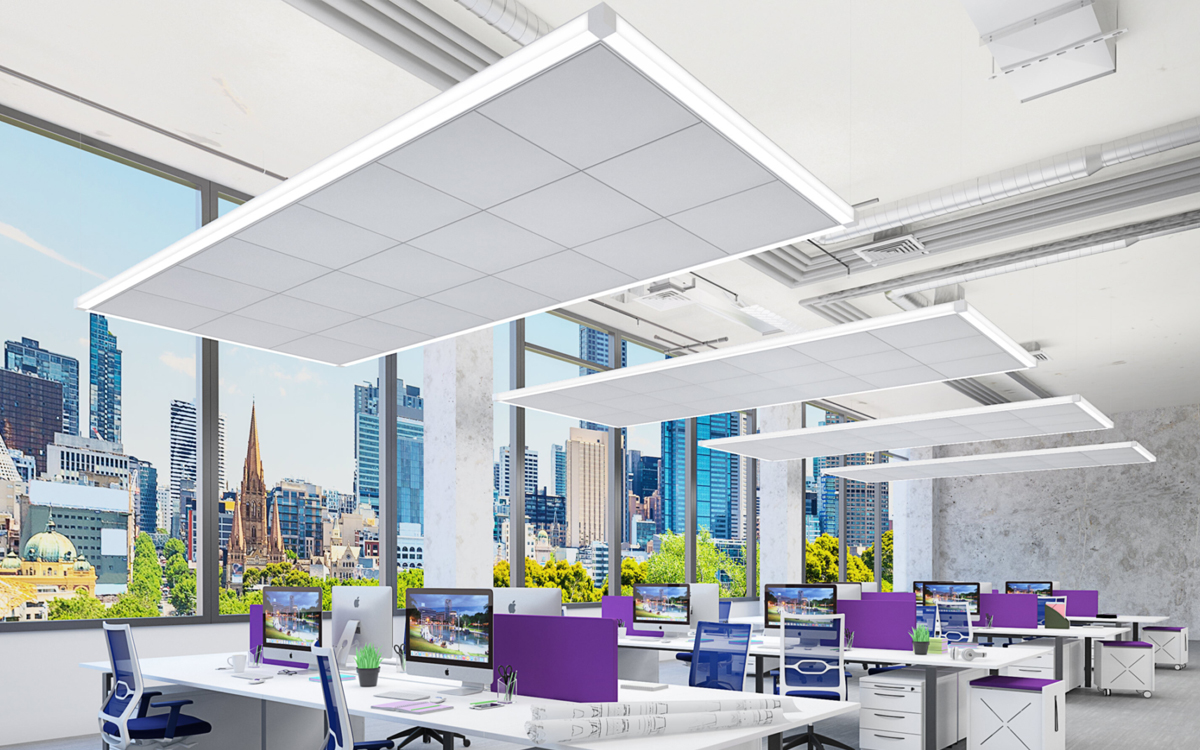

Edge 2 is an innovative linear ambient LED lighting solution designed to offer maximum versatility and design freedom. With its distinctive two-sided lens, Edge 2 enables unique lighting configurations across a variety of architectural applications. This adaptable system can be used virtually anywhere—along perimeter walls, at wall-to-ceiling junctions, or at points where walls intersect. Whether mounted vertically, horizontally, or at corners, Edge 2 is engineered to support creative lighting expressions through surface, pendant, and wall-mount installations. Its ability to form dynamic lighting patterns, including squares, rectangles, U-shapes, L-shapes, and other custom configurations, expands the boundaries of linear lighting design. An example includes Edge 2 Pendant Rectangles, which integrate unlit corners and decorative central tiling for added visual interest.
The dual-lens construction is at the heart of Edge 2’s performance. By dispersing light over twice the surface area, it significantly reduces contrast, which helps to minimize visual strain—particularly in high-output environments. This results in enhanced visual comfort and makes Edge 2 well suited for spaces where lighting quality directly impacts occupant well-being. Furthermore, the two-sided lens delivers people-friendly vertical illumination that improves facial recognition and brightens spaces in a soft, even manner.
Edge 2’s corner system is thoughtfully designed with both inside lit corners and outside cast corners. For optimal illumination at interior angles, inside corners are fully integrated into the linear lighting sections with mitered ends that connect seamlessly to adjacent modules. While these interior corners emit light, the outside corners use unlit diecast metal hubs to maintain pattern continuity and structural integrity between segments.
Technologically advanced, Edge 2 supports multiple control and power configurations. It is compatible with Lutron’s Hi-lume 1% EcoSystem driver with Soft-on, Fade-to-Black capabilities, and supports other control protocols such as DALI, DMX, and Xitanium SR for wireless sensor integration. Power over Ethernet (PoE) options are also available, including compatibility with systems like MOLEX, IGOR, and SMARTENGINE. Certified to UL2108 for both integral and remote drivers, Edge 2 is equipped for modern smart-building environments. Optional integral emergency battery packs or emergency circuit integration can also be specified, ensuring code compliance and reliability in critical applications.
Edge 2 provides performance-driven lighting with outputs up to 1000 lumens per foot for direct illumination and up to 1100 lumens per foot for indirect lighting. With efficacies reaching up to 146 lumens per watt, it combines energy efficiency with high-quality light output. Available in various lengths and segmented according to total run specifications, Edge 2 allows designers to tailor lighting systems precisely to their project needs, delivering both functional and expressive architectural illumination.
