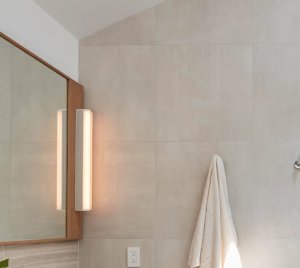

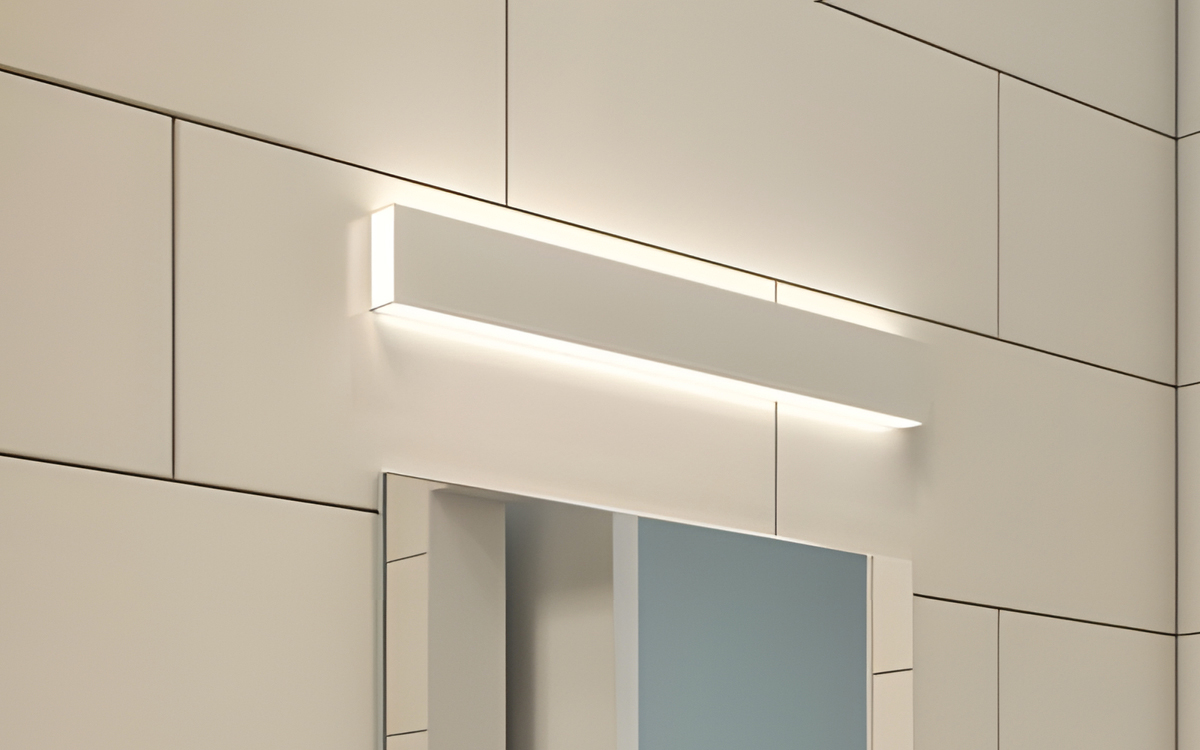

The Seem 1 vanity light is a refined, wall-mounted luminaire designed specifically for bathrooms and restrooms, combining high performance with a minimalist form factor. Measuring 2 feet in length with a slim 1.5-inch aperture, this bidirectional fixture delivers ambient lighting while softly illuminating the face without casting shadows. Its flexibility is enhanced by aesthetic options such as lit end caps or a 0.5-inch pop-down lens, creating a continuous, seamless glow from the bottom lens through to the end caps. To further complement architectural interiors, it is also available in The Naturals, a collection of nature-inspired finishes.
Built for demanding environments such as healthcare facilities, public restrooms, commercial offices, retail, and hospitality settings, the luminaire features an extruded aluminum housing with cast aluminum end caps, weighing just 4.1 lbs. A dust cover option ensures easy cleaning, making it particularly suitable for patient toilet rooms and other healthcare applications. The optical system consists of high-reflectance white steel reflectors paired with a frosted extruded acrylic lens, designed to provide visual comfort while eliminating pixels and shadows. Different shielding combinations—including flush or pop-down lenses with asymmetric optics or dust covers—allow for tailored lighting distributions.
At its core, the Seem 1 integrates a proprietary linear LED system engineered for thermal stability, uniform illumination, and long service life. Premium LEDs are offered in color temperatures ranging from 2700K to 4000K with options for both 80 and 90 CRI. For healthcare applications, 3500K and 4000K models with CRI >90 meet cyanosis observation index requirements of 3.3 or less. Modules and drivers are field-replaceable, and color accuracy remains within three SDCM. Performance options include lumen packages of 1500, 2000, or 2500 lumens, delivering high-quality illumination while maintaining exceptional energy efficiency. Longevity is assured, with reported L70 beyond 61,000 hours and calculated performance extending to 470,000 hours, as well as L90 beyond 115,000 hours.
The fixture is designed for versatility in modern lighting systems. Standard models include a 120–277V constant current driver with 0–10V dimming down to either 10% or 1%, while options expand to DALI, Lutron Hi-Lume EcoSystem, or PoE compatibility for integration with advanced networked lighting control systems. Low-voltage versions are also available, further enhancing system design flexibility. All luminaires are pre-wired with factory-installed branch circuit wiring and quick connects for efficient installation, with a power factor greater than 0.9.
A durable polyester powder coat finish is applied over a multi-stage pre-treatment process, with optional antimicrobial coatings available for sensitive environments. The Naturals finish series offers a 100% low-VOC vinyl option for biophilic-inspired design. Standard finishes include Black, Titanium Silver, Matte White, and Matte Satin White Antimicrobial.
UL and cUL listed for dry and damp locations, the Seem 1 vanity luminaire combines sleek design, precision optics, and powerful performance with the durability and flexibility required for both architectural and healthcare applications. Its refined balance of form and function makes it an ideal choice for vanity and restroom installations where uniform, comfortable illumination is essential.
