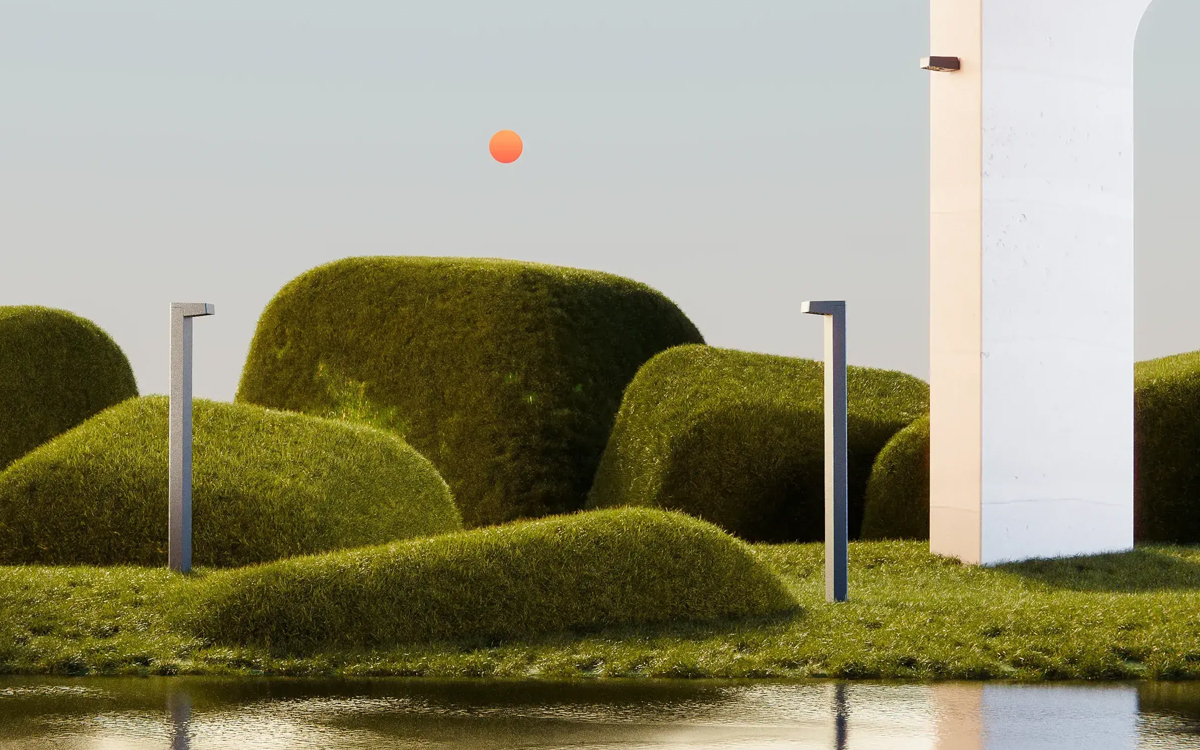

The if product family is a versatile and refined lighting solution designed to bring directional light to architectural surroundings such as walkways, gardens, and public squares. Known for its uniform illumination, the if series meets the highest standards demanded by architects, designers, and clients who seek both performance and elegance in outdoor lighting.
At the heart of the design philosophy behind if is a commitment to minimalism and harmony. The fixture was developed as a simple bollard luminaire that integrates discreetly into its environment. Its compact size and refined form—featuring soft vertical radii combined with clean horizontal edges—allow it to blend into a wide range of architectural contexts without visual disruption. This makes it an ideal choice not only for landscape installations but also for building-mounted lighting, where a subtle and high-quality appearance is essential.
Technically, the if luminaire houses a single LED lighting unit made up of four A–Series LEDs, which opens up a wide array of lighting possibilities. The system supports various light distributions to suit different applications, with available options including color temperatures of 2,200 K, 2,700 K, 3,000 K, 4,000 K, and 5,700 K. Most variants offer a minimum CRI of 70, with a CRI of ≥80 available at 3,000 K and by request for other temperatures. Operating at a current feed of 250 mA, the fixture delivers a maximum luminous flux of 350 lumens. Optical options include satiné finishes such as AP05 and AS06 for diffused lighting.
The modular architecture of the if series enables significant flexibility through integration with ewo’s advanced lighting technologies. With the A–Series lens system alone offering over 1.7 billion possible combinations, planners and designers gain unprecedented control over beam shapes and output. Additional systems like ewoLightTile, ewoLightLayers, and Color Mixing can be implemented for enhanced precision and creativity in light shaping.
Constructed from materials with a copper content of less than 0.08%, the housing ensures durability and corrosion resistance. For environments with more aggressive atmospheric conditions, optional ewoECP protection is available to further extend product life.
The if family is offered in both bollard and wall-mounted configurations, each with a rectangular shape and powder-coated finish. Designed for monochrome light output and general architectural illumination, both variants are surface-mounted and suitable for applications in architecture and the arts.
Smart functionality is another strength of the if product family. It can be connected to intelligent lighting control systems via internal or external nodes, enabling individual or grouped luminaire control. DALI compatibility is also supported through an external control gear accessory, allowing seamless integration into modern lighting management systems.
In summary, the if lighting series combines sleek design, modular flexibility, and robust engineering to deliver a premium solution for directional outdoor lighting in a broad range of architectural applications.
