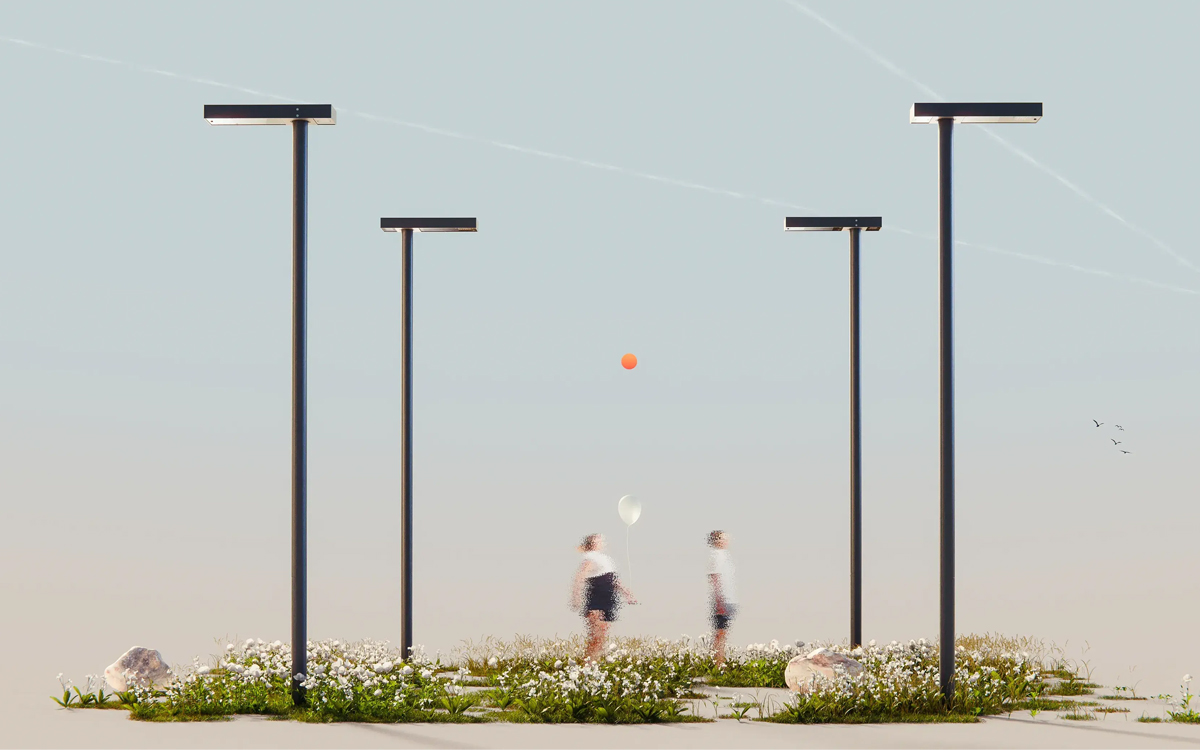

The FN pole luminaire range is a highly versatile and adaptable lighting solution, designed to meet the diverse demands of both street and accent lighting. Its ability to provide bidirectional light emission makes it especially suitable for urban environments where illumination is needed in multiple directions without visual clutter or obstruction. With a clean, modern design and robust performance, FN integrates seamlessly into various architectural contexts while delivering precise and efficient lighting.
Engineered for flexibility, the FN product family offers a wide spectrum of luminous flux levels and light distributions. It supports up to six LED modules on the main side of the luminaire, and in the FN-B version, an additional lighting unit can be installed on the opposite side of the pole. This innovative design allows for true bidirectional illumination without interference from the pole structure. The system can also be equipped with factory-installed ewoLightLayers such as RBL (backlight shield) and AGR (anti-glare protection), optimizing visual comfort and light control.
Available in both A–Series and T–Series configurations, the FN luminaire can be tailored to a wide range of project requirements. The A–Series supports current feeds from 200 to 700 mA (with a maximum of 550 mA for FN1300(-B)) and delivers up to 22,300 lumens. It offers multiple color temperatures ranging from 2,200 K to 5,700 K, with CRI values up to ≥ 80 and other rendering indexes available upon request. The T–Series offers a maximum output of 6,400 lumens at up to 225 mA and features tunable white light from 2,200 K to 6,500 K, with CRI ≥ 80 or optional CRI ≥ 90 for more demanding applications. Both series include electronic operating devices with DALI interfaces, 1–10 V control, stand-alone programming, and Line Switch options. Features such as constant lumen output (CLO) and emergency power supply (AC/DC) are also available upon request.
Constructed with long-term performance in mind, the FN luminaire features a housing with low copper content (≤ 0.08%) and can be enhanced with optional ewoECP corrosion protection for greater durability in harsh environments. Its modular system is compatible with a vast range of light distributions—within the A–Series alone, there are nearly 1.8 billion possible lens combinations, allowing for highly customized lighting designs. Systems like ewoLightTile and additional ewoLightLayers offer even further adaptability.
The FN product family is designed for the future of urban lighting. It supports integration with intelligent lighting control systems via internal modules or external Zhaga interfaces, enabling seamless compatibility with various communication standards. This ensures the FN luminaire is not only a high-performance lighting solution but also a smart, scalable component within advanced city-wide lighting infrastructures.
