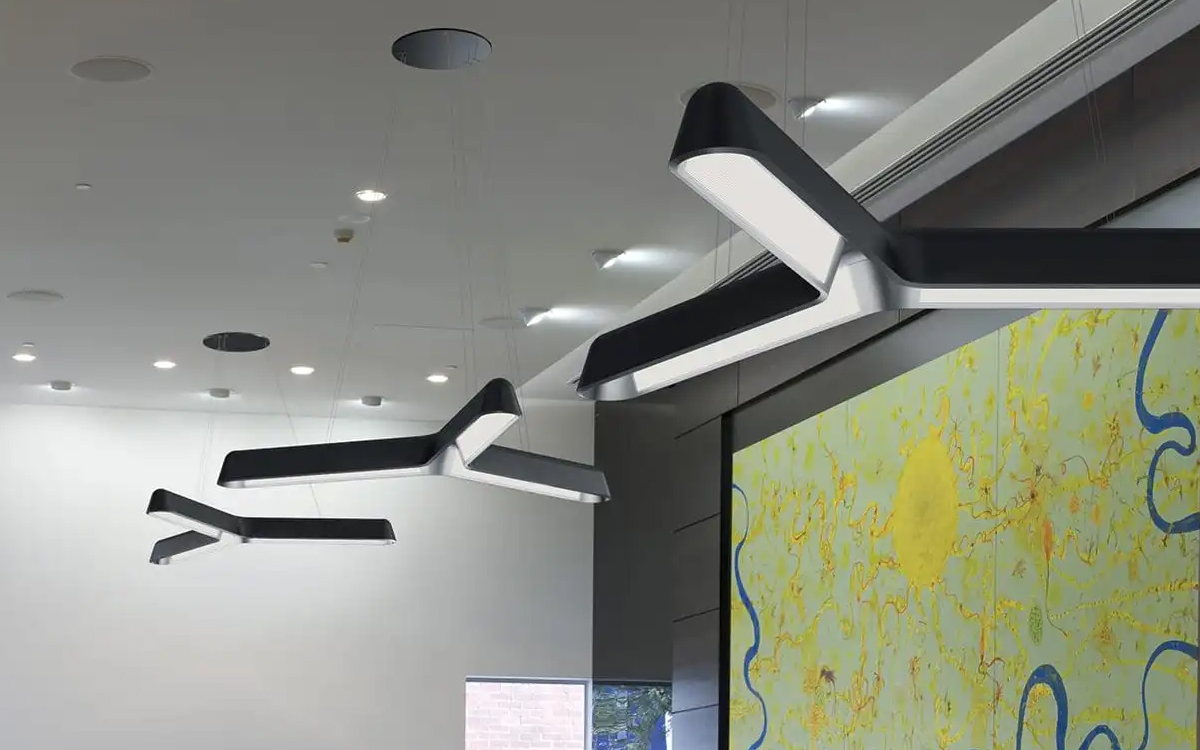

Fold Spoke is a suspended pendant luminaire that blends fluid minimalist form with exceptional optical performance and architectural elegance. Defined by its fully luminous interior, unique void aperture, and completely cord-free appearance, Fold Spoke introduces a sculptural lighting solution that complements modern interiors. The fixture is powered by low-voltage, stainless steel conductive aircraft cables that double as the suspension system, eliminating the need for visible power cords and preserving the purity of its minimalist design.
This refined luminaire features vertically oriented, third-generation Anidolic extraction optics, engineered to reduce brightness and eliminate glare. Fold Spoke balances high performance with user comfort, offering indirect/direct batwing distributions that are independently dimmable. With efficacies up to 119 lumens per watt, multiple CCT options, and remarkable lumen maintenance of L70 > 200,000 hours, Fold Spoke delivers lighting quality and longevity in equal measure. At just 4.5 inches in height and requiring only an 18-inch drop from the ceiling, it integrates easily into low-profile architectural spaces. Its low-angle indirect distributions illuminate ceiling planes uniformly, even at minimal suspension heights, making it ideal for modern, energy-efficient spaces.
Fold Spoke is available in two architectural forms: the 3-spoke S3 with 120° spacing and the 4-spoke S4 with 90° spacing. These clear anodized aluminum bodies are precision machined for quality and consistency. The design is enhanced by five pre-installed endcap styles—Arch, Oblique, Shade, Slant, and the standard style—each matched with sharp or rounded hub corner details for cohesive fit and finish. Designed for general area lighting, Fold Spoke is offered in both direct-only and direct/indirect lighting distributions, with native 60 Up / 40 Down output distributions. Fold Spoke 3 delivers up to 5,850 lumens, while Fold Spoke 4 outputs up to 7,800 lumens.
Independent Up | Down control allows users to switch or dim the indirect and direct outputs separately, making Fold Spoke particularly well-suited for multifunctional spaces requiring flexible lighting environments such as conference rooms, classrooms, or spaces with projection or video conferencing needs. The up/down adjustability gives designers the freedom to tailor lighting conditions for both energy efficiency and occupant comfort.
The optical performance is driven by transparent, vertical lenses integrated with linear extraction elements. These optics precisely refract and reflect light to emit balanced direct and indirect distributions. The clarity of the lens allows natural light to pass through the open form of the fixture, enhancing the perception of space and allowing visibility through the luminaire itself. This visual transparency not only enhances architectural integration but also creates luminous ceilings and volumetric efficiency in the space.
Fold Spoke’s construction features extruded and machined architectural-grade aluminum, with seamless precision-machined aluminum joints and endcaps. Stainless steel fasteners and 0.06-inch (1.6 mm) conductive aircraft cable suspensions ensure robust installation. Standard finishes include clear anodized aluminum, white, metallic silver, and black powdercoat, with color-matched canopies as a default—silver when clear anodized. The system is compatible with grid, drywall, or hard-lid ceiling types and supports installation in both new and existing construction.
The optical engine includes Anidolic optical structures with high-transmittance, precision-extruded clear acrylic lenses, ensuring uniform light output with minimal glare. LEDs are mid-flux type with long life performance (≥L90 at 60,000 hours), offered in 3000K, 3500K, and 4000K, with CRI options of 80+ and 90+, R9 values up to 50, and color binning within 2 SDCM for excellent consistency.
Electrical components are fully integrated with the mounting system—there are no fixture-level electrical connections required during installation. High-efficiency multi-volt drivers support 120–277V or 347V, with a power factor greater than 0.90 and total harmonic distortion under 20%. Dimming options include standard 3%, and optional 1% or 0.1% for ultimate lighting control. Surge protection complies with ANSI/IEEE standards, and inrush current performance meets NEMA 410 requirements.
Emergency lighting options include a Class 2 rated 10W battery pack for 90-minute operation, generating approximately 1,150–1,750 lumens depending on system efficacy. An optional GTD (Generator Transfer Device) enables full light output during emergency by bypassing 0–10V controls. For ease of installation, all power cables and drivers are pre-wired and tested at the factory.
Fold Spoke is designed for dry and damp indoor environments with ambient temperatures between 0–30°C (32–86°F). It should be protected from exposure to harsh chemicals such as chlorine, ammonia, solvents, and sulfur compounds, which may damage components and void the warranty. The luminaire is not intended for use in natatoriums or environments such as pools, spas, or saunas. Routine care involves gently wiping the fixture with a slightly damp, soft cloth.
With its fusion of technical innovation, architectural refinement, and visual comfort, Fold Spoke is an ideal solution for high-performance interior environments that value clean aesthetics, energy efficiency, and customizable light.
