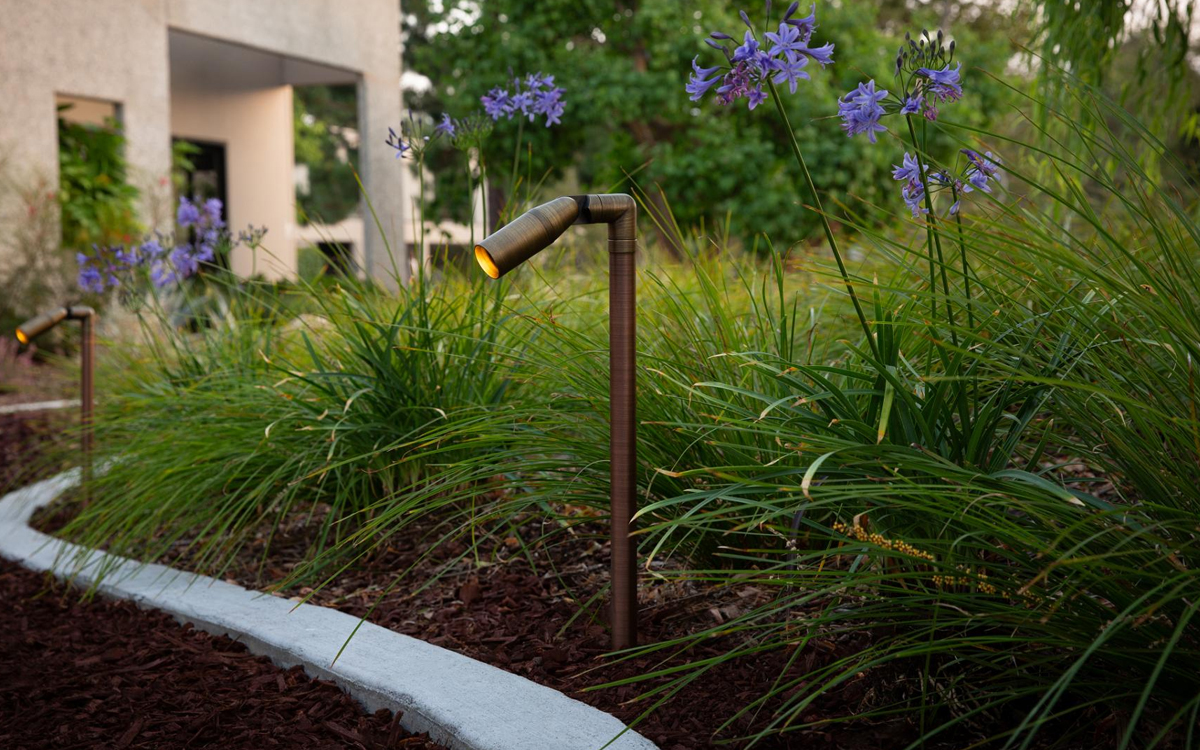

The Pinnacle™ PP-36 is a modern path light that merges the flexibility of an accent fixture with the elegance and functionality of architectural landscape lighting. Crafted from durable brass and copper, it offers exceptional resilience against harsh environments, making it ideal for premium outdoor lighting applications. Engineered to IP67 standards, the PP-36 is built to withstand the elements while maintaining peak performance and aesthetic appeal.
Designed for full adjustability, the fixture includes a compress-and-lock knuckle that allows precise vertical aiming in 9° increments over a 220° range. This enables optimal light placement to enhance the beauty of outdoor areas while improving the safety and visibility of walkways. A 1" straight shroud paired with a preinstalled MR-11 hex louver minimizes glare and contributes to a warm, inviting atmosphere.
The PP-36 utilizes integrated PowerBoard® LED technology and is available in several configurations, including ZD (zoning/dimming) and ZDC (zoning/dimming/color) models compatible with Luxor® Technology. Luxor-enabled models support powerline zoning, smooth PWM dimming, and full RGBW color-changing capabilities, offering precise control and the ability to select from up to 30,000 colors. Input voltage ranges from 10 to 15V AC/DC for standard and ZD models, with 11 to 15V required for ZDC configurations. A remote transformer is required and must be specified separately.
Lumen output varies based on LED configuration, from 110 to 260 lumens, with color temperatures available in 2700K, 3000K, amber (585–595 nm), and full RGBW. Efficacy ranges from 30 to 62 lumens per watt, and the minimum rated life (L70/B10) extends up to 72,000 hours for white light and 55,000 hours for amber. Each unit includes a preinstalled 60° lens and a 35° lens as an accessory, allowing flexible beam control for varied lighting scenarios.
The PP-36 is manufactured in an ISO 9001:2015 certified facility and comes with a 10-year limited warranty. Its brass and stainless steel fasteners ensure long-term durability, and the machined brass housing supports multiple LED types, including 1 LED, 3 LED, and medium ZDC configurations. The lens features OptiClear™ tempered glass for excellent optical clarity and load resistance, while the socket incorporates MoistureBlock™ Technology to prevent moisture intrusion.
A 1.5" Schedule 40 PVC conduit with brass post mount and hex louver is included for secure and stable ground mounting. The fixture wiring includes a 10' (3 m) lead of 18 AWG SPT-1W rated for 300V and 220°F (105°C), with clear lenses provided for standard and ZD models and a frosted lens for ZDC. Available in multiple finishes—including powder coat, natural brass, and antique options—the PP-36 maintains its appearance over time through a TGIC powder-coat layer tested to ASTM outdoor weathering standards.
Designed for both upward and downward installations, the PP-36 is a sustainable lighting solution that blends innovation, efficiency, and long-lasting performance in a compact and aesthetically refined form. It is also compliant with IEC 60598-1 and IEC 60598-2-4 standards when the "E" version is selected.
