ADA Compliant Surface Mount LED Wall Sconce for Nursing Stations, Patient Rooms, Foyers, and Corridors

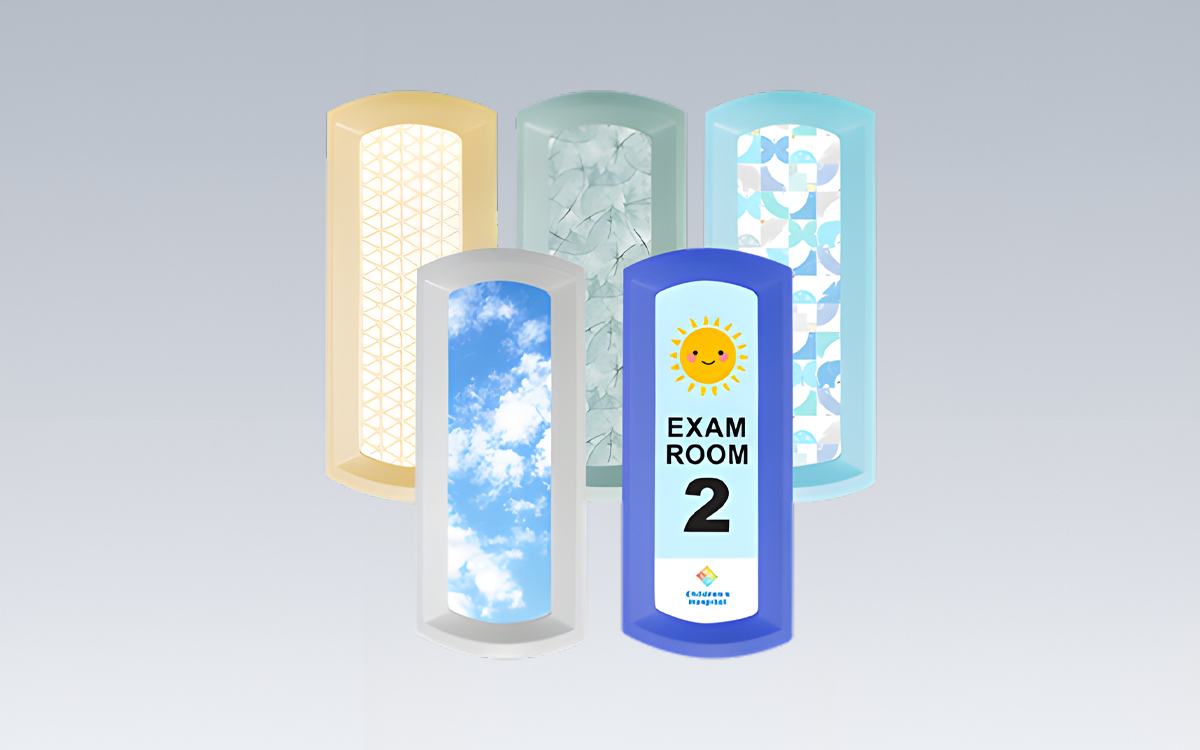

The surface mount LED wall sconce is available in 1', 2', and 3' lengths, providing versatile lighting solutions for a variety of interior spaces such as nursing stations, patient rooms, foyers, and corridors. Its one-piece die-cast aluminum frame houses an edge-lit LED lamp source, offering a sleek and durable design while serving as an effective heat sink for thermal management. For damp location configurations, the sconce incorporates a softly illuminated wall backlight, adding subtle ambient light that enhances safety and visual comfort. The construction meets NSF2 requirements, ensuring the fixture is simple to clean and maintain, and it is also compatible with iMAGINE Series Graphics for customized decorative applications. Optional decorative lenses and color-coordinated custom frames further enhance its aesthetic versatility.

The electrical system of the sconce incorporates a high-brightness LED array with isolated thermal pads to ensure consistent performance and longevity. The LED array maintains a maximum four-step MacAdam ellipse variation and a minimum 80 CRI for accurate color rendering. The fixture operates on 120–277 VAC, 50/60 Hz input and includes a replaceable high-power-factor electronic constant-current driver with less than 20% total harmonic distortion and greater than 0.90 power factor. Standard 0–10V dimming allows for a 10–100% dimming range, and the driver maintains a minimum 85% efficiency. Electromagnetic compatibility meets or exceeds FCC CFR Part 15 standards.

The housing is constructed from marine-grade die-cast aluminum, with the frame itself acting as a thermal management heat sink. The driver enclosure is die-formed and welded aluminum with a TGIC polyester powder coat finish and a five-step pre-treatment, successfully passing a 1,000-hour salt-spray test to ensure long-term durability in demanding environments. Closed-cell gasketing seals all housing interfaces to provide moisture and dust protection. Installation is straightforward, with the frame assembly secured to the mounting plate using a single fastener, and the fixture mounts over a junction box with four-point anchors (hardware by others).

This LED wall sconce is certified to UL standards by Intertek Testing Laboratory for damp locations and is NSF2 Splash/Non-Food Zone compliant. It is ADA compliant and is optionally available with a wet location rating and IP64 protection per IEC 60598. Photometric performance has been tested according to IESNA LM-79 standards by an ILAC/ISO17025 accredited laboratory, ensuring uniform light distribution. The optical system features an internal laser-etched acrylic light guide for even luminance across the edge-lit LED source, paired with a thin-film polycarbonate diffuser that appears white when unlit. Optional decorative lens finishes are internally laminated with a matte outer surface, and damp location products include a softly illuminated wall backlight for added visual appeal and safety.
