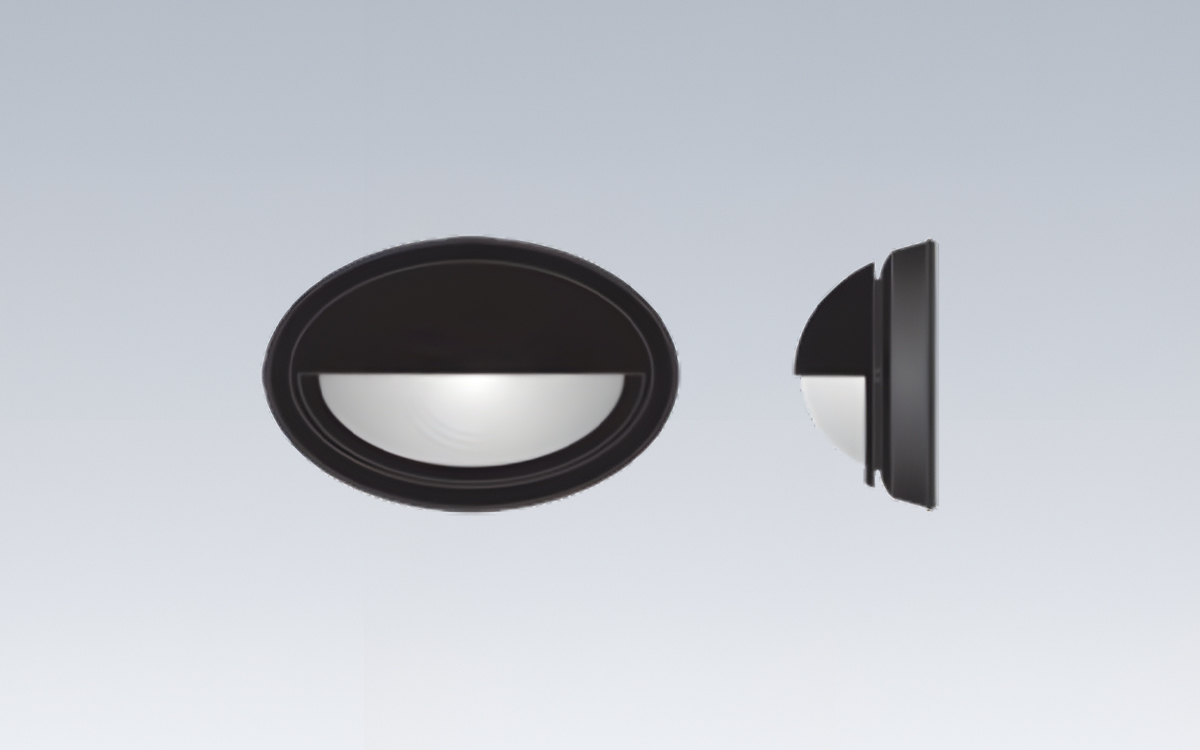

This 13" × 9" horizontal oval wall-mounted LED light with an integrated eyelid is built for high abuse applications where durability, visual comfort, and long-term reliability are paramount. Its compact, low-profile housing allows for a discreet installation that remains ADA compliant, making it ideal for both interior and exterior environments where space and safety are key considerations. The luminaire produces 422 lumens at 14.9 input watts, achieving 33 lumens per watt, and carries the manufacturer’s Peace of Mind Guarantee® against breakage—ensuring dependable performance even under demanding conditions.
The fixture is well suited for environments such as parking garages, multifamily housing, parks, walkways, restrooms, corridors, schools, universities, foyers, lobbies, natatoriums, and exterior entryways. Its pearlescent polycarbonate lens enhances visual comfort by diffusing the LED source evenly while maintaining a pleasing aesthetic in public and architectural settings.
Constructed from marine-grade die-cast aluminum, the baseplate incorporates integral heat sinks and an interlocking flange that wraps around the lens base to maximize moisture resistance and deter tampering. It includes four-point mounting holes, a single wireway opening, and provisions for temporary junction box mounting, ensuring secure and efficient installation. The fixture’s exterior finish consists of a five-stage pre-treated TGIC polyester powder coat, available in standard black, bronze, or white, with optional custom finishes specified upon request.
The internal components include a high-impact injection-molded polycarbonate eyelid, reinforced with internal ribs for strength and durability. The eyelid reduces glare by shielding the lamp from direct viewing angles while softly reflecting light onto surrounding surfaces, ideal for visually comfortable accent or pathway lighting. For additional strength and aesthetic flexibility, optional chemically bonded, impact-resistant finishes such as light gray, silver, or forest green are available.
Electrically, the fixture operates on 120–277VAC at 50/60Hz using a high power factor (>.90 PF) constant-current electronic driver. It supports 0–10V dimming across a 1–100% range with a maximum driver source current of 200 μA, offering precise control over brightness for energy management and occupant comfort. Available LED color temperatures include 3500K, 4000K, and 5000K, all with a color rendering index of 80 CRI to ensure accurate visual representation and consistent color quality.
Sealing performance is ensured by a combination of die-cut, closed-cell neoprene gaskets that adhere to the mounting surface, along with friction-secured closed-cell silicone “O” ring gaskets fitted within gasket channels around the lens base, baseplate, and optional surface adapter. These elements combine to create a durable barrier against moisture and debris intrusion, supporting the fixture’s Wet Location and IP64 rating.
The lens itself is UV-stabilized, injection-molded from virgin polycarbonate with a high-impact resistant structure. Its Blondel fluted design maximizes optical uniformity while obscuring the LED image, ensuring smooth light distribution and aesthetic consistency. The lens and base assemble precisely through close-tolerance injection molding and are secured using concealed captive Torx® fasteners with center pins, preventing unauthorized access and enhancing vandal resistance.
A full reflector with 92% reflectivity is integrated within the fixture to optimize optical performance and ensure efficient light output. All exposed fasteners are stainless steel Torx® with center pins for additional security and corrosion resistance.
This fixture is UL and CUL listed for Wet Location installations, with the certification extending to the optional Emergency Battery Pack (EL) version. It also meets UL standards for IP64 ingress protection and ADA requirements for wall-mounted clearance. Photometric performance is verified according to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. The fixture’s patented construction is protected under U.S. Patent No. 6,042,251, underscoring its unique mechanical and optical design innovations.
