Gotham Lighting

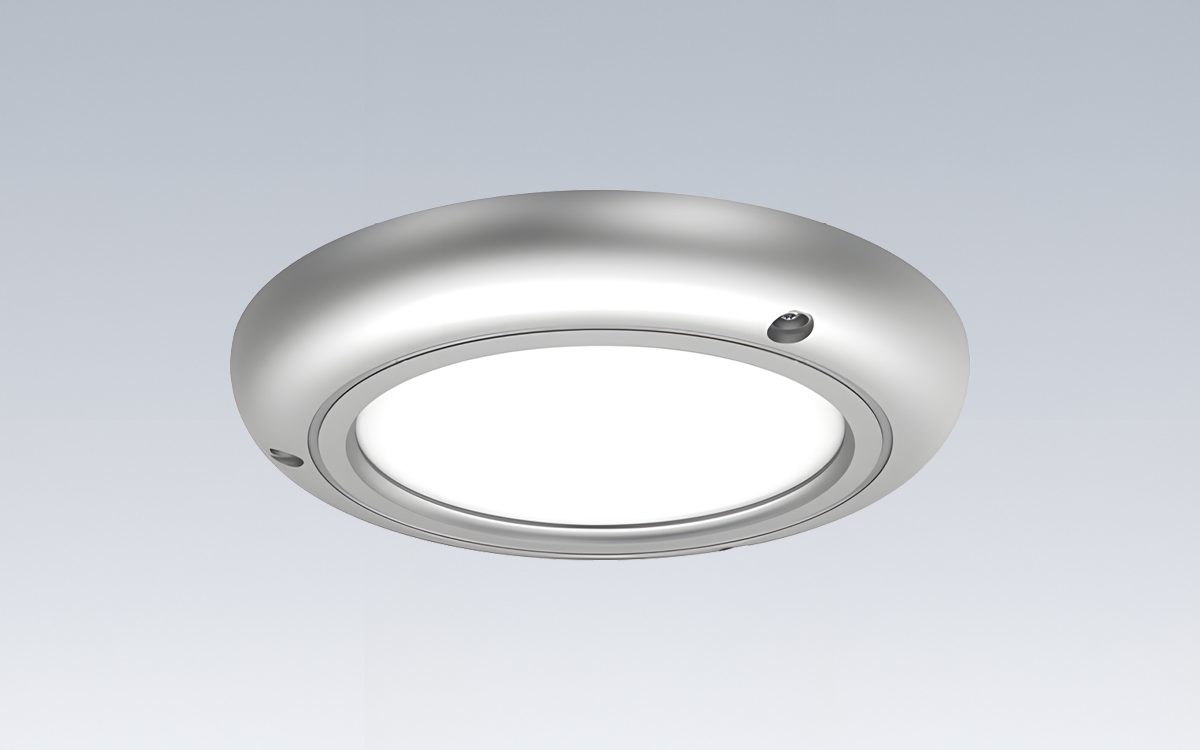

6-Inch Round Vandal Resistant Recessed LED Downlight with 0-10V, DALI, DMX, and Digital Dimming Control

The EVO® 6" Round Vandal Resistant LED Downlight is a robust solution for applications demanding both durability and precise general lighting. Engineered for vandal and tamper resistance, this recessed downlight combines high-quality materials, advanced optics, and versatile controls to meet the needs of commercial, institutional, and specialty spaces. The fixture’s batwing optical distribution ensures a uniform, wide-angled light across horizontal and vertical surfaces, producing smooth edges and a consistent layer of light without hot spots or rings. Cutoff is maintained at 45°, and the open downlight design accommodates very narrow to wide beam angles. Trim options include glass or polycarbonate lenses, allowing for aesthetic and functional customization.

The EVO® 6" Round LED Downlight delivers lumen outputs ranging from 250 to 4,500 lumens, supporting multiple layers of general lighting within a space. Bounding Ray™ technology eliminates flash and improves glare control for comfortable visual environments. The luminaire is CSA listed for wet locations and is rated IP55 standard, with an IP65 rating when silicone is applied during installation. Drivers are available in up to ten options, including 0-10V, DALI, digital, and DMX protocols, enabling seamless integration with wired or wireless nLight® controls. An optional emergency battery backup is also available, enhancing safety and code compliance.

Constructed for resilience, the housing features marine-grade die-cast aluminum bezels with low-copper alloy composition and stainless steel Torx® T20 tamper-resistant screws. One-piece closed-cell silicone gaskets provide secure sealing against environmental factors, while the optical assembly remains fully serviceable and upgradeable from below the ceiling. The unitized optics mechanically attach the light engine to the lower reflector, ensuring precise optical alignment and consistent beam quality over the fixture's life. The luminaire operates on a 120–277 VAC line at 50/60 Hz, with a power factor of 90% or greater, and delivers a sound rating of A+ with stable operation under voltage fluctuations.

The EVO® 6" Round Vandal Resistant LED Downlight maintains consistent color quality and lumen output over its operational life. LEDs are binned to 2-step SDCM for accurate color consistency, with options for 85 or 90 CRI. Lumen maintenance is rated at 70% over 60,000 hours, ensuring long-term reliability. Dimming is continuous and flicker-free, meeting ANSI/IES RP-16-10 standards, with available ranges from 100–10%, 100–1%, or 100–0.1% of rated output. eldoLED drivers conform to IEEE P1789 standards, guaranteeing smooth dimming and inaudible performance even in sensitive environments.

The downlight accommodates a variety of ceiling types, including metal, wood, drywall, and suspended grid ceilings. Color finishes are available in Black, Bronze, Clear, Gold, Gray, Pewter, Silver, Wheat, and White, allowing seamless integration into any architectural scheme. Aperture size is 6 inches, and the fixture supports both cone and lensed trim styles. Mounting is recessed, with preinstalled telescopic mounting bars extending from 15” to 32” and 4” vertical adjustment, permitting tool-less adjustments post-installation. The luminaire is suitable for ceilings up to 1½" thick, with standard ambient ratings at 25°C and required clearances of ½" on all sides.

Extensive photometric testing ensures predictable performance, with LEDs tested to LM-80 standards and luminaire measurements verified to IESNA LM-79-08 standards in accredited labs. Lumen output is guaranteed to not decrease by more than 30% over 60,000 operational hours, and color consistency is maintained within 2.5 MacAdam ellipses across fixtures. The EVO® 6" Round Vandal Resistant LED Downlight is ideal for behavioral health, confinement, education, transportation, sports, and recreation applications, providing a robust, reliable, and visually consistent solution for demanding environments.

https://gothamlighting.acuitybrands.com/products/detail/1657547/gotham-lighting/evor-6-round-vandal-resistant/general-illumination-led-downlight-for-vandal-and-tamper-resistance
Click to expand...
Splendor
  • Round 6-Inch Vandal Resistant Recessed LED Downlight with Batwing Optical Design and Smooth Horizontal and Vertical Coverage
  • Recessed 6-Inch Round Vandal Resistant LED Downlight with Bounding Ray Technology and 45-Degree Cutoff for Glare Control
  • LED 6-Inch Round Vandal Resistant Recessed Downlight with Wet Location Listing and IP55/IP65 Environmental Protection
  • Vandal Resistant 6-Inch Round Recessed LED Downlight with Glass or Polycarbonate Lens and Wide Range of Beam Angles
  • 6-Inch Round LED Downlight with Vandal Resistant Construction and Lumens from 250 to 4,500 with 2.5 SDCM Color Consistency
  • Wet Location Rated 6-Inch Round Vandal Resistant Recessed LED Downlight with 85 or 90 CRI and Multiple CCT Options
  • Recessed 6-Inch Round Vandal Resistant LED Downlight with Bounding Ray Optical System and Feathered Batwing Distribution
  • Round 6-Inch Vandal Resistant LED Downlight with Cone and Lensed Trim Styles for Multiple Ceiling Types
  • LED Recessed Round 6-Inch Vandal Resistant Downlight with Marine-Grade Aluminum Bezel and Stainless Steel Tamper-Resistant Screws
  • 6-Inch Round LED Recessed Downlight with Vandal Resistant Design and Fully Serviceable Lensed LED Light Engine
  • Recessed Round 6-Inch Vandal Resistant LED Downlight with Multiple Powder Coat Finishes for Seamless Architectural Integration
  • 6-Inch Vandal Resistant Round LED Downlight with 0-10V, DALI, DMX, and Digital Dimming Protocol Compatibility
  • Round Recessed 6-Inch LED Downlight with Vandal Resistant Construction and CSA Listing for Wet Locations
  • Vandal Resistant Recessed 6-Inch Round LED Downlight with Tool-Less Telescopic Mounting Bars and Ceiling Adjustment
  • 6-Inch Round Recessed LED Downlight with Batwing Optical Control and Feathered Edges for Smooth Light Layers
  • Round 6-Inch Recessed LED Downlight with Vandal Resistant Bezel, Silicone Gaskets, and IP65 Rated Lens
  • LED Round 6-Inch Recessed Vandal Resistant Downlight with 16-Gauge Galvanized Steel Housing and Adjustable Mounting Bars
  • 6-Inch Round Recessed Vandal Resistant LED Downlight with A+ Sound Rating and Stable Driver Performance Across All Voltages
  • Vandal Resistant 6-Inch Round Recessed LED Downlight with Optional Emergency Battery Backup for Critical Facility Applications
  • Round 6-Inch LED Recessed Downlight with Vandal Resistant Housing and Wide Range of Color Finishes for Design Flexibility
  • 6-Inch Round Recessed LED Downlight with Vandal Resistant Construction, CCT Choices from 2700K to 5000K, and 70% Lumen Maintenance
  • Recessed Round 6-Inch LED Downlight with Batwing Distribution and Top-Down Flash Control for Comfortable Light
  • 6-Inch Round Vandal Resistant LED Downlight with Glass or Polycarbonate Trim and Smooth Horizontal and Vertical Coverage
  • LED Round 6-Inch Recessed Downlight with Vandal Resistant Housing and Preinstalled Telescopic Bars Extending 15 to 32 Inches
  • 6-Inch Round Recessed LED Downlight with Tool-Less Adjustment and Flicker-Free Continuous Dimming to 0.1%
  • Round Recessed 6-Inch LED Downlight with Vandal Resistant Construction and Compatibility with Metal, Wood, Drywall, and Grid Ceilings
  • 6-Inch Round Recessed LED Downlight with Bounding Ray Optical Design and IP55/IP65 Wet Location Rating
  • Vandal Resistant LED 6-Inch Round Recessed Downlight with 45-Degree Cutoff and Round Beam for Superior Optical Alignment
  • Round Recessed 6-Inch LED Downlight with Vandal Resistant Bezel, CSA Certification, and Compliance with US and Canadian Standards
  • 6-Inch Round Recessed LED Downlight with Batwing Optical Distribution and Feathered Edge for Smooth Light Layers
  • Recessed Round 6-Inch LED Downlight with Vandal Resistant Construction, 2.5 SDCM Color Tolerance, and High CRI for Accurate Color
  • LED Round 6-Inch Recessed Downlight with Vandal Resistant Housing and Electrical Compatibility Across Multiple Voltages
  • 6-Inch Round Recessed LED Downlight with Vandal Resistant Construction and Fully Serviceable LED Light Engine for Long-Term Maintenance
  • Round 6-Inch LED Recessed Downlight with Vandal Resistant Housing and Cone or Lensed Trim Options
  • 6-Inch Round Recessed LED Downlight with Marine-Grade Aluminum Housing, Low-Copper Alloy, and Extreme Durability
  • Round Recessed 6-Inch LED Downlight with Vandal Resistant Tamper-Resistant Screws and Silicone Gaskets for Safety
  • LED 6-Inch Round Recessed Downlight with Vandal Resistant Bounding Ray Optics and 70% Lumen Maintenance Over 60,000 Hours
  • 6-Inch Round Recessed LED Downlight with Vandal Resistant Housing and nLight Wired or Wireless Control Compatibility
  • Round Recessed 6-Inch LED Downlight with Vandal Resistant Housing and Multiple Dimming Protocols Including Digital, DMX, and Forward Phase
  • 6-Inch Round Recessed LED Downlight with Vandal Resistant Construction and Smooth Batwing Distribution for Consistent Light Across Surfaces
