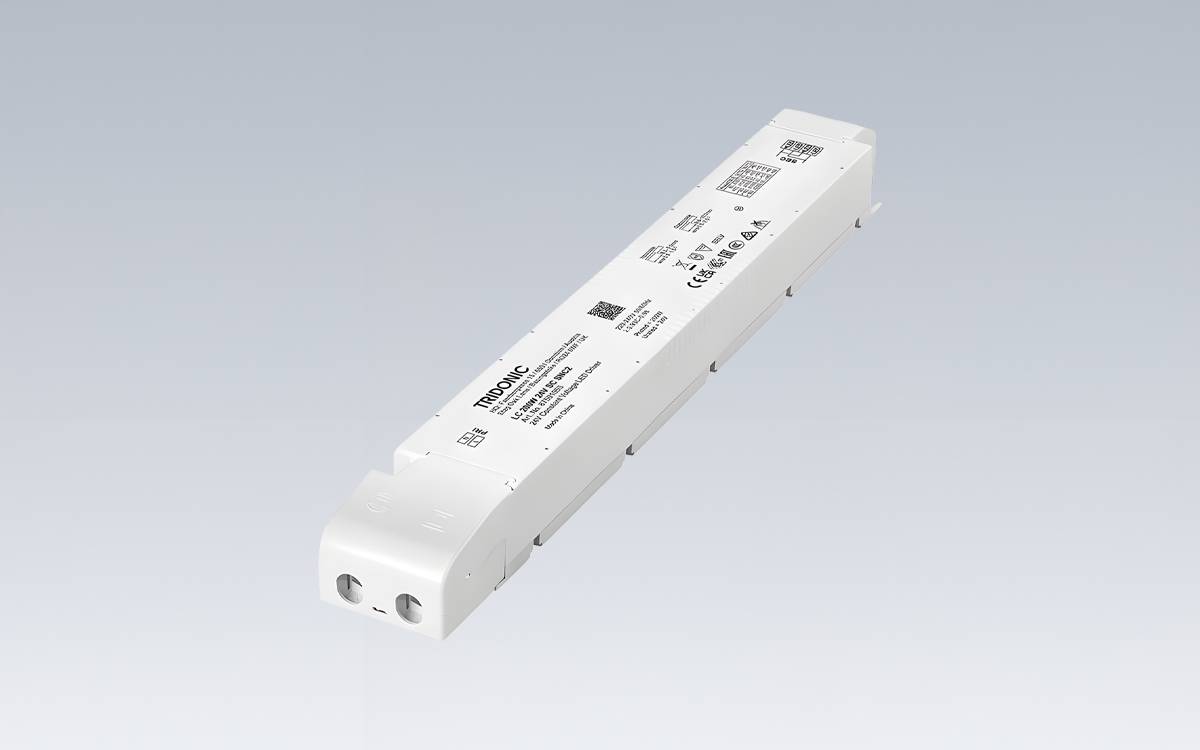

The constant voltage LED driver provides a reliable solution for a variety of indoor and commercial lighting applications, delivering a stable output voltage of 24 V and a maximum output power of 200 W. It is dimmable through external PWM LED dimmers connected on the output side, making it suitable for dynamic lighting setups. The driver is compatible with luminaires of protection class I and protection class II, and its strain relief is included in both packaging variants, with single-packaged drivers receiving individual protective packaging. The driver is rated for a nominal lifetime of up to 50,000 hours, ensuring long-term reliability and consistent performance.
This LED driver is ideally suited for cove lighting, facade accent lighting, ceiling integration, and refrigerated display applications, where consistent voltage output and precise dimming control are required. Its small form factor, measuring 325 x 43 x 30 mm, allows for integration into constrained spaces while maintaining a compact footprint. The stretched-compact strain relief ensures secure wiring, and push terminals simplify installation. The output low-frequency voltage ripple is maintained below ±1.5% at frequencies under 120 Hz, and power input on stand-by remains under 0.5 W, minimizing energy draw during inactivity.
In system solutions, the driver is compatible with Tridonic LLE-FLEX ADV G2 modules in 600, 1,200, and 1,800 lm/m configurations, as well as LLE-FLEX EXC modules in 600, 1,200, 1,800, and 2,500 lm/m configurations, when used in conjunction with Flex accessories and PCB wire connections. It operates on a rated supply voltage of 220–240 V, with an AC voltage range of 198–264 V and a mains frequency of 50/60 Hz. Overvoltage protection up to 320 V AC for one hour safeguards the driver against voltage fluctuations. At full load, the typical rated current is 950 mA, with no-load input current below 87 mA and an in-rush current of 98 A lasting 112 µs. Maximum input power reaches 216 W, and typical efficiency at full load is 92.5%, with a power factor (λ) ranging from 0.93 to 0.98 across the full operating range. Total harmonic distortion (THD) is maintained below 10%, with starting and turn-off times under 0.5 seconds, and no hold-on time at power failure.
The driver maintains precise output voltage tolerance of ±1 V, with low-frequency voltage ripple below ±1.5%. Output performance metrics include P_ST_LM ≤ 1 and SVM ≤ 0.4 at full load, with a maximum output voltage of 25 V. Surge protection includes mains surge capability of 1 kV between L-N, 2 kV between L/N-PE, and a burst capability of 1 kV. Its IP20-rated casing ensures protection in standard indoor environments, with dimensions of 325 mm length, 43 mm width, and 30 mm height. The constant voltage LED driver is built for longevity and reliability, with a nominal lifetime of up to 50,000 hours and a 5-year manufacturer guarantee.
