ILP (Industrial Lighting Products)

Experience enhanced illumination and energy savings without sacrificing aesthetics with Discovery. Packed with innovative design features, Discovery is the epitome of versatility.

Hear about our newest BAA compliant, specification grade strip from Product Manager Jake Wiggins, and learn more by visiting our website!

Features

• Highly Configurable BAA Spec Grade Strip Luminaire
• Sleek injection-molded endcap design
  • Decorative No Knockout end cap option
• No visible fasteners providing a smooth uninterrupted design
• Precision Designed Low UGR Curved & Flat Frosted Acrylic Lens options
• High Performance Narrow or Wide Distribution Optics
• White (Std.) and optional Black, Silver, or Custom Finishes
• Sleek Integrated Wireless Grouping Control Options
• Surface, Cable, Suspension, Pendant, & Wall Mounting Options
• Asymmetrical & Symmetrical White Reflector Options
• 2ft, 4ft & 8ft Lengths available
• 18 Lumen Packages Ranging 2,000L – 20,000L
• Standard Efficacy (SE) and High Efficacy (HE) Lumen Packages
• 3000K, 3500K, 4000K, and 5000K CCT options available
• 80 or 90 CRI
• 120-277V & 347V 0-10V, Bi-Level & Line Voltage Driver Options
  • 0-10V Dimmable Driver (100% -10%)
• L90>54,000 hrs
• -4°F to 122◦F Ambient Temperature Range
• 5 Year Warranty (std); 10 Year Warranty Optional
• ETL Listed for Dry and Damp Locations

Applications

• Education
• Offices
• Storage Facility
• Garages
• Retail
• Hallways
• Warehouses or Distribution Centers
• Grocery Store
• Healthcare

Unlock energy savings and elevated illumination when you upgrade to ILP’s newest addition to the Viewpoint family - the Viewpoint Wall Pack. Lumen and CCT selectable, the Viewpoint Wall Pack luminaire offers a versatile, attractive and economical solution all while belonging to one cohesive product family.

Features

• Architectural Wedge die-cast aluminum housing
• Bronze polyester powder coat finish (std.)
• Custom and factory select colors available
• Full Cutoff Type III & Type IV Distributions
• 3,000 – 14,000 Delivered Lumens with up to 147 LPW
• 3000K, 4000K & 5000K CCT Selectable via Integral selector
• Lumen Selectable – 3 lumen levels per SKU
• 120–277V Universal Voltage or 347–480V High Voltage
• 0–10V Dimmable Driver (std.)
• 6kV Surge protection
• >70 Color Rendering Index (CRI)
• Calculated L70 >100,000 hrs @ 25°C per TM-21-11
• Operating Ambient Temperature: -40°C to +40°C (-40°F to 104°F)
• Bluetooth Programmable PIR Occupancy, Photocell, & Bi-Level Dimming Sensors Available
• Three ½” coin plugs on sides for conduit or electronic photocell
• Battery backup & cold weather battery options available
• IP65 Rated Luminaire
• IDA Dark Sky Compliant; 3000K is IDA Listed
• 5 Year Warranty; 10 Year Optional Warranty
• ETL Listed for Wet Locations
• DesignLights Consortium® Premium Qualified Luminaire

Applications

• Exterior Wall Lighting
• Building Entrances
• Pedestrian Walkways
• Multi-use Facilities
• Industrial Facilities
• Parking Lots
• Storage Facilities
• Institutions
• Education
• Multi-Family
• Retail
• Office

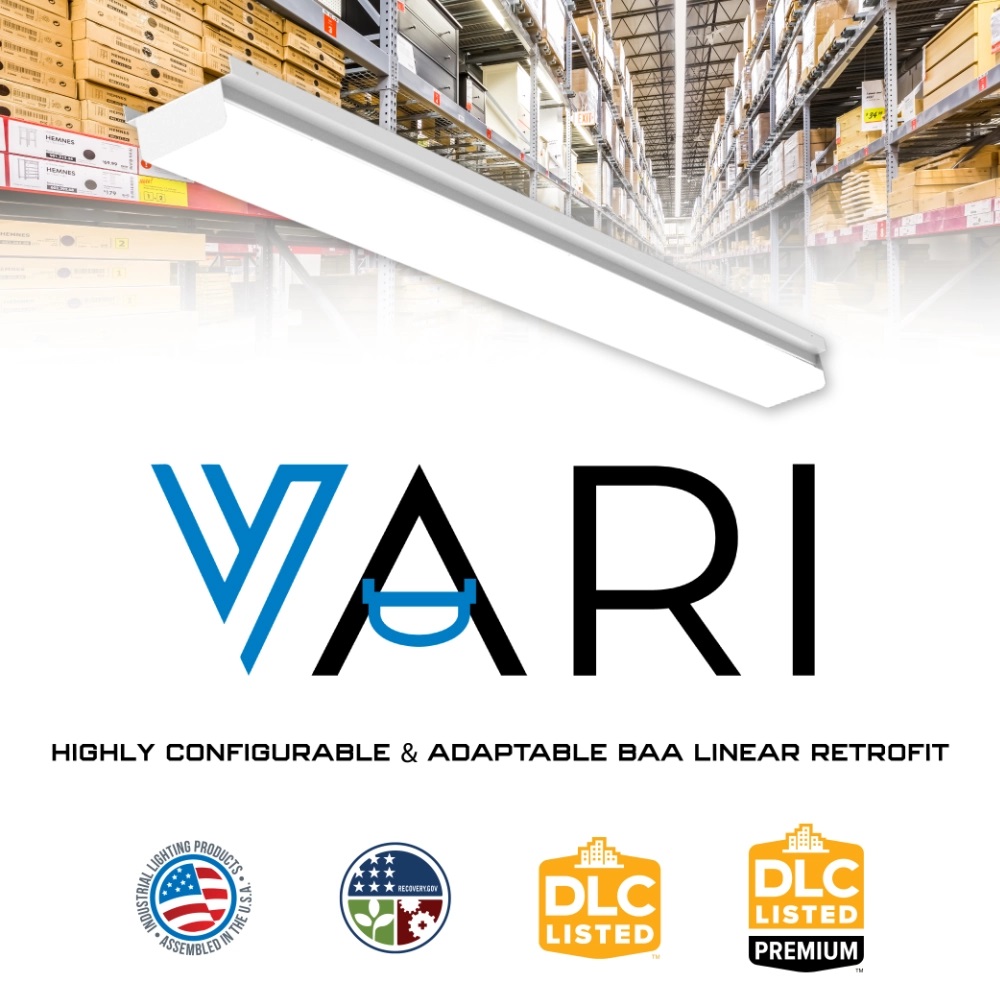

Experience the power of variety with ILP’s highly configurable and adaptable Linear Retrofit, VARI. With three different mounting types and the option of a curved or flat frosted acrylic lens, you can upgrade your former lighting configuration for a more modern and energy efficient solution.

This innovative lighting solution is available in two convenient lengths of 4ft or 8ft and spans from 2,000 – 12,000 lumens. VARI also provides elevated efficiency of up to 180 lm/W so you can tailor your lighting to meet the exact specifications for your space.

Features

• Highly Configurable & Adaptable BAA Linear Retrofit
• Three Mounting Types – Strip, Surface, and Low Bay
• Strip Mounting Type Available with Fixed 4.3” & 5.0”, Adjustable 2.8” to 5.5”, and Custom Width Channel Options
• 4ft & 8ft Lengths Available
• 8 Lumen Packages Ranging 2,000 – 12,000
• 3500K, 4000K, 5000K CCT Options
• Exceptionally High Efficiency Up to 180 lm/W
• Precision Designed Curved & Flat Frosted Acrylic Lens Options
• Pair with Integrated Wireless Grouping Controls Options to Maximize Energy Savings
• 120-277V 0-10V, Bi-Level, and Line Voltage Driver Options
• Calculated L70 > 100,000 Hours
• -40°F Up to 123°F Ambient Temperature Range
• ETL Listed for Dry and Damp Locations
• 5 Year Warranty (Standard); 10 Year Warranty Optional
• DesignLights Consortium® Premium Qualified Luminaire
