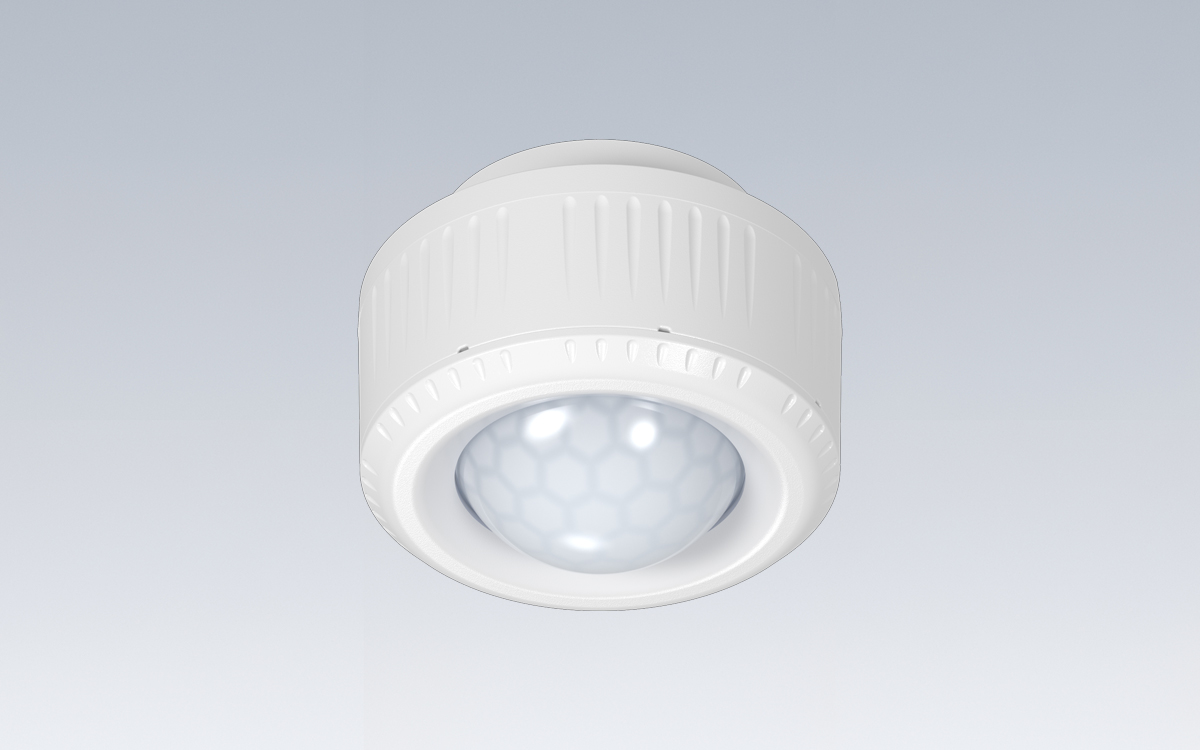

The PIR Z10 fixture-mounted sensor is a precision motion detection device that utilizes digital PIR Motion Detector Architecture combined with passive infrared (PIR) technology, offering enhanced coverage specifically optimized for fixture-mounted applications. It can be configured either as a standard occupancy sensor or as a combined occupancy and daylight sensor, providing flexible functionality for a variety of indoor lighting control scenarios. By integrating advanced PIR sensing technology, the Z10 sensor ensures accurate detection of movement within its coverage area, enabling responsive control of connected lighting systems.
The sensor operates on a 12–24VDC input and draws a minimal 50mA of current, making it compatible with a wide range of low-voltage lighting systems. Its design allows for mounting heights of up to 40 feet (12.2 meters) and provides a maximum detection radius of 30 feet (9.1 meters), delivering reliable performance across medium to large interior spaces. The PIR Z10 is intended for indoor use only, and its operating temperature range spans from 40°F to 140°F (-20°C to 60°C), supporting stable functionality in diverse environmental conditions. Compact in size, the sensor measures just 2.17 inches in diameter (55 mm) and is compatible with ZHAGA Z10 mounting interfaces, allowing easy integration into standard fixture designs.
As a Bluetooth® Mesh Qualified device, the PIR Z10 sensor can be seamlessly integrated into modern wireless lighting networks. It includes a visible LED motion indicator for instant visual confirmation of activity detection, enhancing usability for installers and end users alike. The sensor is available with either white or black trim to complement a variety of fixture aesthetics. End users have full control over settings such as time delays, light level sensitivity, and sensor range through the BubblyNet App, enabling precise customization of occupancy and daylight sensing behavior to match specific application requirements. The PIR Z10 sensor carries a five-year warranty, reflecting its reliability and suitability for long-term use in indoor lighting control systems.
