ECORAYS represents one of AEC ILLUMINAZIONE’s most adaptable and forward-thinking lighting systems, purpose-built for modern urban environments. As a Zhaga D4i certified post top LED street light, ECORAYS ensures full compatibility with standardized smart lighting interfaces, allowing cities to implement future-ready control solutions with ease. This certification guarantees interoperability between luminaires and connected control nodes, giving municipalities, installers, and planners the freedom to choose open, upgradable technologies that support long-term sustainability and flexibility.

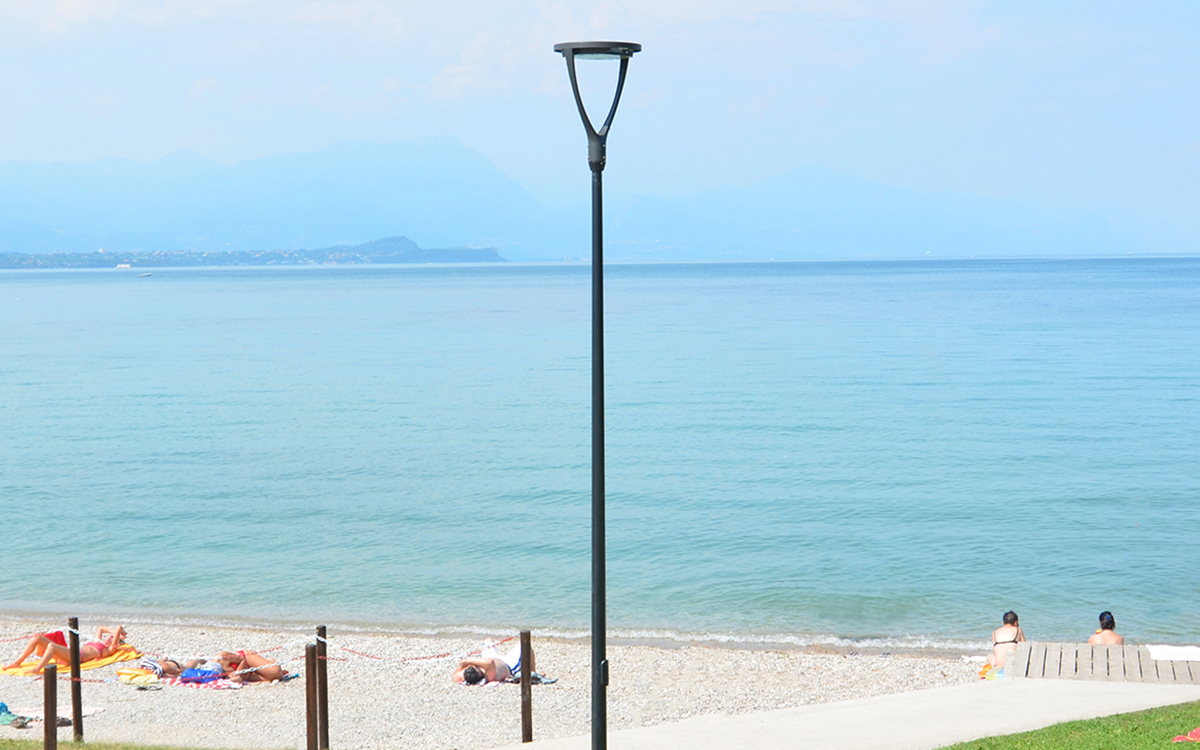

Available in pole-top, bracket, suspension, and outstretched configurations, ECORAYS seamlessly integrates into a wide range of architectural and environmental contexts, from historic city streets to contemporary civic spaces. Its sleek, balanced design complements both traditional and modern urban furniture, establishing visual coherence across diverse public areas.
At the heart of ECORAYS lies AEC’s new generation Pentha LED modules, which deliver improved performance and greater sustainability. These modules represent a technological step forward in efficiency and optical precision, ensuring uniform light distribution with minimal energy use. The system’s high visual comfort and glare control enhance the overall perception of safety and well-being, encouraging people to experience public spaces comfortably at any hour.
AEC’s optical expertise gives ECORAYS a complete selection of optical distributions to address different urban applications, including narrow streets, wide roads, suburban areas, cycle paths, and green spaces. Multiple optics—such as asymmetrical and symmetrical configurations—ensure precise lighting tailored to environmental needs and roadway geometries, while maintaining uniformity and visual comfort.
The fixture supports color temperatures ranging from 4000K to 2200K, allowing for versatile application in both functional and decorative lighting scenarios. With a CRI of ≥70, LED source efficiency of 185 lm/W, and a photobiological safety class of Exempt Group, ECORAYS guarantees consistent visual quality and reliability across installations. Its construction is defined by die-cast aluminum (UNI EN1706) with a durable powder-coated finish, ensuring long-lasting resistance to weathering and corrosion. A flat tempered glass screen with 5mm thickness provides high transparency and protection, while the entire housing achieves an IP66 ingress protection and IK08 impact resistance rating.
For technical robustness, ECORAYS is equipped with a removable gear tray and LED module design, enabling easy maintenance and replacement. It operates within a temperature range of -40°C to +50°C and supports a rated voltage of 220–240V at 50/60Hz, with a power factor greater than 0.9. Enhanced electrical protection is ensured through built-in or optional surge protection devices (SPD) up to 12kV, with advanced configurations featuring LED signal indicators and thermo-fuse disconnection at end of life.
In terms of lighting control and smart connectivity, ECORAYS supports a comprehensive suite of options. These include fixed-power configurations, automatic dimming (DA and DAC profiles), constant light flux (FLC) functionality, and digital DALI dimming for precision control. The inclusion of NEMA 7-pin and Zhaga 4-pin sockets ensures seamless integration with modern control nodes, wireless communication systems, and adaptive lighting networks. This level of flexibility allows cities to optimize performance, adjust brightness dynamically, and implement remote monitoring for greater operational efficiency.
ECORAYS thus embodies the balance between architectural elegance, technological innovation, and environmental responsibility. Whether illuminating residential streets, urban parks, cycle paths, or historic districts, it enhances both the aesthetic and functional character of public spaces. Through its sustainable construction, optical precision, and smart lighting control compatibility, ECORAYS empowers cities to evolve toward more connected, comfortable, and future-ready environments.
