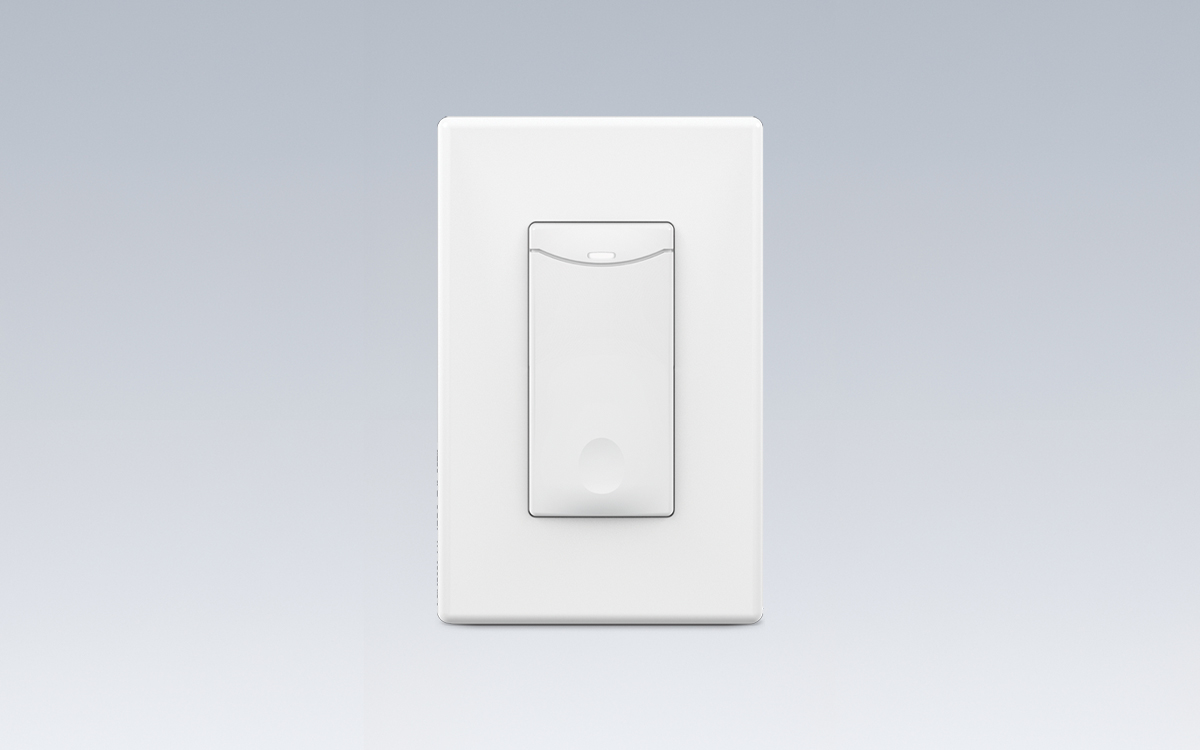

The SENSORWORX wireless wall switch is a compact and efficient control solution that wirelessly links to remote occupancy sensors, photocells, and wall switches to provide automatic lighting control without the need for low-voltage wiring. Built with contractor convenience in mind, this wall switch is notably shallower than standard models, reducing wall box congestion and making installation easier, even in retrofit applications. Its flexible electrical design supports both neutral (three-wire) and no-neutral (two-wire) installations, eliminating the need for a minimum load or external load capacitor. Matching the aesthetic and operational style of the SENSORWORX family of wall switch occupancy sensors and 0–10V dimming controls, this switch combines functionality, durability, and visual consistency across projects. All SENSORWORX products, including this wireless wall switch, are proudly made in the USA.
The wireless wall switch is ideal for a wide range of commercial and institutional spaces, particularly where lighting control flexibility and code compliance are required. In small spaces such as private offices, copy rooms, and restrooms, a single wireless wall switch controller can be paired with a ceiling-mounted wireless occupancy sensor, such as the SWX-201-B. This setup supports both occupancy (auto-on) and vacancy (manual-on) operation modes to satisfy energy code requirements. For medium-sized spaces like conference rooms, classrooms, or break rooms, the switch can be wirelessly connected to a wide-view ceiling sensor, such as the SWX-401-B, to ensure reliable coverage and responsive control. Additional sensors can be linked if greater coverage is needed. Multi-location lighting control, such as 3-way switching, can be achieved by pairing the primary wireless switch controller with a remote wall switch, such as the SWX-852, offering flexible control options for various room layouts.
The wall switch’s electrical design ensures robust and efficient performance under a wide range of conditions. It operates on 120–277 VAC single-phase power at 50 or 60 Hz and supports a broad range of load types, including LED drivers and lamps, compact fluorescent (CFL), electronic or magnetic fluorescent ballasts, and incandescent (tungsten) lighting. The switch is rated for up to 800W at 120 VAC and 1,200W at 277 VAC with no minimum load requirement. Electronically timed switching extends relay life, while full compliance with current leakage and safety regulations ensures reliable long-term operation. Non-volatile memory preserves all user settings even in the event of a power interruption. The device is tested for surge immunity and electrostatic discharge (ESD) resistance, maintaining stable operation without damage or data loss under demanding electrical conditions.
Physically, the SENSORWORX wireless wall switch features a compact and ergonomic design that is 25–40 percent shallower than traditional wall controllers, occupying less than one inch of depth in the wall box. It mounts easily in a standard single-gang electrical box and includes a self-grounding metal strap for safety. The modern, intuitive interface incorporates an easy-tap button and a bi-color LED indicator that glows blue when lights are off, assisting users in locating the switch in dark environments. Measuring 2.74 inches in height, 1.68 inches in width, and 1.39 inches in depth, and weighing only 4.5 ounces, the device blends discreetly into any commercial or institutional setting while maintaining robust functionality.
Operationally, the switch supports multiple configurable modes, including occupancy, vacancy, switch disable, and photocell-based control such as on/off or inhibit modes. Users can select time delay intervals ranging from 1 to 30 minutes, depending on application needs, and adjust settings without removing the wall plate. The switch can wirelessly link with up to 30 compatible devices, including sensors and remote wall stations, in just seconds using a simple push-button process. Communication occurs over the secure 915 MHz ISM band, with encrypted data transmission to protect system integrity. Wireless range extends up to 80 feet line-of-sight and approximately 40 feet through typical obstructions such as walls or floors, providing ample flexibility for most interior environments.
Built for indoor use, the wireless wall switch operates within a temperature range of 32°F to 122°F (0°C to 50°C) and up to 95% non-condensing relative humidity. It is ideal for a variety of commercial applications where reliable, code-compliant, and easily installed lighting control is essential. The product meets ASHRAE 90.1, IECC, and Title 24 energy code requirements, making it an excellent choice for modern lighting projects that demand both performance and regulatory compliance.
