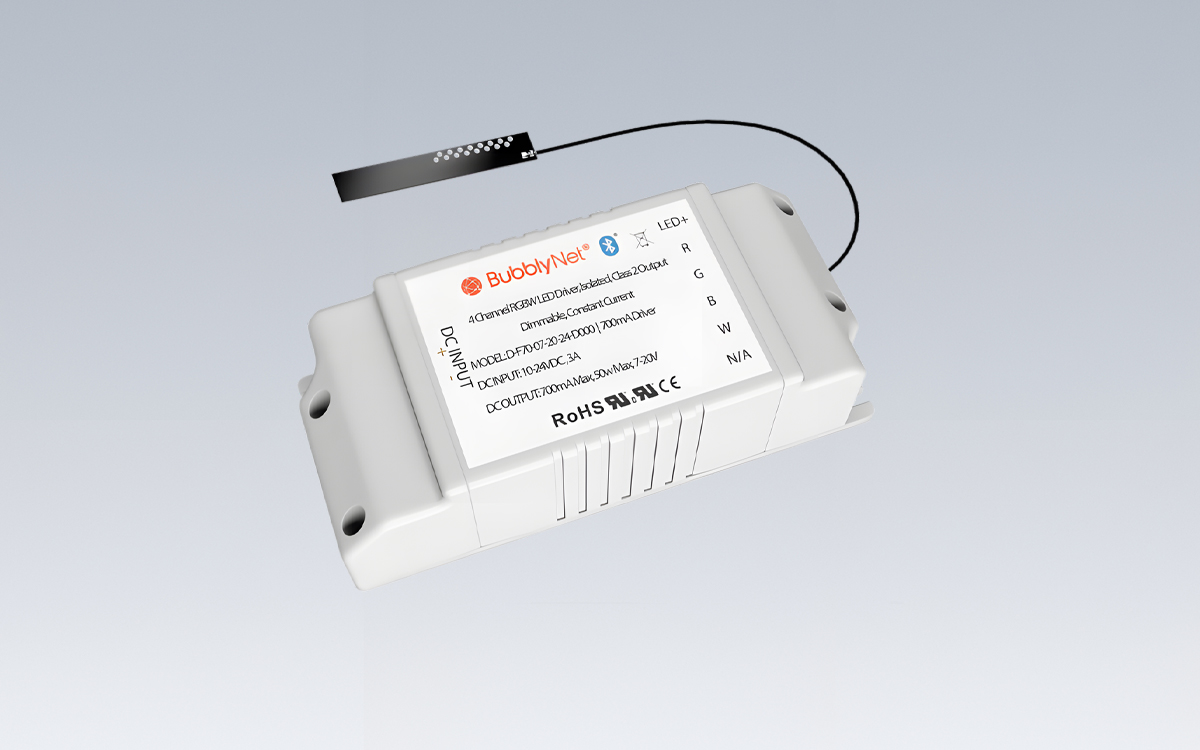

The D-F70-07-20-24-D000 is a 40W four-channel constant current RGBW LED driver that offers wireless control of RGBW fixtures via Bluetooth®, eliminating the need for a gateway. This compact and versatile driver is ideal for both standalone installations and as a central component in complex Bluetooth® Mesh networks. With its four independent channels, it allows precise mixing of multiple light sources for a wide range of RGBW lighting applications, making it a flexible solution for commercial, residential, or architectural projects.
Operating on a 24VDC input, the driver provides a 3–20VDC output with a maximum DC output current of 700mA per channel. The maximum AC input current is rated at 3A. Designed for reliable performance in dry locations, the D-F70-07-20-24-D000 features a Class 2 rating and an IP20 enclosure, suitable for indoor use. The device operates efficiently across a wide temperature range of 19° to 104°F (-10° to 40°C) and includes multiple protection features, including safeguards against overcurrent, short circuits, and overheating, ensuring safe and dependable operation.
Installation is straightforward and user-friendly. The DC input wires are connected to a compatible 24VDC power supply, while the RGBW fixture is connected to the labeled six-position output connector. Once powered, the driver immediately broadcasts a non-provisioned identification code, signaling its readiness for commissioning through the Bubblynet App. Using the app, users can connect to the driver, configure security keys, assign addresses, and input other necessary data so the driver can join the Mesh network. Once integrated, the driver can be configured for data publishing and subscribing, allowing seamless control within the network. For optimal Bluetooth® Mesh performance, it is recommended that the driver be installed within 30 feet of the nearest network device, while metal barriers may reduce signal strength.
The D-F70-07-20-24-D000 supports programmable dimming curves, including soft ON/OFF transitions, as well as configurable maximum output currents for precise lighting control. Its wireless 2.4 GHz connectivity allows smooth and reliable operation of RGBW LED fixtures, while the driver’s compatibility with universal 24VDC power supplies provides flexible integration into existing systems. Compact in size at 4 inches by 1.75 inches by 1.125 inches (102 x 44.5 x 28.6 mm), this quad-channel LED driver combines space efficiency with robust functionality, effectively acting as four drivers in one for RGBW applications.
In summary, the D-F70-07-20-24-D000 is a versatile, reliable, and easy-to-install constant current LED driver that simplifies wireless control of RGBW fixtures. Its combination of Bluetooth® connectivity, programmable dimming, multiple protections, and Mesh network integration makes it an ideal choice for modern lighting projects, whether for individual installations or networked systems.
