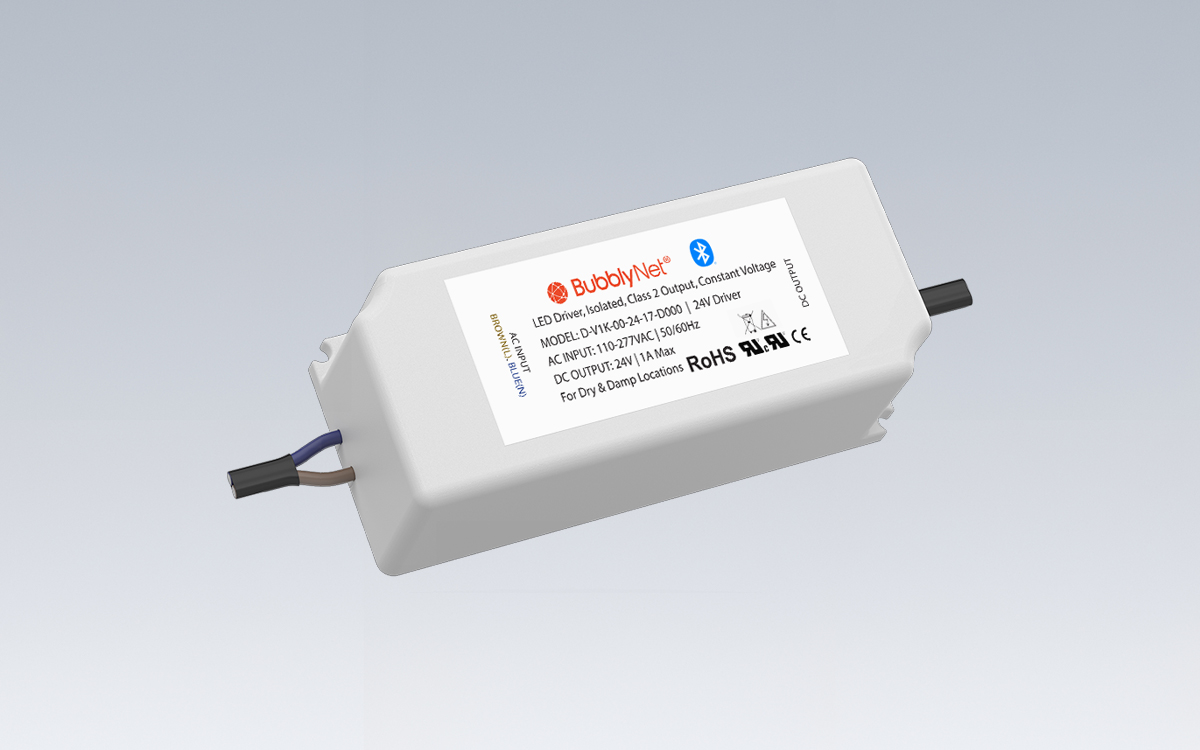

The D-V1K-00-24-17-D000 is a single-channel constant voltage LED driver, optimized for dimming applications in a wide range of 24VDC lighting solutions. It is suitable for LED strips, LED panels, and linear fixtures with power requirements up to 25W, making it a compact and versatile solution for residential, commercial, and architectural lighting projects. Its wireless 2.4 GHz capability allows for seamless integration into Bluetooth® Mesh networks, enabling convenient and flexible lighting control without the need for complex wiring or additional gateways.
The driver accepts an input voltage range of 110–277VAC and delivers a maximum output current of 1,000mA at 24VDC. It is built to operate reliably across temperatures from 14° to 104°F (-10° to 40°C), providing stable performance in a variety of indoor environments. To ensure safe operation, the D-V1K-00-24-17-D000 incorporates multiple protection mechanisms, including safeguards against overcurrent, short circuits, overvoltage, and overheating. The IP20 rating confirms suitability for dry locations, and the unit is available with either a standard housing or an optional metal enclosure for added durability.
Installation of the D-V1K-00-24-17-D000 is straightforward. Once connected to the power source, the device immediately broadcasts a non-provisioned identification code, signaling its readiness for commissioning through the BubblyNet App. Using the app, the new driver can be securely connected to the Mesh network, where security keys, network addresses, and other configuration data are assigned. Once joined to the network, the driver is fully capable of publishing and subscribing data, enabling coordinated control with other networked devices. For optimal performance, devices should be installed within 30 feet of the nearest Mesh-enabled device, as signal strength can be reduced by metal barriers or enclosures.
The D-V1K-00-24-17-D000 offers programmable dimming curves, including soft ON/OFF transitions as well as linear and logarithmic profiles, allowing precise and customizable light output. Compact in size at 3.54 inches by 1.7 inches by 1.36 inches (90 x 43.2 x 34.5 mm), with a housing option of 6 inches by 1.38 inches by 1.89 inches (152.4 x 35 x 48.01 mm), this single-channel LED driver combines space efficiency with robust functionality, providing a reliable solution for both standalone and networked 24VDC LED lighting systems.
